Page 44
Alterations reserved Stand 12/2002
Operating Manual T 700 / T 800.1 - R ENG
5.2.2 Drum
Roller chains:
Use only two roller chains if you process below 68 cm of sheet size.
Place the external chains approximately 5 cm off from the edge of the sheet.

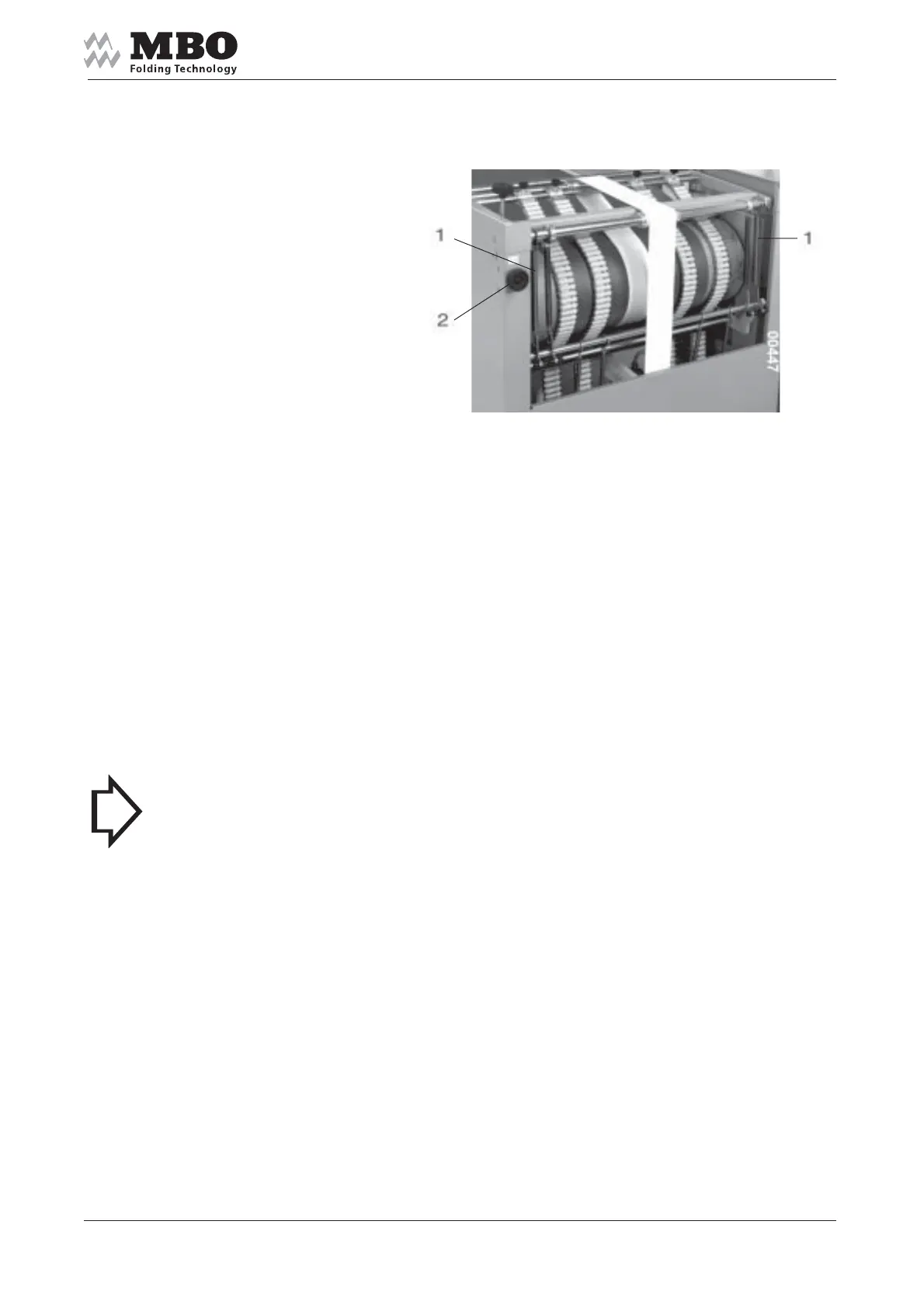

White centre tape:
In case of interruptions of the shingle stream on the lower table decrease the tape tensioning
through the knurled screw 2. Increase the tape tensioning if sheets are overlapping.
A light sagging (distance between the drum and sheets) of 3 cm is normal.
If the shingle stream is interrupted un-hinge one spring 1.
If the sagging is too extensive hinge two springs 1 into the upper latch.
>NOTICE< If the sagging has become too extensive (distance between drum and paper), i.e.
the sagging is not decreased although the springs and the tape have been adjusted intensively it
may become necessary to empty the feeder.
If you re-load the feeder the sagging should not exceed 3 cm.
