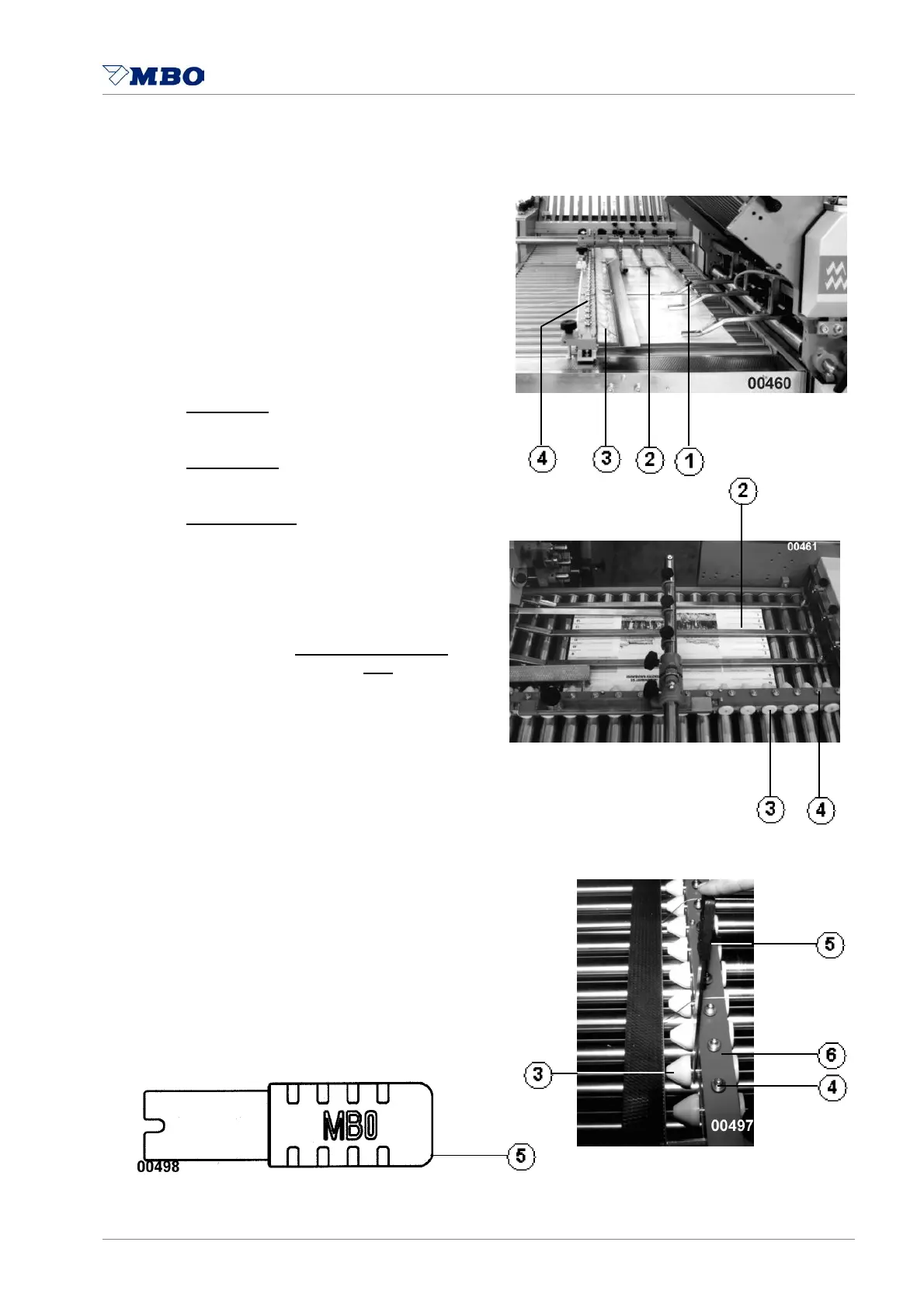

For safe sheet transportation
on the cross carrier:
Height adjustable smoothers 1 and 2
avoid rising of the sheets
during running on the cross-carrier
- safe entering into the foldrollers.
Setting of coned rollers 3 for sheet
transportation of various products:
Light paper: Less pressure -
unscrew the screws 4.
Heavy paper: More pressure -
screw in the screws 4.
Fast production:
Insert screws 4 at the transition area
of the previous folding unit;
it will result in a precise and
fast aligning of the sheets.
Move the coned rollers 3 forward to
the first latch by means of the tool 5
delivered with - also on smooth sheets
and two-up production on one sidelay
(see also item 5.7.12).
The sheets are overtaken earlier and
their speed is reduced, i.e. the bouncing
speed at sidelay 6 is diminished.
Foldrollers, buckle plates,
sheet deflectors, slitter shafts,
perforating, scoring, cutting etc.
- see para’s. 5.6.1 through 5.6.10.
