Operating manual T700/T800.1 - en
Continuation

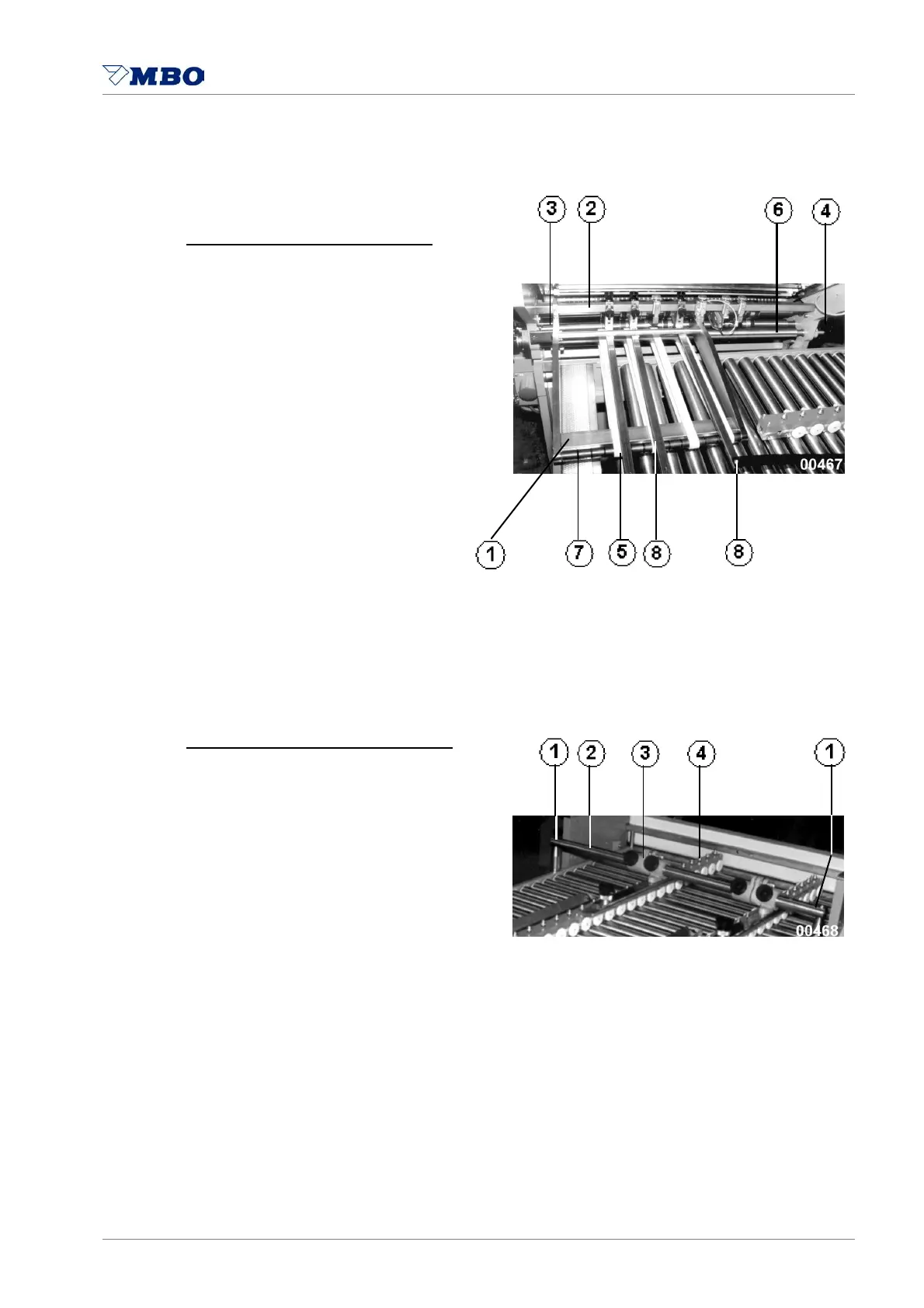

Installation of the conveyor table:
Hook the conveyor table 1 onto the
cross-bar 2, and fasten it with screws.
Screw 3 serves as a sidelay
(is being set by the manufacturer).
Pull off the plug bearing 4 and thread the
tapes 5 into the tape roller 6.
Loosen the screw prior thereto.
Centering of the tape running:
Place the tapes 5 above
the rubber rings 7.
Use smoothers 8.
Installation of the additional sidelay:
Remove both screws 1
at sidelay support 2.
Push the sidelay support 2 through
the holder 3 of the additional sidelay 4.
Refasten the sidelay support 2.
