30 - 4

30.2 Connection Cable

The RS-422 cables for connecting multiple GT11s must be prepared by the user.

The following provides connection diagrams for each cable, connector specifications and other information.

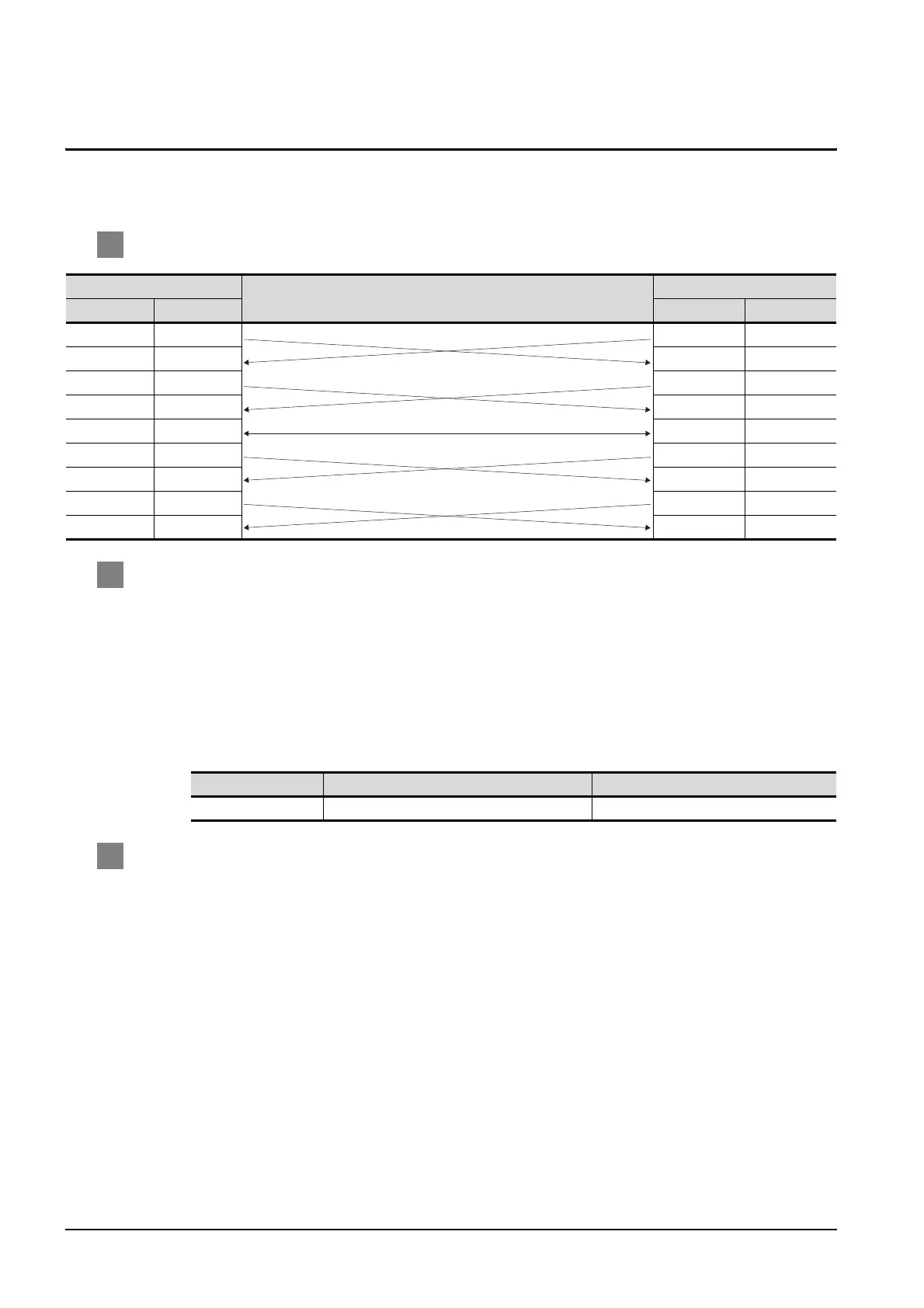

1 Connection diagram

2 Connector specifications

(1) GOT side connector

Use the following as the RS-422 interface connector on the GOT.

For the GOT side of the RS-422 cable, use a connector and connector cover applicable to the GOT

connector.

(a) Connector type

9-pin D-sub (female)

(b) Connector model

3 Precautions when preparing a cable

The length of the RS-422 cable must be 30m or less.

GOT side

Cable connection and signal direction

GOT side

Signal name Pin No. Signal name Pin No.

SDA 1 1SDA

RDA 2 2RDA

RSA 3 3RSA

CSA 4 4CSA

SG 5 5SG

SDB 6 6SDB

RDB 7 7RDB

RSB 8 8RSB

CSB 9 9CSB

GOT Model Manufacturer

GT11 17LE-13090-27(D3AC) DDK Ltd.
