4 - 50
4.4 PLC Side Setting
4.4.3 Connecting computer link module
(e) A2CCPUC24, A2CCPUC24-PRF
• Transmission speed setting (SW11 to SW13)
Set the transmission speed (SW11 to SW13) as follows.
The transmission speed setting must be consistent with that of the GOT side.
For how to set the GOT side transmission speed, refer to the following.
Section 4.3.3 Setting communication interface (Communication settings)
*1 Only transmission speeds available on the GOT side are shown.
(3) Station number setting switch
*2 The station number setting switch in the figure is for the A1SJ71UC24-R4.
When the switch setting has been changed
Turn the PLC CPU OFF then ON again, or reset the PLC CPU.

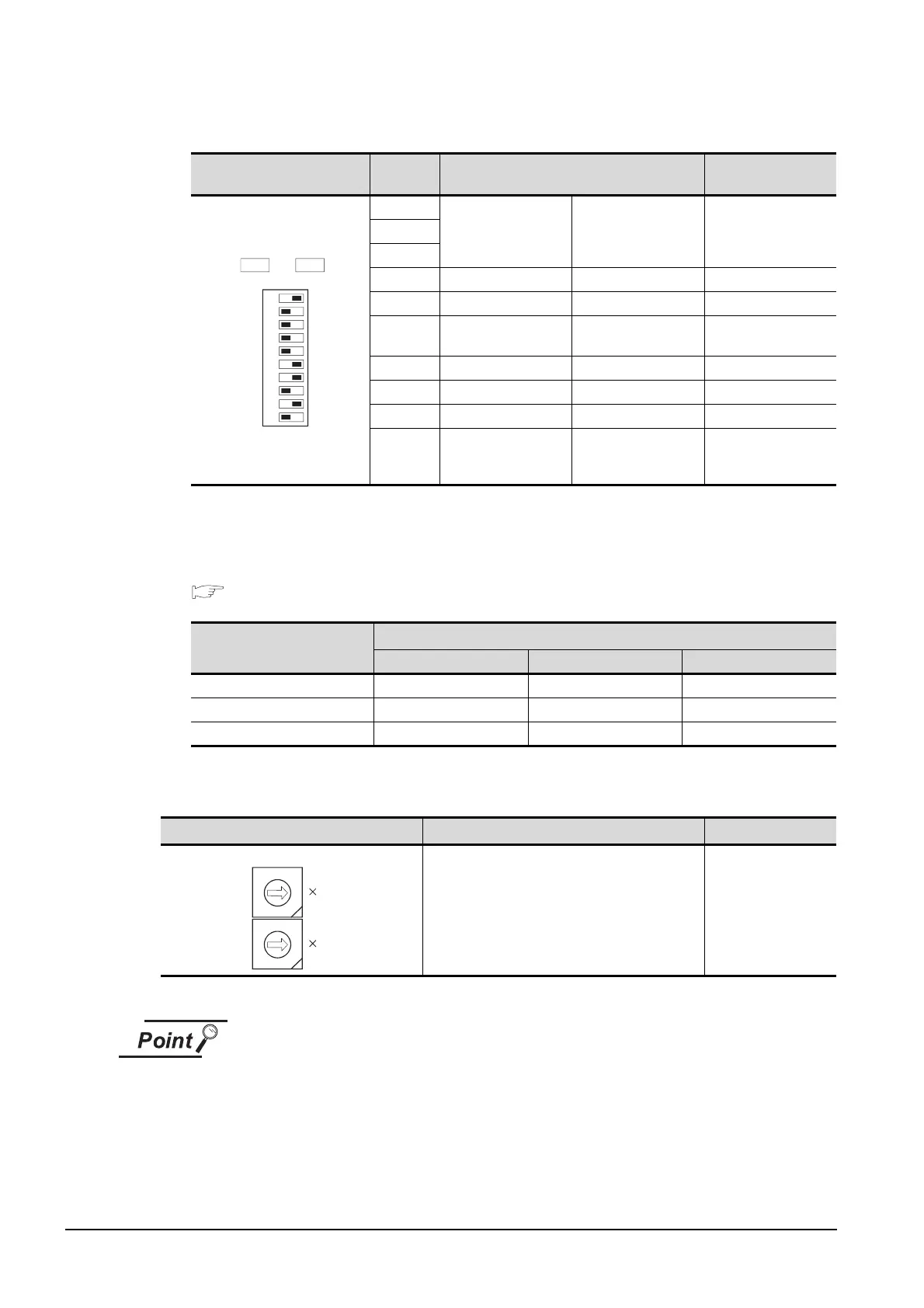

Transmission specifications
switch
Setting
switch
Description Setting
SW11
Transmission speed
setting
(Consistent with the
GOT side
specifications.)
See descriptions
below.
SW12
SW13
SW14 Data bit setting 8 bits ON
SW15 Parity bit setting Set ON
SW16
Even/odd parity
setting
Odd OFF
SW17 Stop bit setting 1 bit OFF
SW18 Sum check setting Set ON
SW19 Main channel setting RS-232 OFF
SW20
Write during RUN
enabled/disabled
setting
Enabled ON
Setting switch
Transmission speed
*1
4800bps 9600bps 19200bps
SW11 OFF ON OFF
SW12 OFF OFF ON
SW13 ON ON ON
Station number setting switch
*2
Description Setting
Set the station number of the computer link module
to which an access is made from the GOT.
0
ON
SW
11
12
13
14
15
16
17
18
19
20
ON
OFF
2
1
0
9
8
7
6
5
4
3
2
1
0
9
8
7
6
5
4
3
10
1
STATION NO.
To Next Page
