Mitsubishi GOT1000 Series User Manual

8 - 34
8.3 PLC Side Setting
8.3.3 Connecting to Ethernet module (A Series)

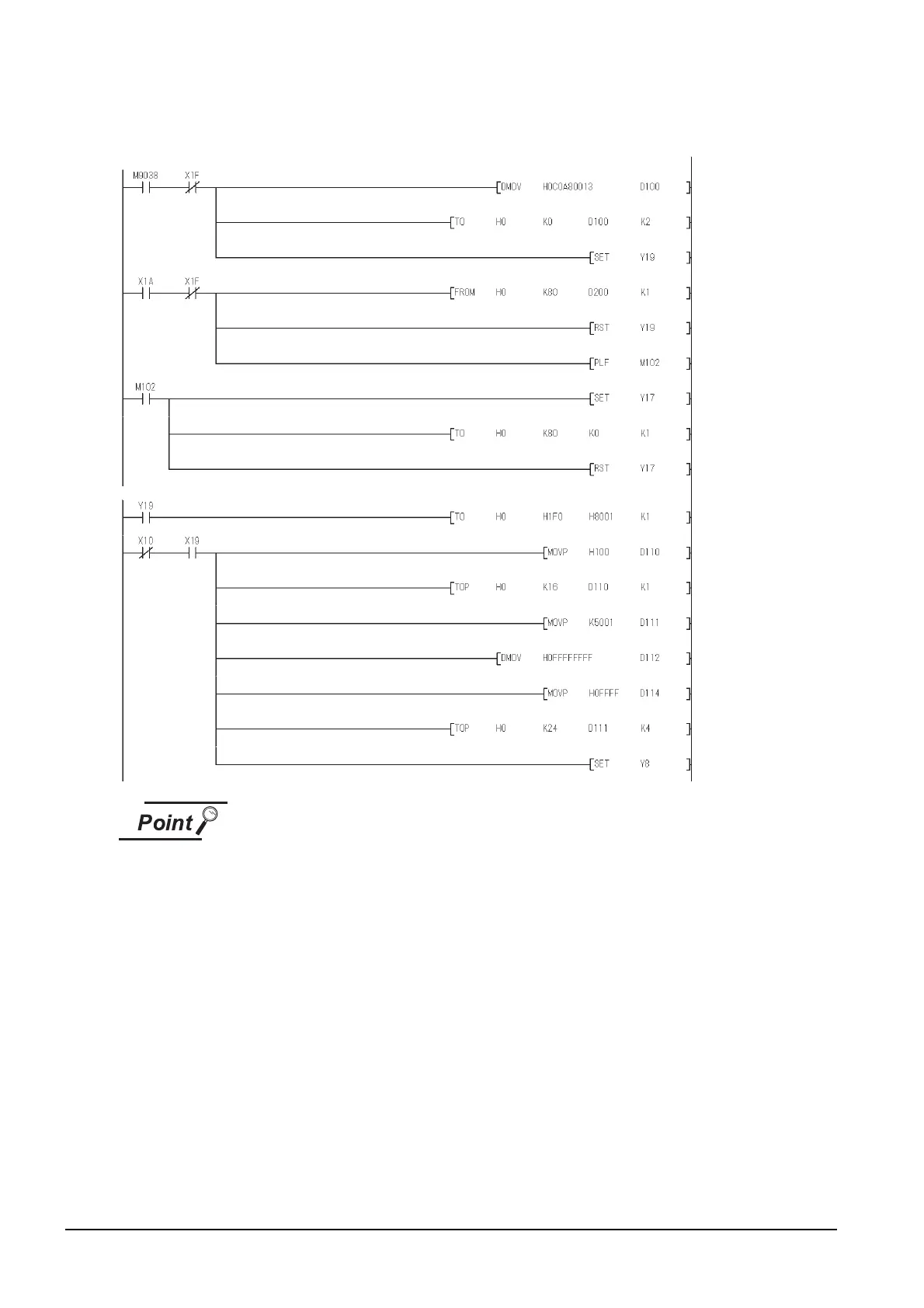

(2) Example of sequence program
When changing the sequence program
After writing the sequence program to the PLC CPU, operate the PLC CPU ether
turning OFF and then ON or resetting.
IP address of Ethernet
module(192.168.0.19)
Initial request
COM. ERR turned off request
Clear the initial fault code.
Set to the permit of
communication while stopping
the PLC CPU.
Communication
format(UDP/IP)
Port No. of Ethernet
module(5001)
IP address of GOT
(When GOT is used, FFFFFFFF
H)
Port No. of GOT
(When GOT is used, FFFF
H)
Read the initial fault code.
Request to open
Normal
completed
initial
No. 1
open
completed
Initial request
COM.
ERR
turned off
command
Initial
fault
detection
WDT ERR
detection
Turned on
at first scan
only while
running
WDT
ERR
detection
* Initial processing
* Opening processing of communication line

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
