1.2 Overall System Configurations
1 - 11
1
OVERVIEW
2
BUS CONNECTION
3
DIRECT CONNECTION TO CPU
4
COMPUTER LINK CONNECTION
5
MELSECNET/10 CONNECTION (PLC TO PLC NETWORK)
6
CC-Link CONNECTION (INTELLIGENT DEVICE STATION)
7
CC-Link CONNECTION (Via G4)
8
ETHERNET CONNECTION
Third party PLC connections
( Chapter 9 to Chapter 18)

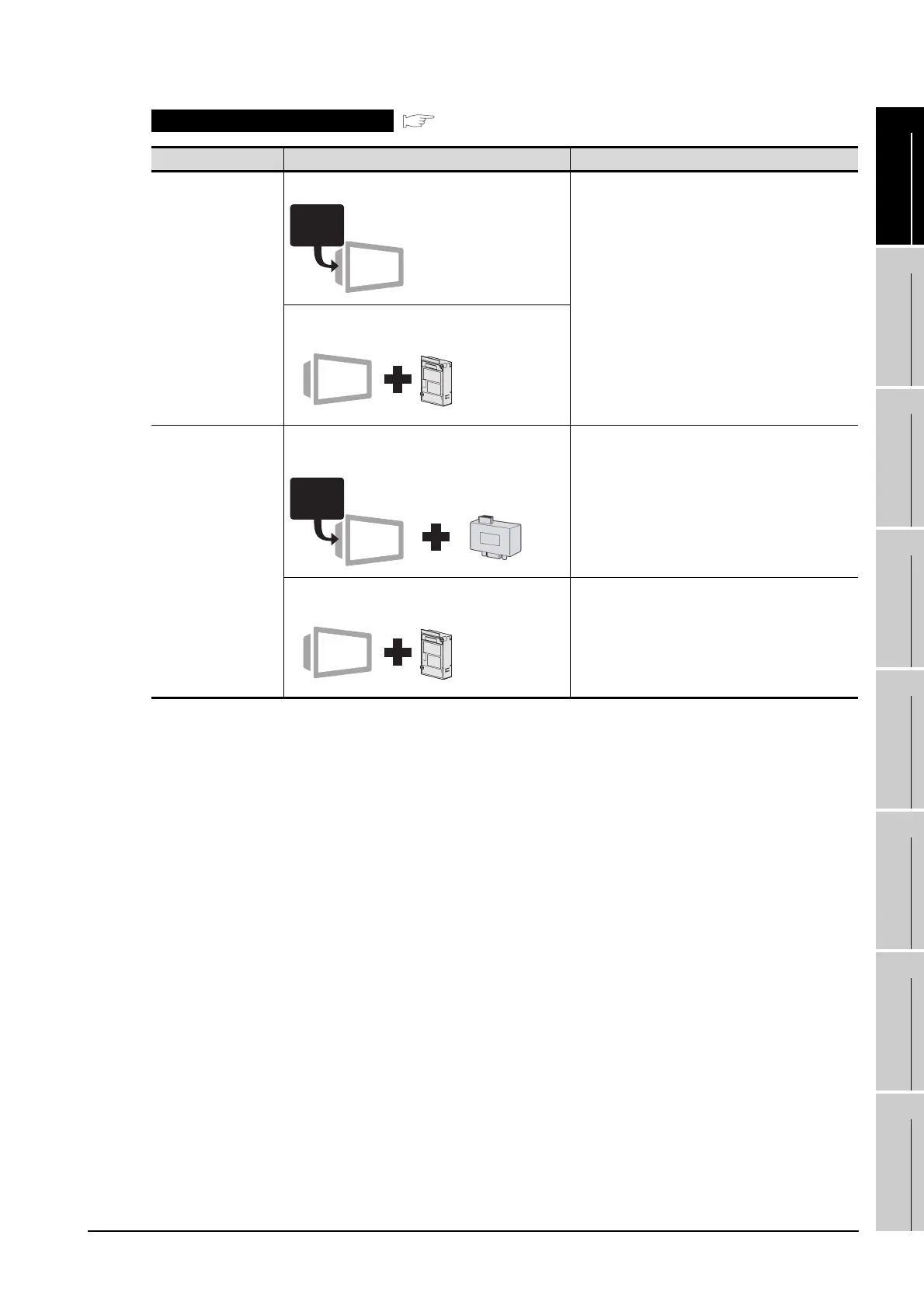

Communication Type Communication Interface on GOT Side Connected to
RS-232
communication
Built in GT15 body • OMRON PLC
• KEYENCE PLC
•SHARP PLC
•TOSHIBA PLC
• HITACHI PLC
• MATSUSITA PLC
• YASKAWA PLC
• YOKOGAWA PLC
• Allen-Bradley PLC
• SIEMENS PLC
RS-232 Communication Unit
• GT15-RS2-9P
RS-422
communication
RS-422 conversion unit
• GT15-RS2T4-9P
•OMRON PLC
• KEYENCE PLC
•SHARP PLC
•TOSHIBA PLC
• HITACHI PLC
• YASKAWA PLC
• YOKOGAWA PLC
RS-422/485 Communication Unit
• GT15-RS4-9S
•
RS-232
RS-232

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
