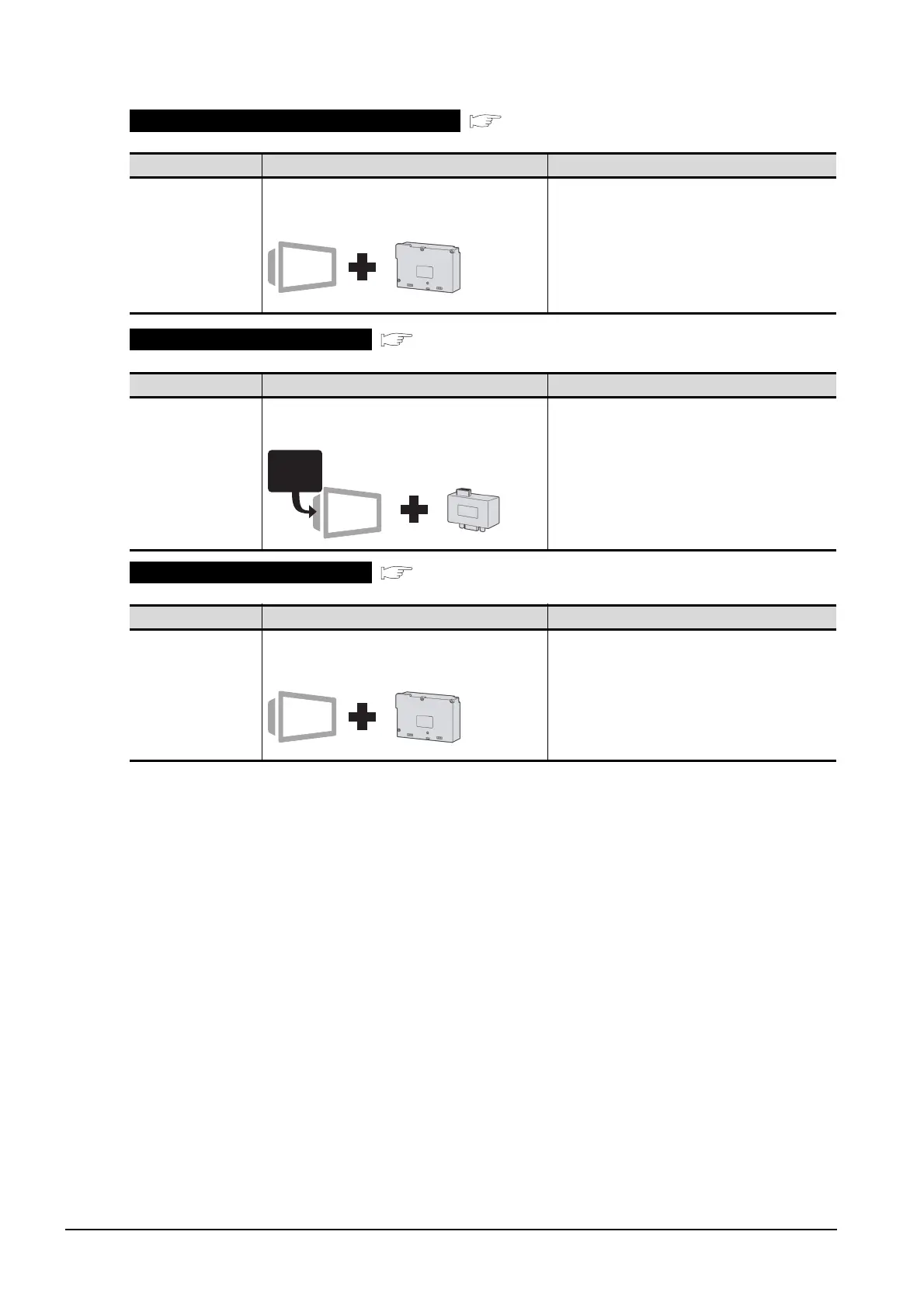

1.2 Overall System Configurations
CC-Link connection (intelligent device station)
( Chapter 6)
Communication Type Communication Interface on GOT Side Connected to
CC-Link
CC-Link communication unit
• GT15-75J61BT13-Z
CC-Link module
• QCPU (Q mode)
• QCPU (A mode)
• QnACPU
• ACPU
• Motion controller CPU (Q Series)
• Motion controller CPU (A Series)
CC-Link connection (via G4)
( Chapter 7)
Communication Type Communication Interface on GOT Side Connected to
RS-422
communication
RS-422 conversion unit
• GT15-RS2T4-9P
Peripheral connection module
• QCPU (Q mode)
• Motion controller CPU (Q Series)
Ethernet connection
( Chapter 8)
Communication Type Communication Interface on GOT Side Connected to
Ethernet
Ethernet communication unit
• GT15-J71E71-100
Ethernet module
• QCPU (Q mode)
• QCPU (A mode)
• QnACPU
• ACPU
• Motion controller CPU (Q Series)
• Motion controller CPU (A Series)
RS-232

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
