Mitsubishi GOT1000 Series User Manual

22.1 System Configuration
22.1.1 Connecting to H-PCP-J
22 - 5
17
CONNECTION TO ALLEN-BRADLEY PLC
18
CONNECTION TO SIEMENS PLC
19
MICROCOMPUTER CONNECTION
20
CONNECTION TO OMRON TEMPERATURE CONTROLLER
21
CONNECTION TO YAMATAKE TEMPERATURE CONTROLLER
22
CONNECTION TO RKC TEMPERATURE CONTROLLER
23
CONNECTION TO FREQROL SERIES INVERTER
24
SERVO AMPLIFIER CONNECTION

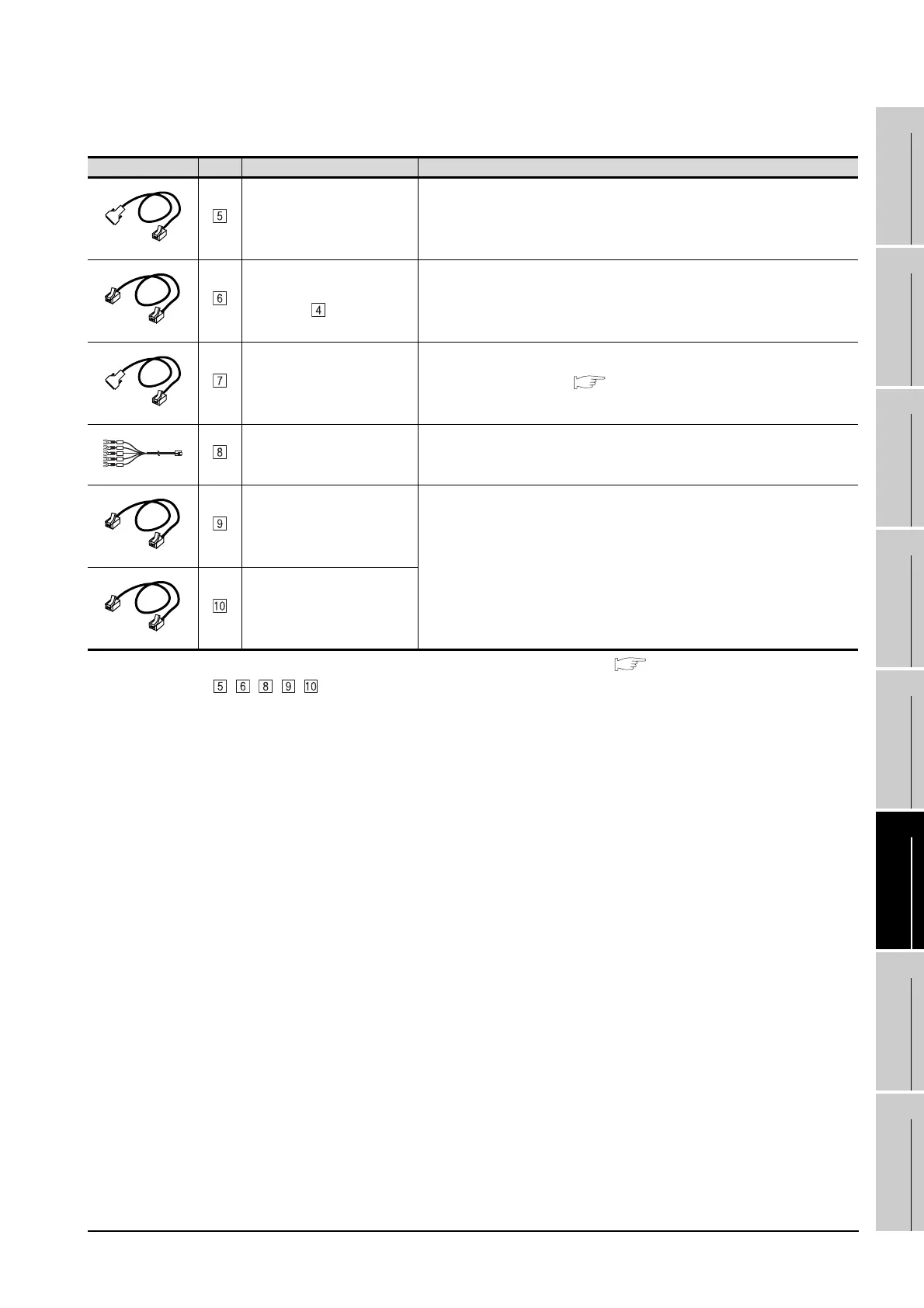

(3) Cable
*1 The RS-232 cable and RS-485 cable can be prepared by the user. ( Section 22.2 Connection Cable)
, , , , are products manufactured by RKC. For details of these products, contact RKC.
Image No. Name Model name
RS-232 cable 1)
*1
• Between temperature
controller and GOT
W-BF-28-0500(0.5m), W-BF-28-1000(1m), W-BF-28-3000(3m)
RS-232 cable 2)
• Between conversion
connector and
temperature controller
W-BF-02-0500(0.5m), W-BF-02-1000(1m), W-BF-02-3000(3m)
RS-422 cable 1)
• Between temperature
controller and GOT
(To be prepared by the user. Section 22.2 Connection Cable )
RS-485 cable 1)
*1
• Between temperature
controller and GOT
W-BF-01-0500(0.5m), W-BF-01-1000(1m), W-BF-01-3000(3m)
RS-422 cable 2)
• Between temperature
controllers
W-BF-02-0500(0.5m), W-BF-02-1000(1m), W-BF-02-3000(3m)
RS-485 cable 2)
• Between temperature
controllers
R(B)
R(A)
T(B)
T(A)
SG

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
