23.2 Connection Cable
23 - 13
17
CONNECTION TO
ALLEN-BRADLEY PLC
18
CONNECTION TO
SIEMENS PLC
19
MICROCOMPUTER
CONNECTION
20
CONNECTION TO OMRON
TEMPERATURE
CONTROLLER
21
CONNECTION TO
YAMATAKE TEMPERATURE
CONTROLLER
22
CONNECTION TO RKC
TEMPERATURE
CONTROLLER
23
CONNECTION TO
FREQROL SERIES
INVERTER
24
SERVO AMPLIFIER
CONNECTION

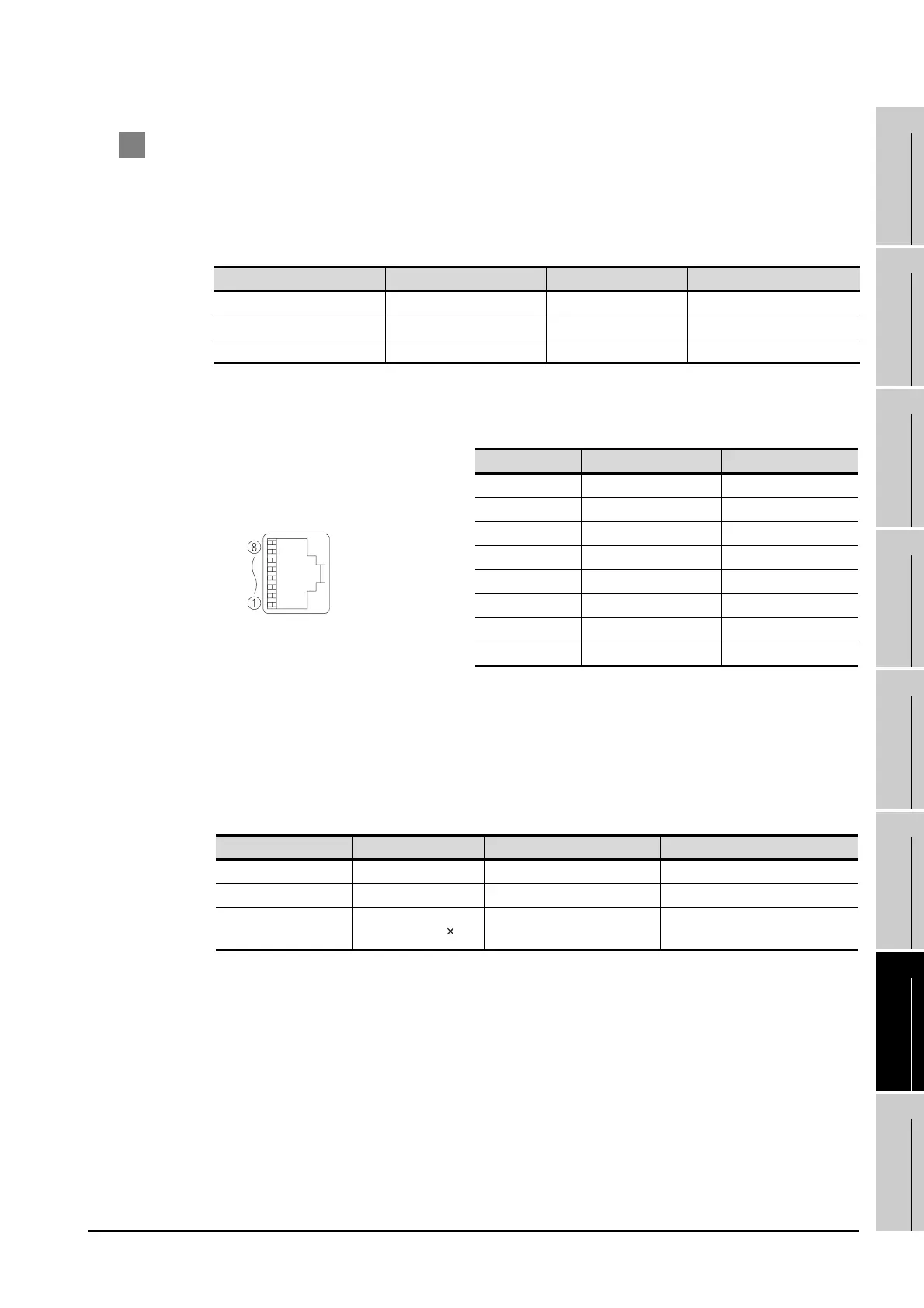

2 Connector specifications
(1) GOT side connector
Use the following as the RS-422/485 communication unit connector on the GOT.
For the GOT side of the RS-422 cable, use a connector or connector cover applicable to the GOT
connector.
(2) Inverter connector specifications
(a) Pin layout in the PU port
The contents inside ( ) indicate symbols described in the inverter manual.
The pins number 2 and 8 (P5S) are connected to the power supply for an operation panel or a
parameter unit. Do not use them in RS-422 communication.
(b) Connector of cable between FREQROL Series inverters
Use the commercial connectors and cables shown in the table below or the comparable
products. (Refer to the manual for the inverter.)
Introduced products (as of October, 2005)
GOT Connector model Connector type Manufacturer
RS-422 conversion unit 17LE-13090-27(D3AC) 9-pin D-sub (female) DDK Ltd.
GT11 17LE-13090-27(D3AC) 9-pin D-sub (female) DDK Ltd.
GT15-RS4-9S 17LE-13090-27(D3AC) 9-pin D-sub (female) DDK Ltd.
Pin No. Signal name Remark
1GND (SG)
2 (P5S) Not used
3 RXD+ (RDA)
4 TXD- (SDB)
5 TXD+ (SDA)
6RXD- (RDB)
7GND (SG)
8 (P5S) Not used
Name Model name Specifications Manufacture
Connector 5-554720-3 RJ45 conector Tyco International, Ltd
Modular ceiling rossette BMJ-8 HACHIKO ELECTRIC CO.,LTD.
Cable
SGLPEV 0.5mm 4P
Cable conforming to EIA568
(such as cable 10BASE-T)
MITSUBISHI CABLE INDUSTRIES,
LTD.
When seen from the front of the inverte
(receptacle side)
Modular jack
