Mitsubishi GOT1000 Series User Manual

24 - 2

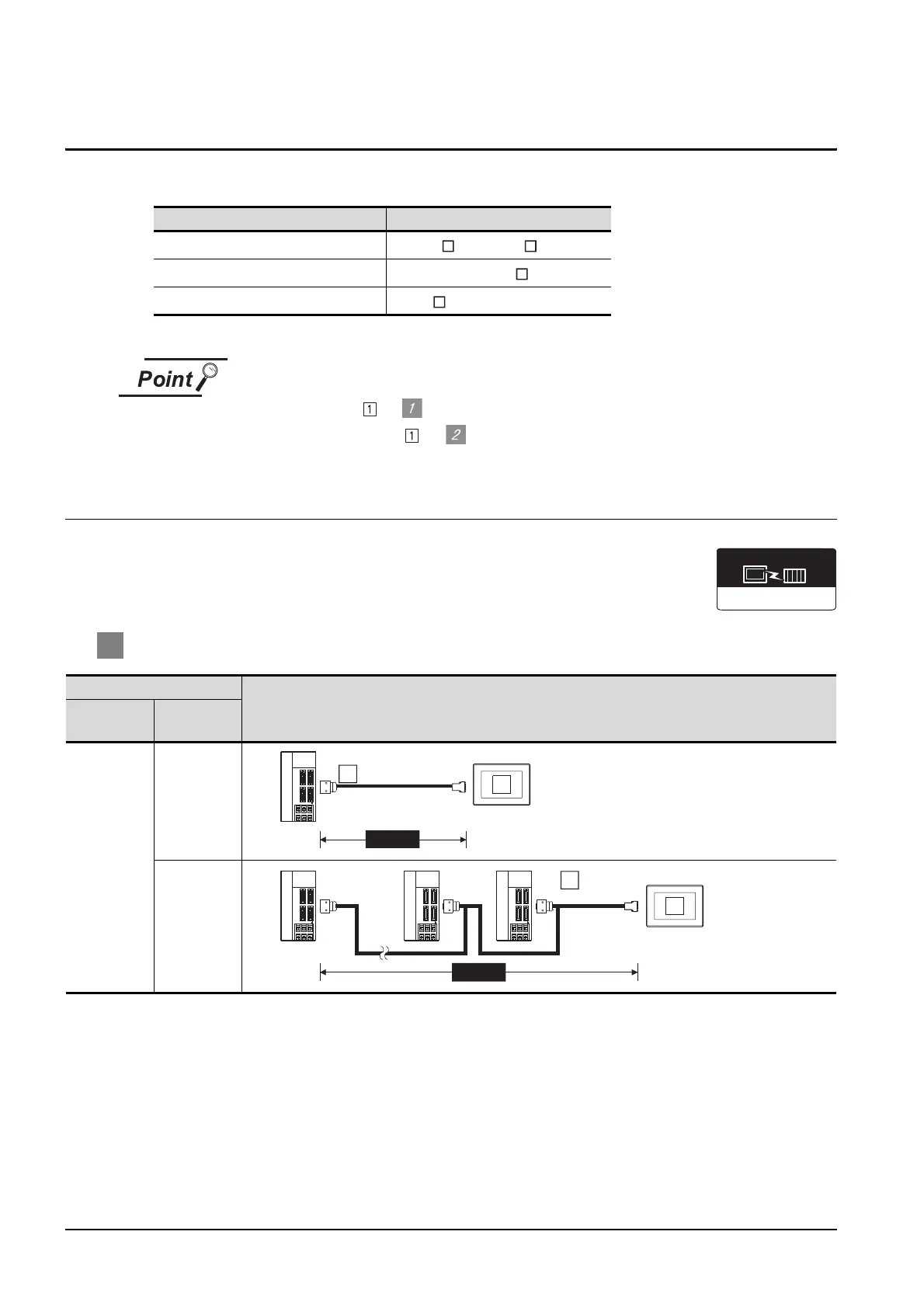

24.1 System Configuration
24.1.1 Connecting to the MELSERVO-J2-Super series
24.1 System Configuration
The series names of connectable servo amplifiers are as follows.
Select a system configuration suitable for your application.
Conventions used in this section
Numbers (e.g. ) of System configuration and connection conditions correspond
to the numbers (e.g. ) of System equipment.
Use these numbers as references when confirming models and applications.
24.1.1 Connecting to the MELSERVO-J2-Super series
1 System configuration and connection conditions
*1 Connect the connector of the servo amplifier to CN3.
*2 Multi-drop communication (Up to 32 axes can be connected.)
Series name Model name
MELSERVO-J2-Super
MR-J2S- A, MR-J2S- CP
MELSERVO-J2M
MR-J2M-P8, MR-J2M- DU
MELSERVO-J3
MR-J3- A
Connection conditions
System Configuration
Number of
GOTs
Distance
1
15m or less
30m or less
Communication driver
MELSERVO-J3, J2S/M
MAX15m
CH ARGE
MITSUBISHI
*1
RS-232 cable
3
1
MAX30m
*1
CHARGE
MITSUBISHI
CHARGE
MITSUBISHI
*2 *2 *2
CHARGE
MITSUBISHI
*1 *1
RS-422 cable
4
2

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
