Mitsubishi GOT1000 Series User Manual

24.1 System Configuration
24.1.1 Connecting to the MELSERVO-J2-Super series
24 - 3
17
CONNECTION TO ALLEN-BRADLEY PLC
18
CONNECTION TO SIEMENS PLC
19
MICROCOMPUTER CONNECTION
20
CONNECTION TO OMRON TEMPERATURE CONTROLLER
21
CONNECTION TO YAMATAKE TEMPERATURE CONTROLLER
22
CONNECTION TO RKC TEMPERATURE CONTROLLER
23
CONNECTION TO FREQROL SERIES INVERTER
24
SERVO AMPLIFIER CONNECTION

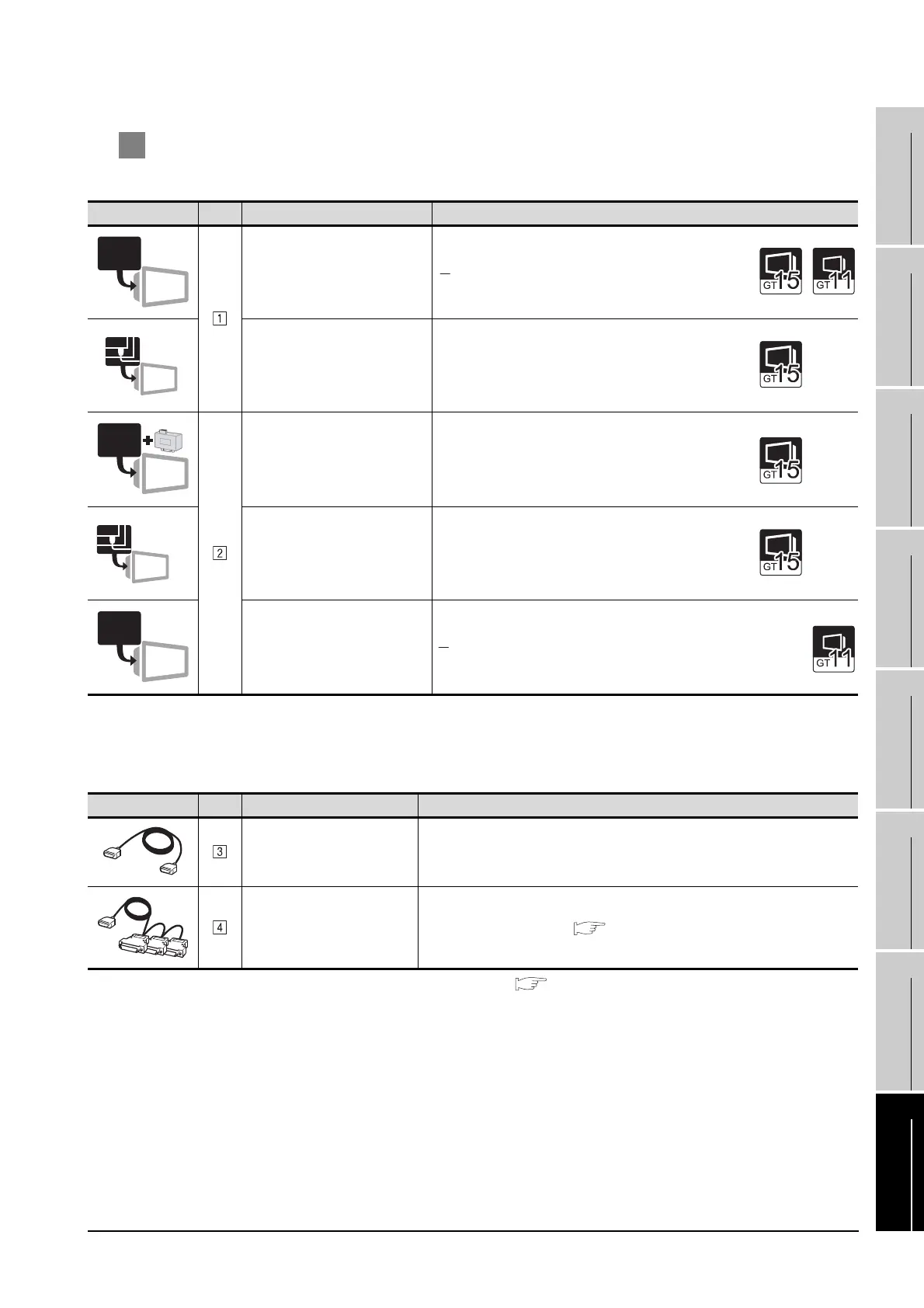

2 System equipment
(1) GOT
*1 Connect it to the RS-232 interface (built into GOT).
(2) Cable
*2 The RS-232 cable can be prepared by the user. ( See Section 24.2 Connection Cable)
Image No. Name Model name
RS-232 interface
• For RS-232 communication
(Built into GOT)
RS-232 Communication Unit
• For RS-232 communication
GT15-RS2-9P
RS-422 conversion unit
*1
• For RS-422 communication
GT15-RS2T4-9P
RS-422/485 Communication Unit
• For RS-422 communication
GT15-RS4-9S
RS-422 interface
• For RS-422 communication
(Built into GOT)
Image No. Name Model name
RS-232 cable
*2
MR-CPCATCBL3M(3m)
RS-422 cable
(To be prepared by the user. Section 24.2 Connection Cable)
RS-232
RS-232
RS-232
RS-232
RS-422/485
RS-422/485
RS-422

Mitsubishi GOT1000 Series Specifications

General

Power Supply	24 VDC
Type	HMI (Human Machine Interface)
Series	GOT1000
Resolution	640 x 480 pixels
Touch Panel Type	Resistive
Interface	RS-232, USB
Storage Temperature	-20 to 60°C
Protection Rating	IP65
Display Type	TFT LCD
Brightness	400 cd/m²
Backlight Life	50, 000 hours
CPU	RISC
Shock Resistance	147 m/s²
Display Size	10.4 inches
