3.7 Video/RGB
■3. RGB display setting operation
POINTPOINTPOINT
Precautions for setting
If the value for [Horizontal] or [Vertical] is too large, RGB display may not be performed or the
display may be disrupted or stopped.
If this happens, return the settings to their default values and make settings in the range where
RGB display is possible.

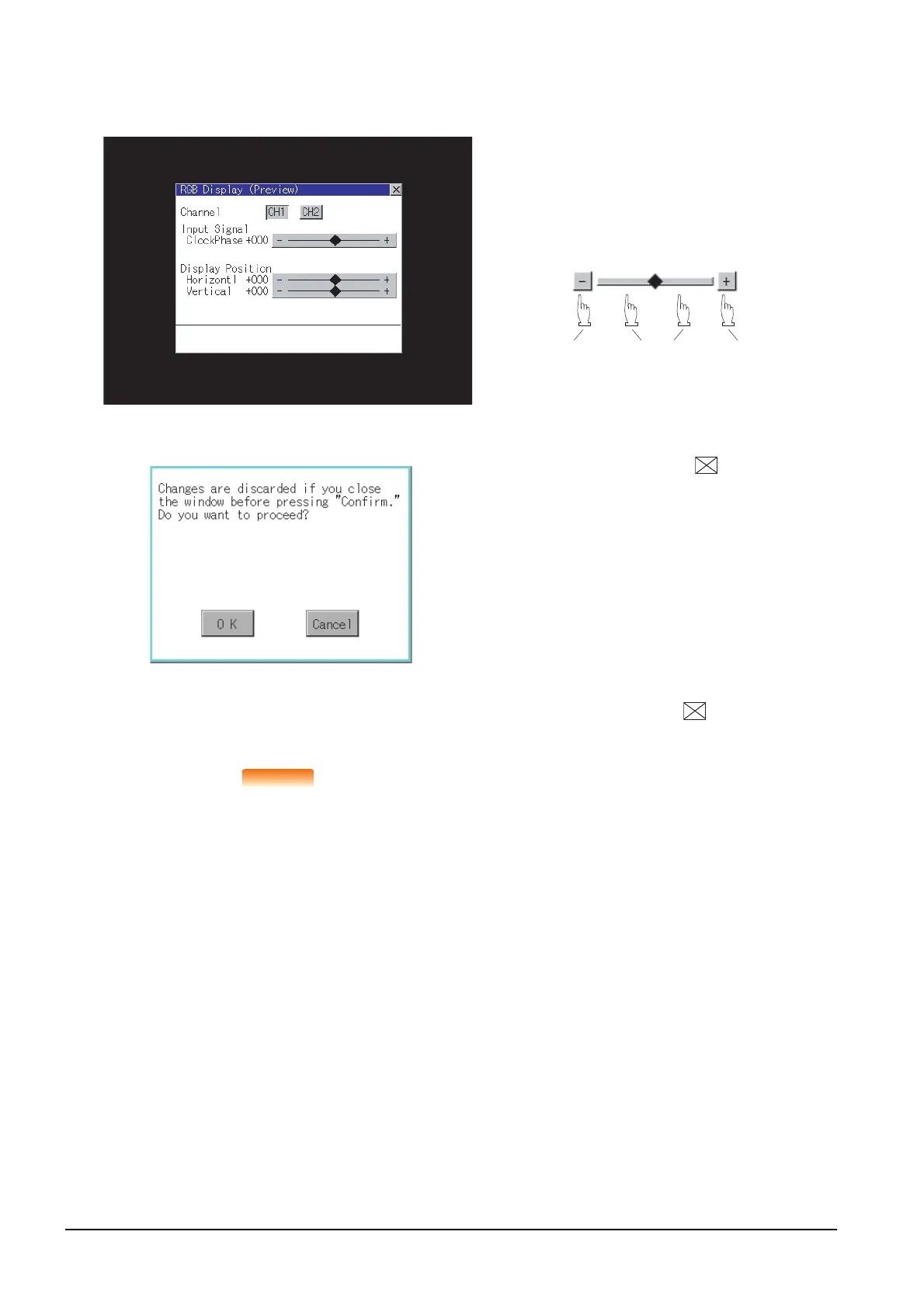

Step 1. Select an RGB channel No. to be
displayed.
The RGB image for the selected
channel No. is previewed.
Step 2. The clock phase and screen display
position (horizontal direction or
vertical direction) can be changed.
Step 3. When you touch the [Confirm] button,
the setting contents are determined.
Step 4. If you touch the button without
touching the [Confirm] button, the
dialog on the left is displayed.
Step 5. After completing all the items to set, if
you touch the button, the display
returns to [Video/RGB Setting].
Changes
the number
a certain
Changes
the number
to the
Changes
the number
a certain
