Mitsubishi GOT2000 Series - Displaying Sequence Programs

16 - 22
16.2 FX List Editor (GT2104-R only)
16.2.8 Displaying sequence programs
Sequence programs are read from the FX PLC to the GOT and displayed.
There are two displaying methods: specifying the step number, and scrolling one screen at a time.

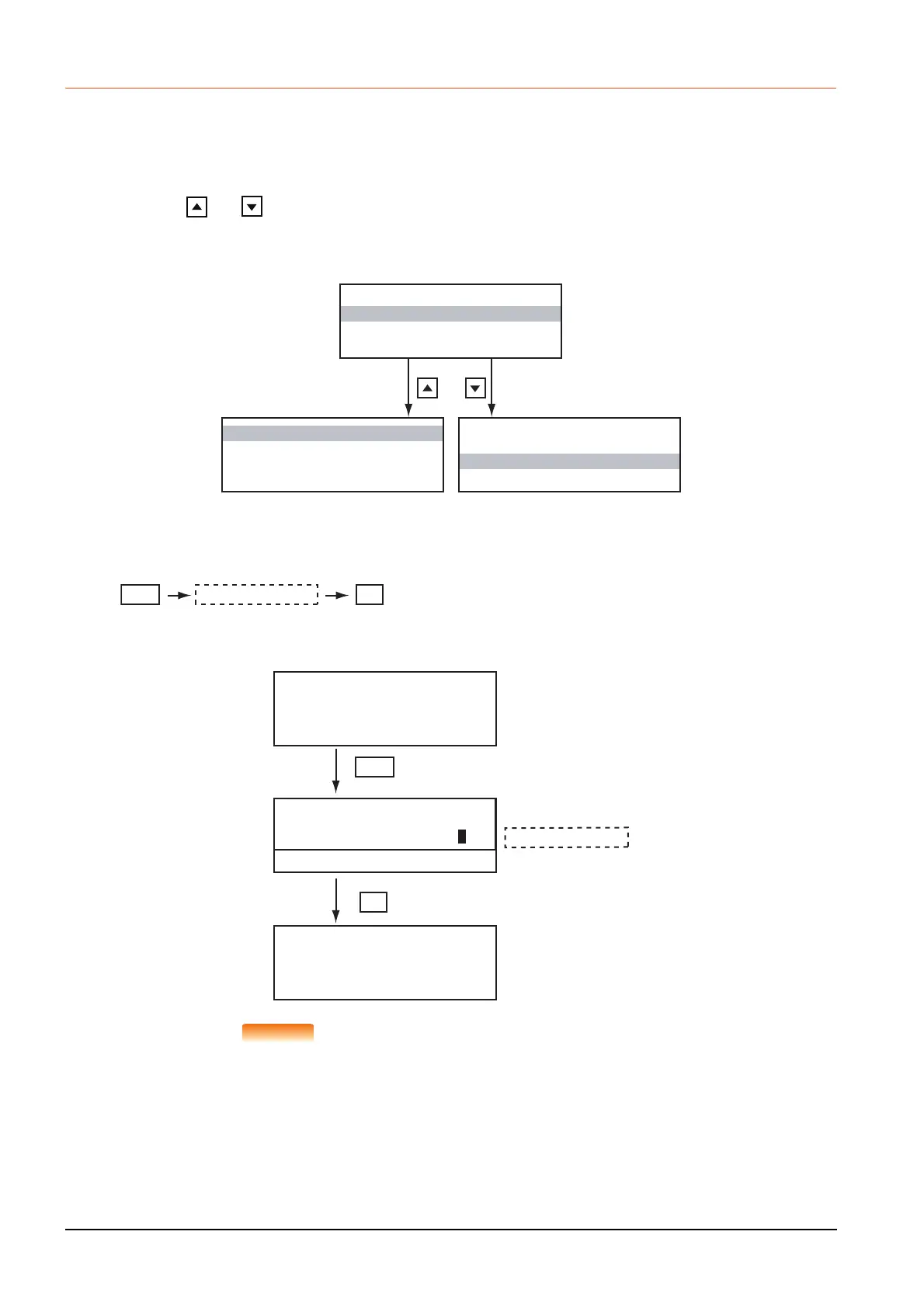

■1. Display using cursor keys
(1) Operation
(2) Example
Scroll one line upward or downward.
■2. Display specifying the step number
(1) Operation
(2) Example
Displaying step number 123.
POINTPOINTPOINT
When the specified step number is the operand of an applied instruction
If the specified step number is a timer (T) or counter (C) set value or the operand of an applied
instruction, that command section is displayed at the head.
Scroll with
OR
128 MPP
129 DIV 23
D56
K200
128 MPP
129 DIV 23
D56
K200
128 MPP
129 DIV 23
D56
K200
Scrolling one line upward
Scrolling one line downward
STEP GO
Input the step number.
STEP
GO
Input the step number
Step number
0 LD X 000
1 OUT Y 000
2 LDI M 100
3 MOV 12
123 MOV 12
K 200
D 58
128 MPP
123
3 MOV 12
