6.2 Alarm Information
6 - 5
6
DATA CONTROL

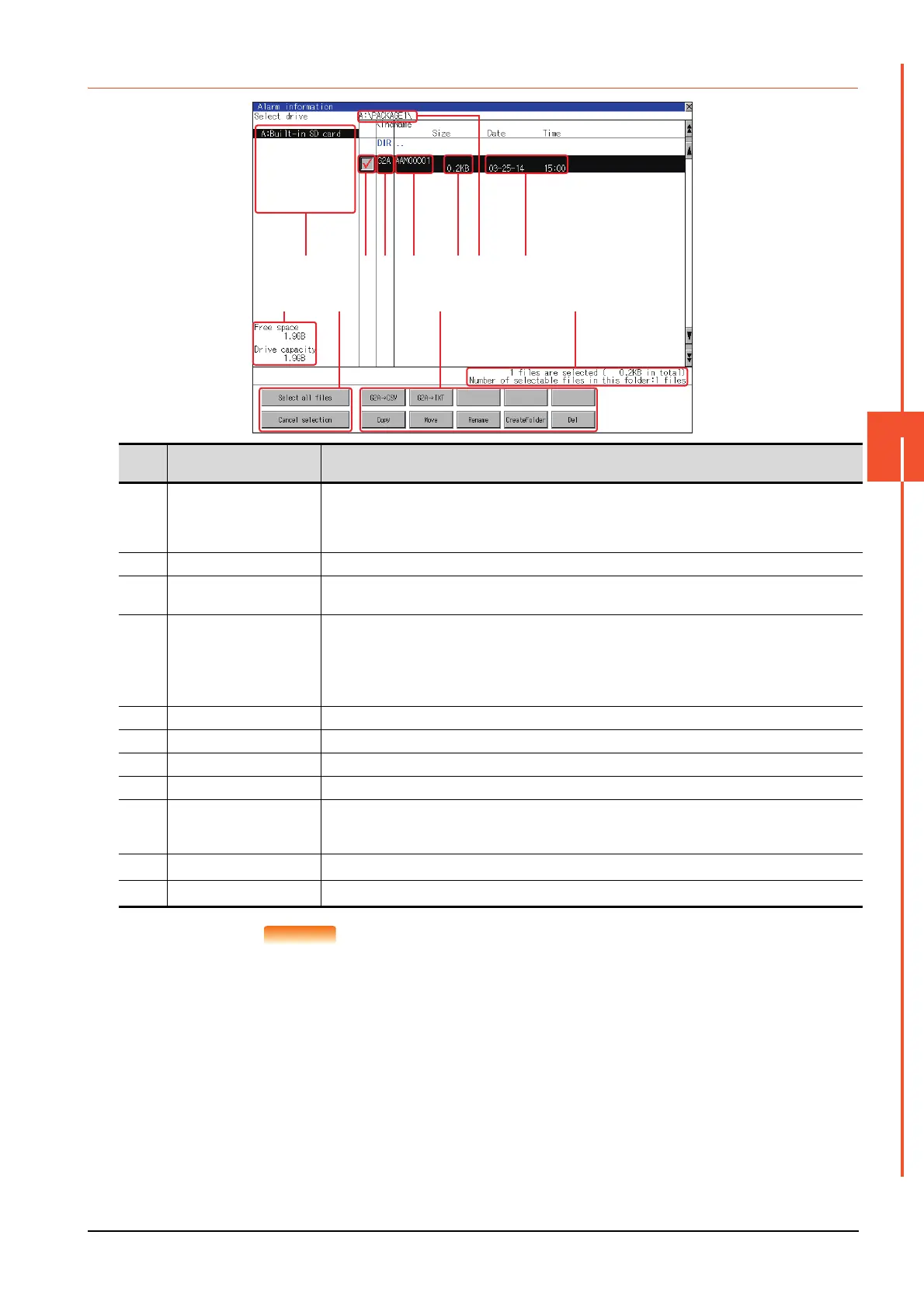

6.2.3 The display example of alarm information
POINT
POINT
Display of creation date and time
The creation date and time display is not updated even if a file is created or updated while
displaying the alarm information display screen.
If close the screen currently displayed (moving the screen to the folder of the upper hierarchy,
etc.) and display the screen again, the updated contents are displayed.
Numbe
r
Item Description
(1) Select drive
The drive which displays file or folder can be selected.
When an SD card or USB memory is not installed, the following drives are not displayed.
• SD card: [A: Built-in SD card]
• USB memory: [B: USB Drive], [E: USB Drive], [F: USB Drive], and [G: USB Drive]
(2) Check box If the check box is selected, up to 512 files can be selected.
(3) Kind
Indicates whether the displayed name is file or folder.
Displays the extension for a file and "DIR" for a folder.
(4) Name
Displays the file name or folder name.
For the long file/folder name, entire part may not be displayed.
Confirm the non-displayed part with the [Copy] button, etc.
➠ Copy operation
After confirmation, touch the [Cancel] button to cancel the operation.
(5) Path name Displays the path name of drive /folder which is currently displayed.
(6) Size Displays the size of the file displayed in Name.
(7) Date and time Displays the creation date and time of each file.
(8) The size of drive Displays the size in use and the entire size of the drive which is selected by drive selection.
(9)
Select all files/Cancel
selection
Multiple files can be selected or canceled at once.
Touch the [Select all files] button to select all files.
If the number of the displayed files exceeds 513, the first 512 files are selected.
(10) Operation switch Execution switch of each function.
(11) Number of folders and files Displays the total number of the displayed files and folders.
(1)
(8) (10) (11)(9)
(2) (5)(3) (4) (6) (7)
