3.7 Video/RGB
3.7.2 Video display setting
■1. Video display setting
The target for the video settings and the preview channel can be selected and the captive area and image quality can
be set.
■2. Display operation of the video display setting
Item Description Setting range
Video Display Setting
The target for the video settings and the preview channel can be selected and
the captive area (in the horizontal direction and vertical direction) and image
quality (color tone, contrast, brightness, color intensity) can be set.
The captive area and image quality can be set for each channel.
Channel 1/2/3/4
<At factory shipment : 1>
Captive area Horizontal: -100 to 100
<At factory shipment : 0>
Vertical: -100 to 100
<At factory shipment : 0>
Image Quality and Color Tone: -100 to 100
<At factory shipment : 0>
Contrast: -100 to 100
<At factory shipment : 0>
Brightness: -100 to 100
<At factory shipment : 0>
Intensity: -100 to 100
<At factory shipment : 0>

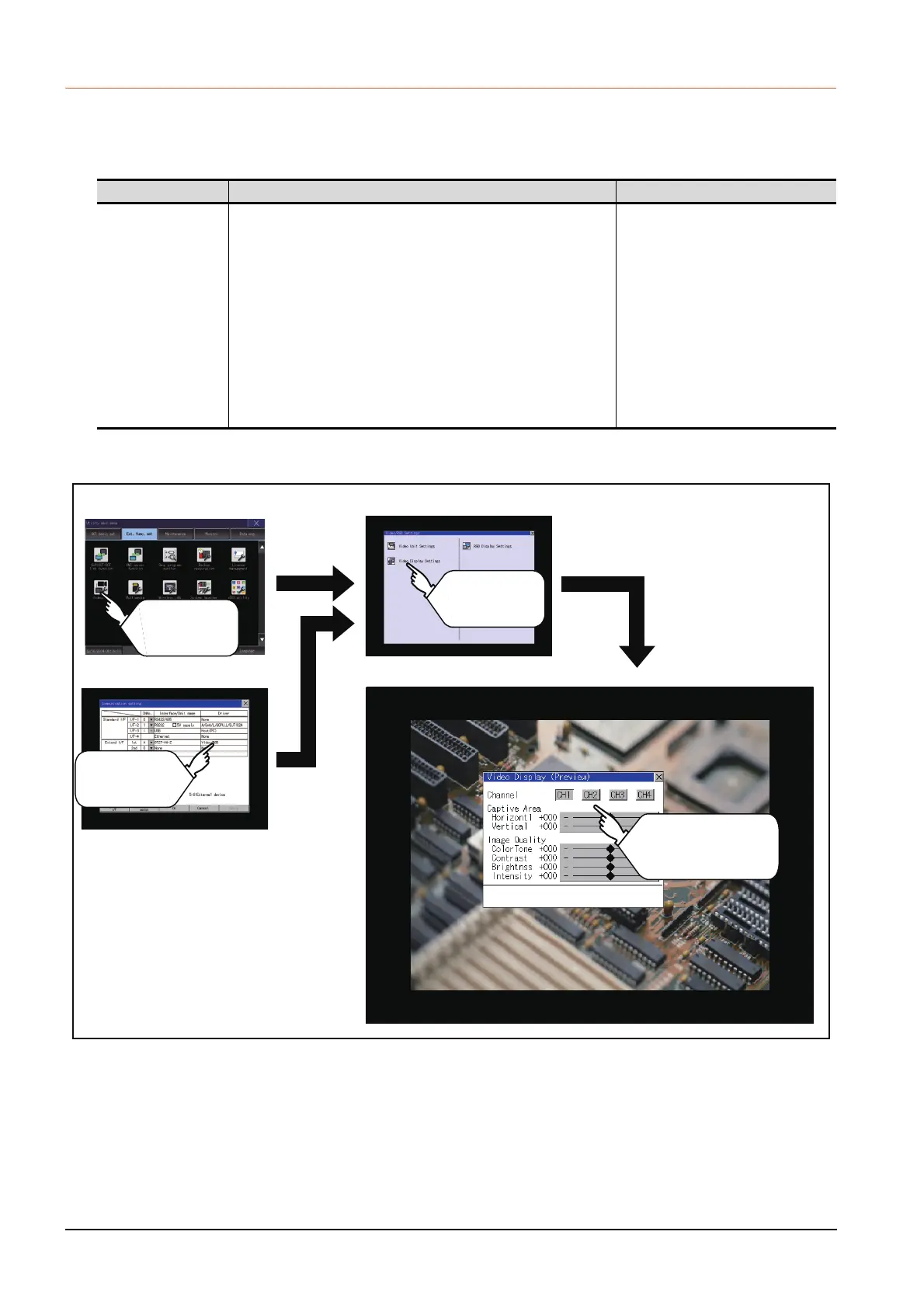

Video display setting
Extended function setting Video/RGB setting menu
Communication setting
Touch
[Video/RGB].
Touch an item to
be set.
Touch
[Video/RGB].
Touch
[Video Display
Settings]
To Next Page
