Mitsubishi GOT2000 Series User Manual

16 - 38
16.2 FX List Editor (GT2104-R only)

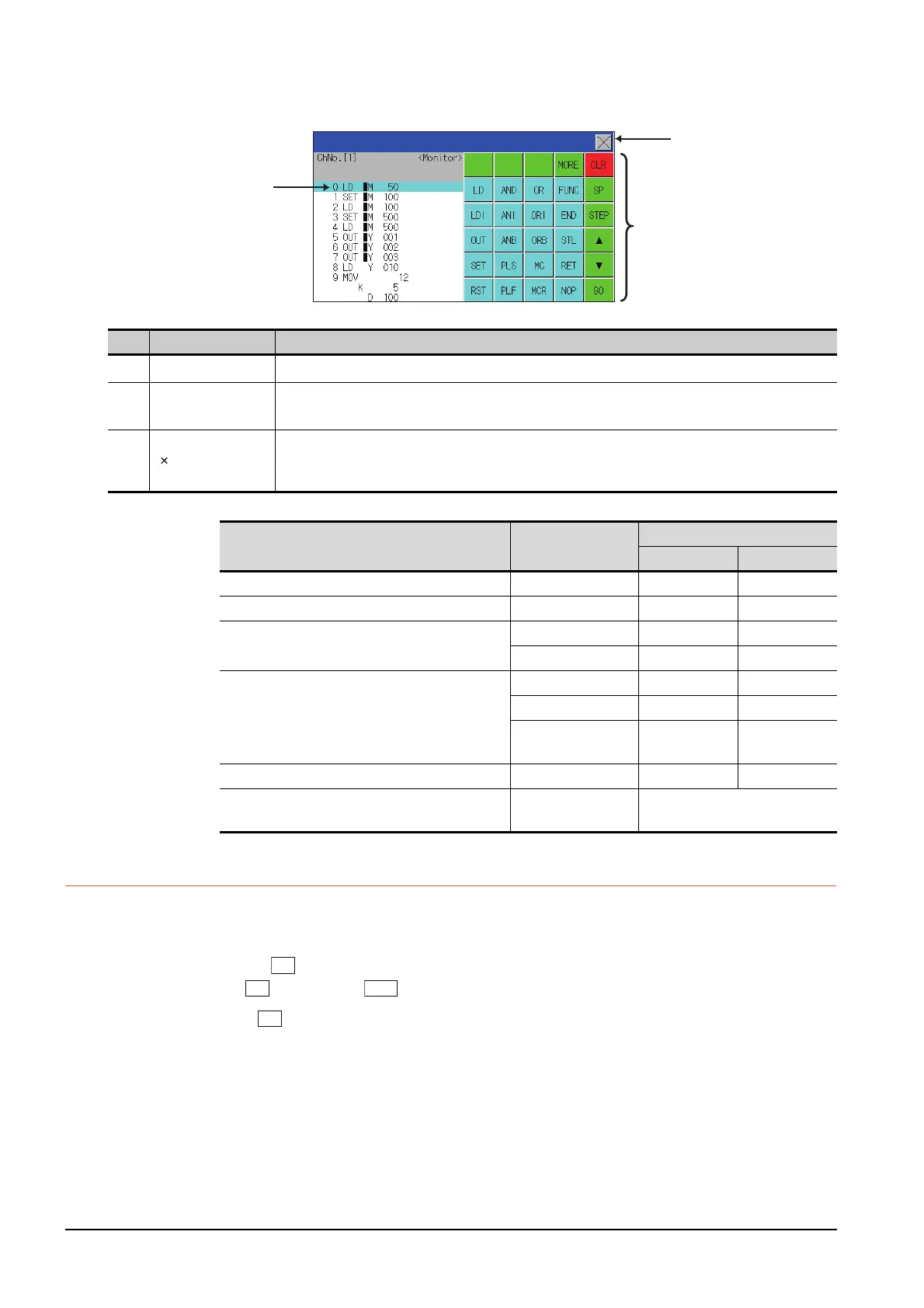

■2. Displays and key functions
The following describes the displays for the list monitor.
*1 The status of contacts and coils is displayed as below.
16.2.18 Action for an incorrect key input
If an incorrect key is input, cancel the input contents.
■1. Operations
(1) Before touching the key (before reading/writing the input contents)
Before touching the key, touch the key.
(2) After touching the key (after reading/writing the input contents)
Write the command again.
➠ 16.2.10 Writing commands
Commands finalized by writing and inserting operations are revised (overwritten) with the program writing.
No. Item Display contents
1)
List display area
*1
The status of contacts and coils is displayed on the left of device displays.
2) Keys
The same operations as in the READ mode of the FX list editor can be executed.
➠ 16.2.8 Displaying sequence programs
3)
[]
Ends the list monitor.
(When the list monitor is executed on the FX list editor screen, the screen is switched to the FX list
editor screen.)
Type of instruction Description
Status
■ Displayed ■ Not displayed
LD, AND, OR (Contact instruction (Normal open)) Contact ON OFF
LDI, ANI, ORI (Contact instruction (Normal close)) Contact OFF ON
OUT, SET
TC: Coil ON OFF
Except TC: Contact ON OFF
RST
TC: Reset ON OFF
Word device Value: 0 Value: Except 0
Except TC and word
device: Contact
OFF ON
MC, STL Contact ON OFF
LDP, ANDP, ORP, LDF, ANDF, ORF
(Rise or fall contact instruction)
Not monitored Always ■ not displayed
2)
1)
3)
GO
GO
CLR
GO
