12.1 Display Settings

12 - 3

DISPLAY AND OPERATION SETTINGS (GOT SET UP)

12.1.3 Display setting operations

■1. The title display period and screen saving time

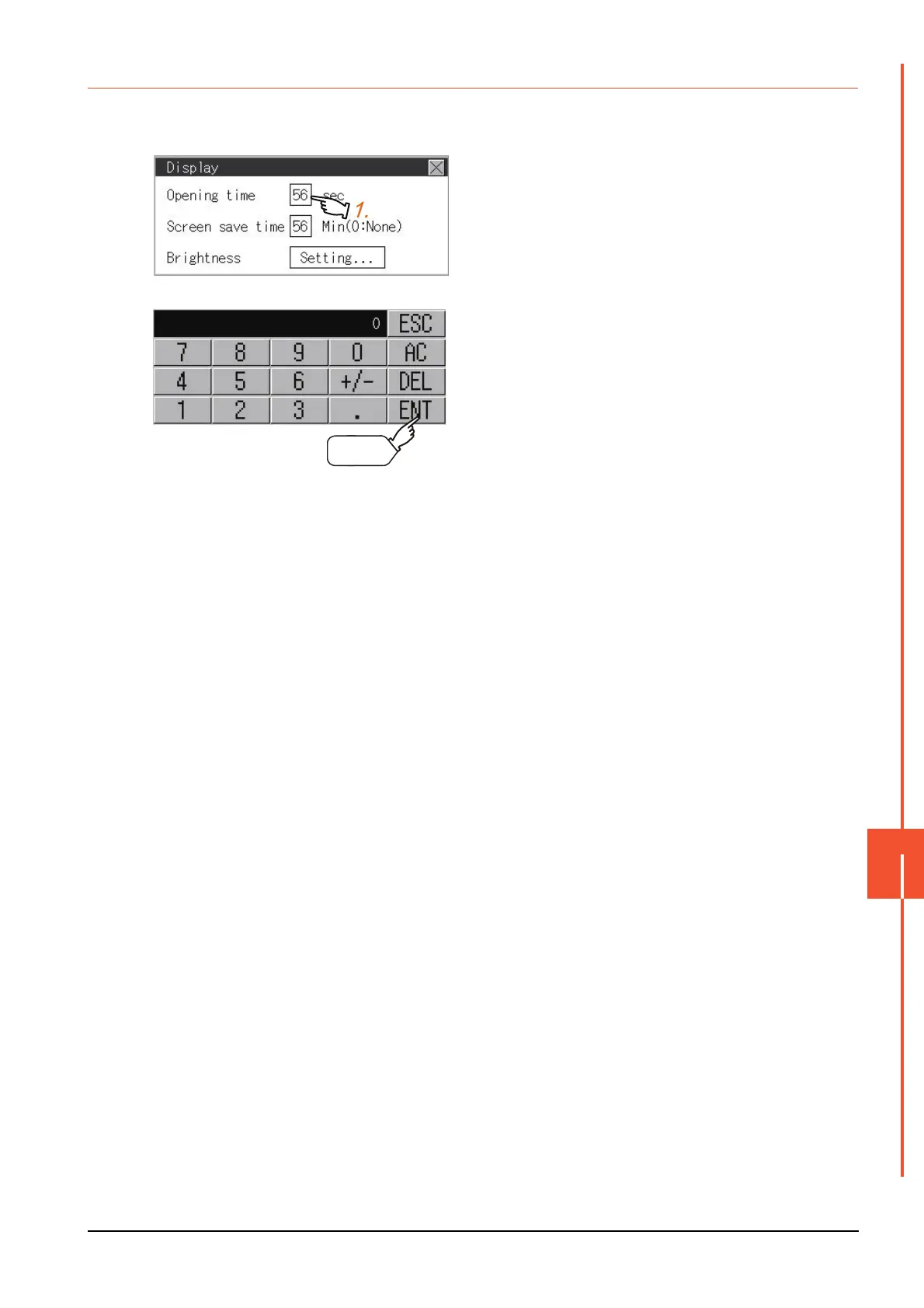

Step 1. If the setting items (numbers) are

touched, a keyboard is displayed.

Input numeric with the keyboard.

Step 2. Set the title display period with the ten-

key pad window and touch "ENT".

Touch

Default Chapter3
