11.3 Ethernet Communication
11.3.3 Display contents of Ethernet setting
The following describes the setting items and the display contents of the Ethernet setting.
(1) Channel select tab
Channels can be switched.
Switching to the channel which does not have the Ethernet setting is not available.
(2) Ethernet setting items
The contents of the Ethernet setting configured in GT Designer3 are displayed.
Changing [Host], [Net No.], [Station No.] and [IP Address] are available.
➠ Change of host
➠ Change of Net No.
➠ Change of station No.
➠ Change of IP address
(1) How to cancel the change of the setting in the [Ethernet setting] screen.
Cancel the settings changed in the [Ethernet setting] screen with the [Restore default
settings] button.
The changed settings remain until they are canceled with the [Restore default settings]
button.
The changed settings are not canceled even if writing the project data or system application
to the GOT.
When the project data is written to the GOT without canceling the changed settings, those
changed settings are reflected to the Ethernet setting of the written project data.
(If the written project data does not have a channel with same Ethernet settings as that of the
channel changed in [Ethernet setting] screen, the changed settings are not reflected.)

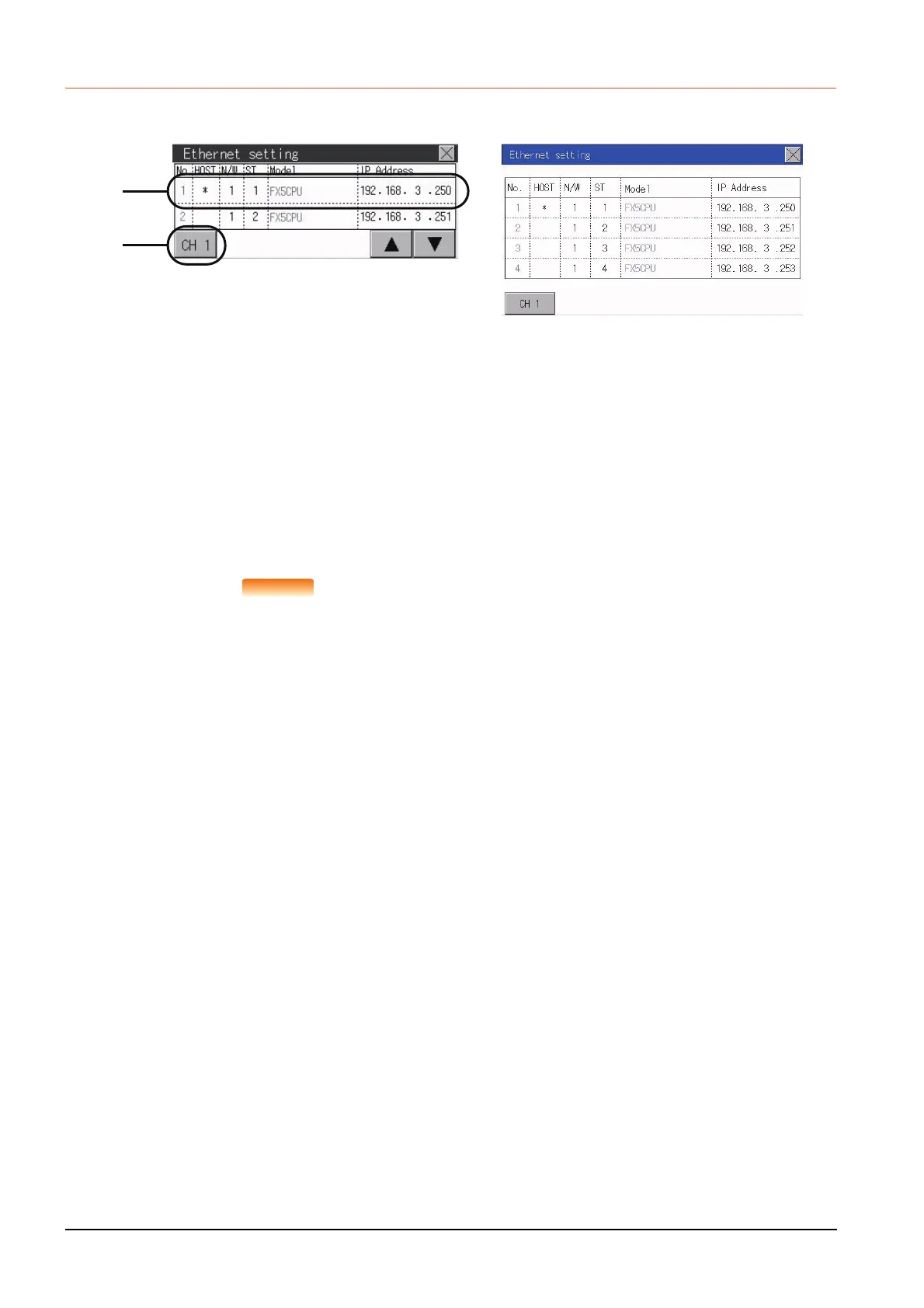

(For GT2103-P) (For GT2104-R)
