Mitsubishi GOT2000 Series - Page 220

6 - 28
6.4 Recipe Information

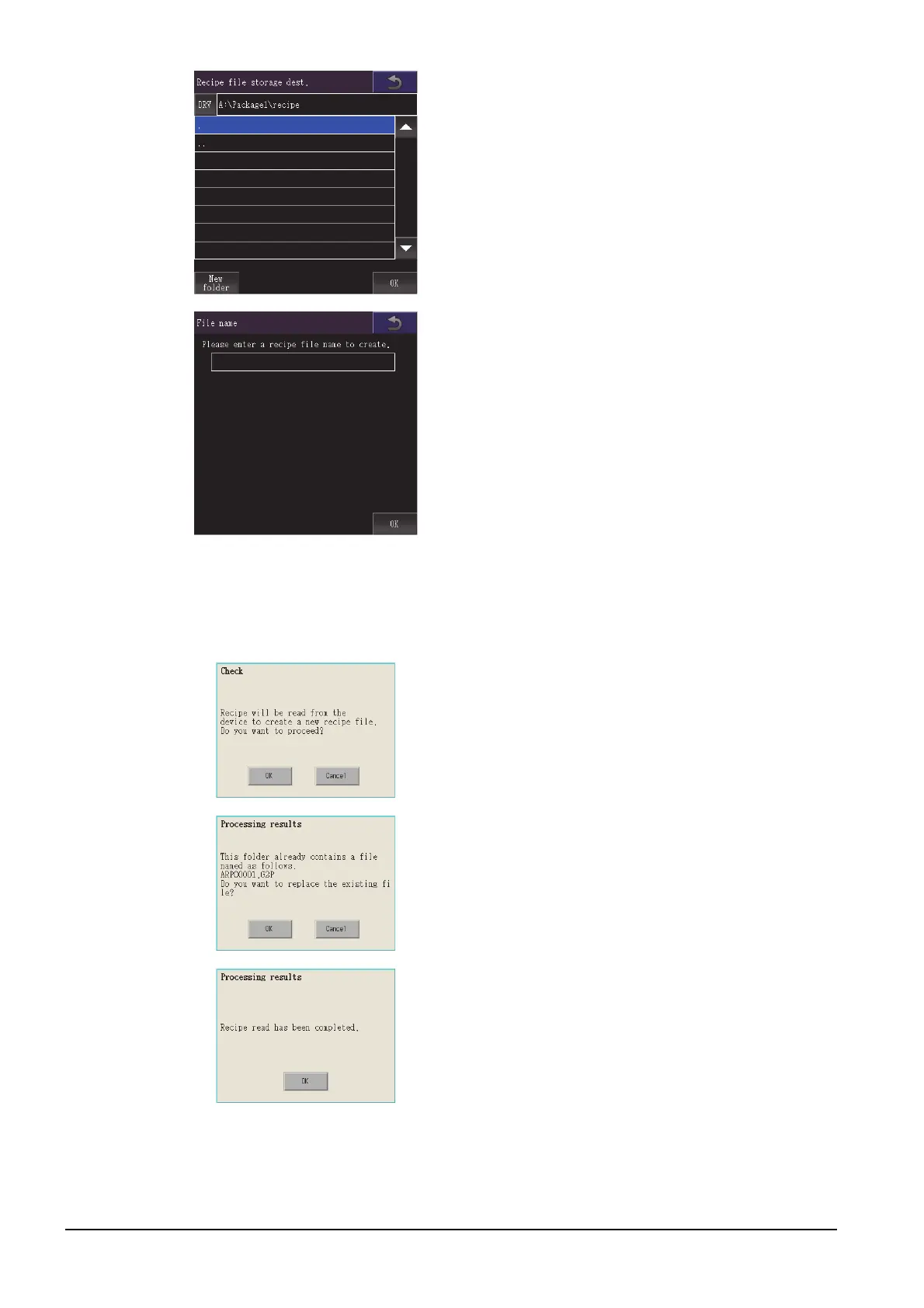

Step 6. Touch the [OK] button on the record
information screen to display the
recipe file storage destination
screen.
To return to the parent folder and
display its information, touch a [. . ]
folder.
To create a new folder, touch the
[New folder] button to display the
folder name screen.
New folder................ (3) Create
folder operation
Step 7. Touch the [OK] button on the recipe
file storage destination screen to
display the file name screen.
Enter a recipe file name in the input
area.
Step 8. Touch the recipe file name input area
to display the input key window.
Input a recipe file name.
To change the character type, touch
any of the following buttons.
[A-Z]: Uppercase alphabet
[a-z]: Lowercase alphabet
[@]: Symbols
[0-9]: Numeric characters, A to F
Step 9. Touch the [Enter] button to close the
input key window.
Step 10. Touch the [OK] button on the file
name screen to display the dialog
shown left.
To read the device values from
controllers into the selected record,
touch the [OK] button.
To cancel the reading of the values,
touch the [Cancel] button.
Step 11. If the recipe read destination folder
has a file of the same name, the
screen shown left appears without
reading device values of controllers.
To overwrite the file of the same
name, touch the [OK] button.
To cancel the overwriting, touch the
[Cancel] button.
Step 12. When the reading of device values
from controllers completes, the
completion dialog appears.
Touch the [OK] button to close the
dialog.
