11.1 Standard I/F
(1) Standard interface display BOX
The standard interface includes the following four types.
Standard I/F-1(RS-422/485, RS-232 or RS-422): For communication with PLC, microcomputer and other equipment
Standard I/F-2(RS-232): For communication with other equipment, bar code reader, RFID and transparent
Standard I/F-3(USB): For communication with PC (drawing software) and transparent
Standard I/F-4(Ethermet):
For communication with PC (drawing software) and other equipment
Available standard interfaces differ depending on the GOT model used.
○: Available, ×: Not available
(a) For GT2104-RTBD
(b) For GT2103-PMBD
GOT
Standard I/F-1 Standard I/F-2 Standard I/F-3 Standard I/F-4
RS-422/485 RS-232 RS-422 RS-232 USB Ethernet
GT2104-RTBD ○ ××○○○
GT2103-PMBD ○ ×××○○
GT2103-PMBDS ○ ××○○×
GT2103-PMBDS2 × ○ × ○○×
GT2103-PMBLS × × ○ × ○ ×

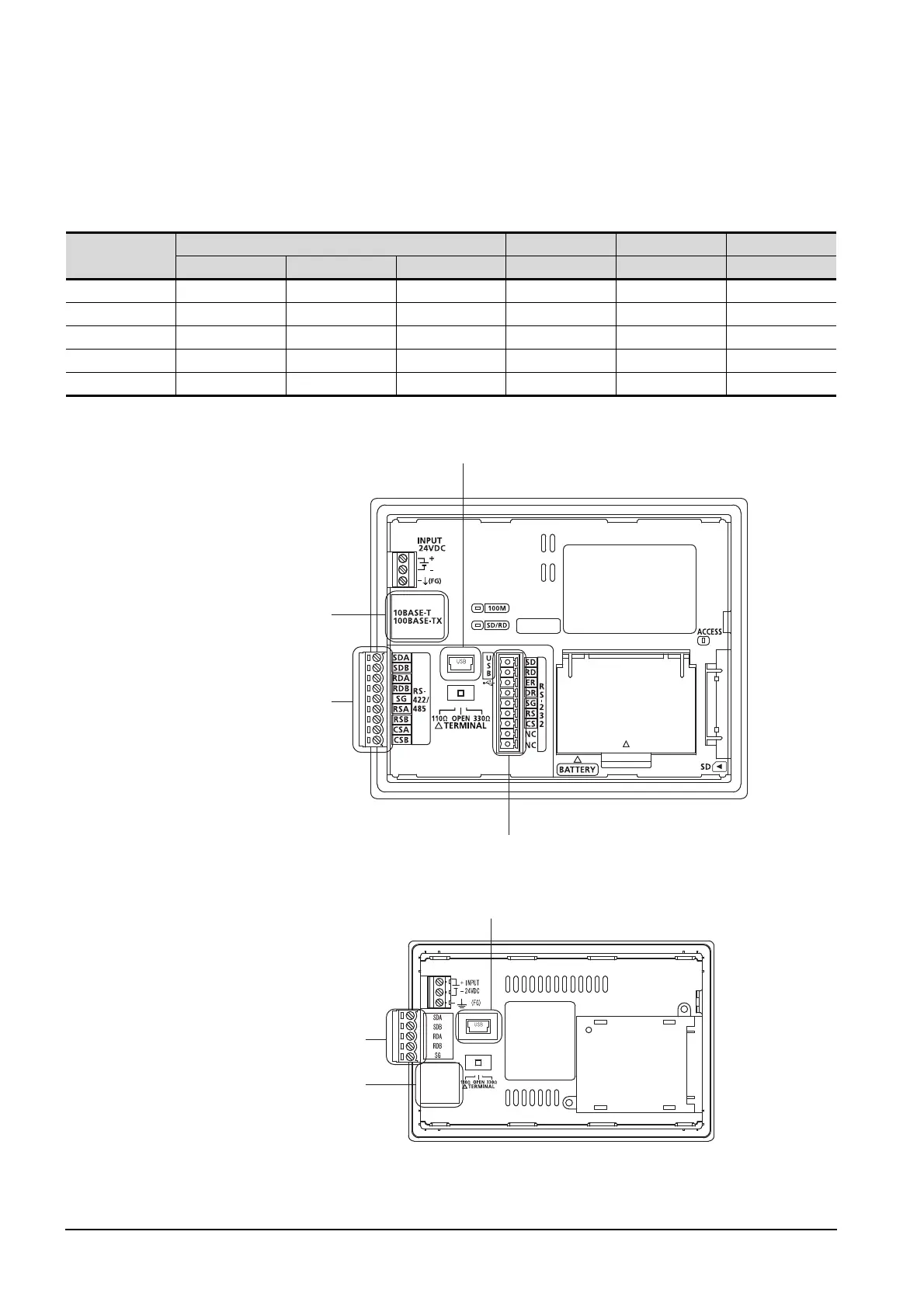

Standard I/F-1(RS-422/485)
Standard I/F-2(RS-232)
Standard I/F-4(Ethernet)
Standard I/F-3(USB)
Standard I/F-1(RS-422/485)
Standard I/F-3(USB)
Standard I/F-4(Ethernet)
