11.5 Ethernet Check
11 - 23
COMMUNICATION INTERFACE SETTING (COMMUNICATION SETTING)
11

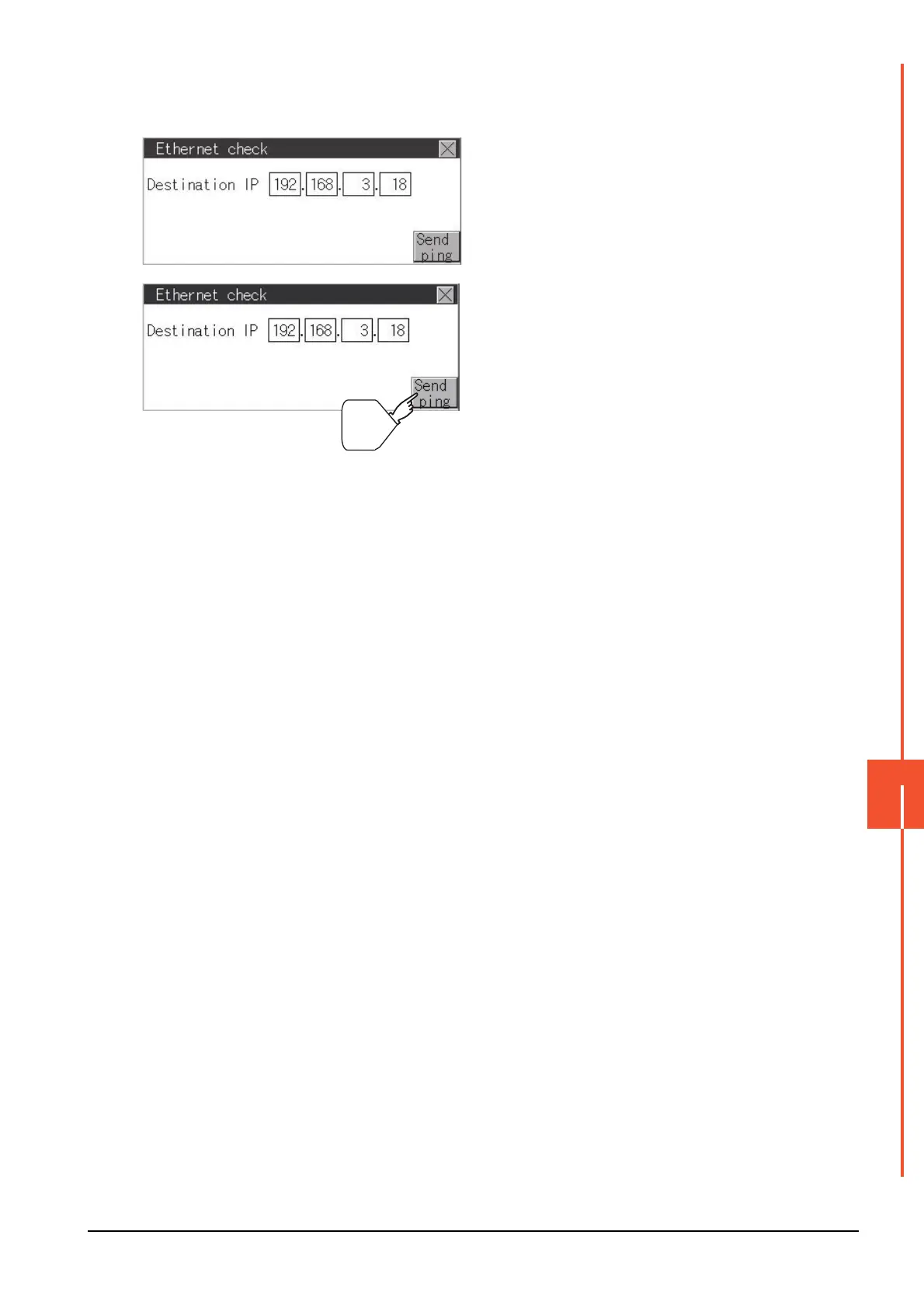

■3. Operation of Ethernet status check
Step 1. If the select button of [Destination IP] is
touched, a keyboard is displayed.
Enter the IP address of the other
terminal with the keyboard.
<Default: 192.168.3.39>
Step 2. If the [Send ping] button is touched, a
ping is sent to the IP address entered in
[Destination IP]. The timeout time is
5sec.
• When the communication is
completed
The [Response received.] dialog box
is displayed.
• When a communication error occurs
The [Timeout occurred.] dialog box is
displayed.
To Next Page
