16.1 Device Monitor Function

16 - 11

GOT SELF CHECK (DEBUG)

(1) Quick test of bit devices

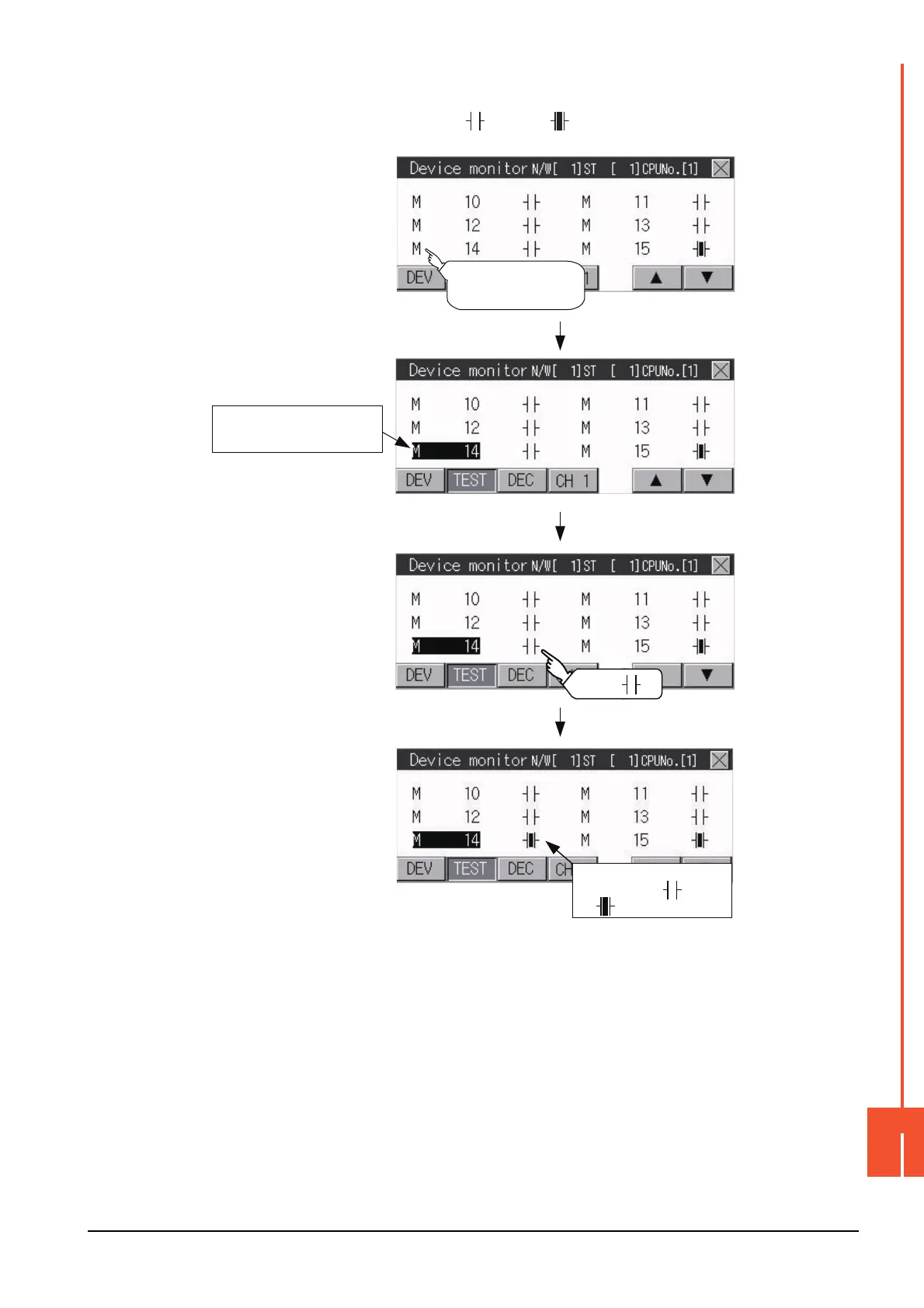

(Operation example)

Change the status of the bit device M14 from OFF to ON .

The selected bit device is

switched from (OFF)

to (ON).

Touch .

Touch the bit device

whose ON/OFF status

is to be switched.

The device name and device

number of the selected bit

device are highlighted.

Default Chapter3
