5 SEQUENCE INSTRUCTIONS
5.3 Output Instructions
Values used for timers can be set in the range 1 to 32767. Actual timer constants are as follows since the
OUT, OUTH, and OUTHS instructions operate as 100 ms, 10 ms, and 1 ms timers, respectively.
• OUT instruction: 0.1 to 3276.7 seconds
• OUTH instruction: 0.01 to 327.67 seconds
• OUTHS instruction: 0.001 to 32.767 seconds
For the counting method, refer to the following.
MELSEC iQ-F FX5 Series User's Manual [Application]
Precautions

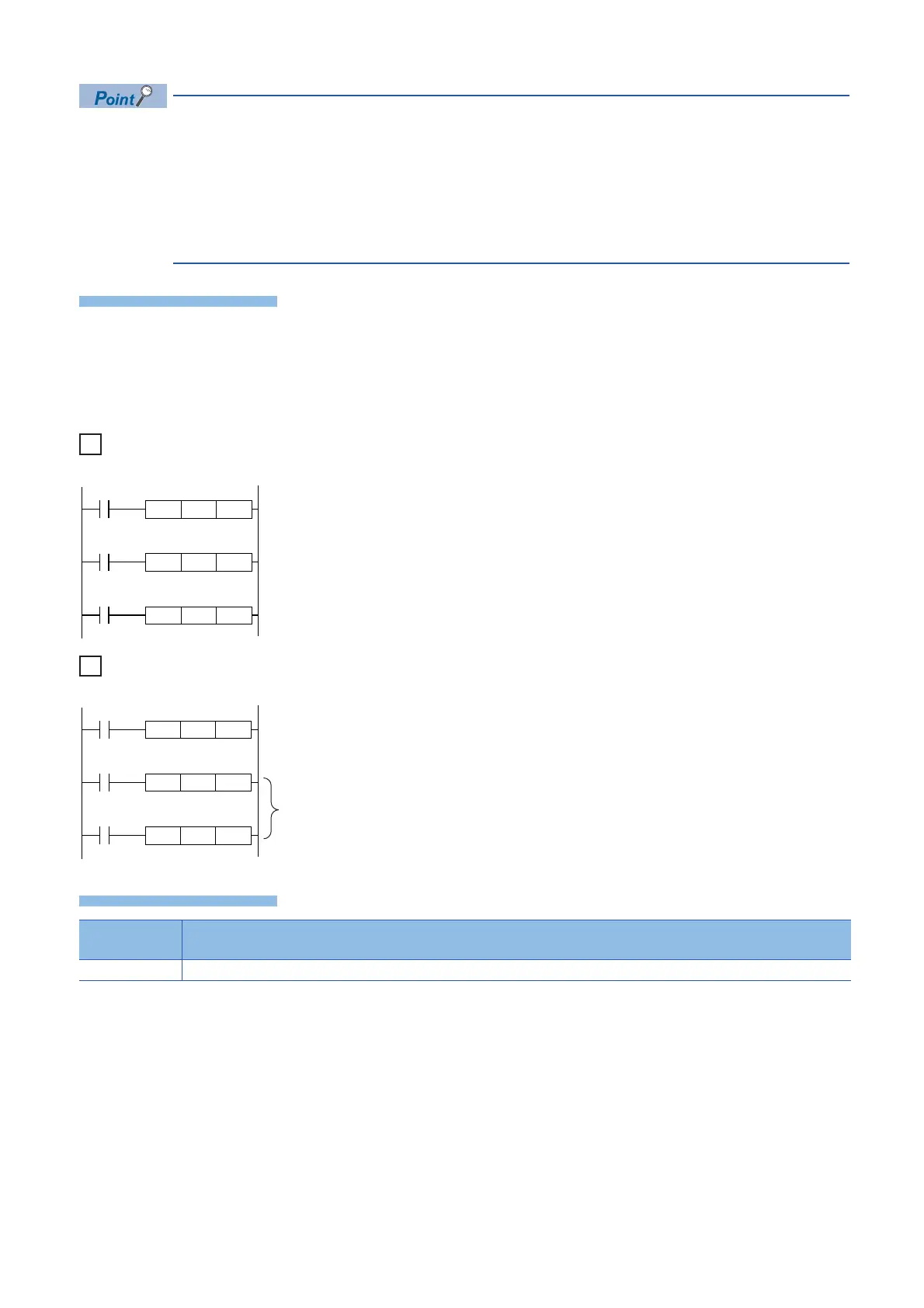

When creating a program for measuring another timer at a timer contact, program in order starting with the timer to be
measured later on. In the following instance, all timers turn on in the same scan when the program is created in the
measurement order.
• When the set value is shorter than the scan time
• When the set value is 1
Ex.
When the T0 to T2 timers are programmed in order from the timer that is measured later
Ex.
When the T0 to T2 timers are programmed in measurement order
Operation error
(1) The T2 timer starts measurement from the scan following the scan where the T1
contact turns ON.
(2) The T1 timer starts measurement from the scan following the scan where the T0
contact turns ON.
(3) The T0 timer starts measurement when X0 turns ON.
(1) The T0 timer starts measurement when X0 turns ON.
(2) The contacts of the T1 and T2 timers also turn on when the contact of T0 turns ON.
Error code
(SD0/SD8067)
Remarks
3405 A negative value is specified for the timer value.
T1
T0
X0
(1)
(2)
(3)
T2OUT
K1
T1OUT
K1
T0OUT
K1
X0
T0
T1
(1)
(2)
T0OUT
K1
T1OUT
K1
T2OUT
K1
