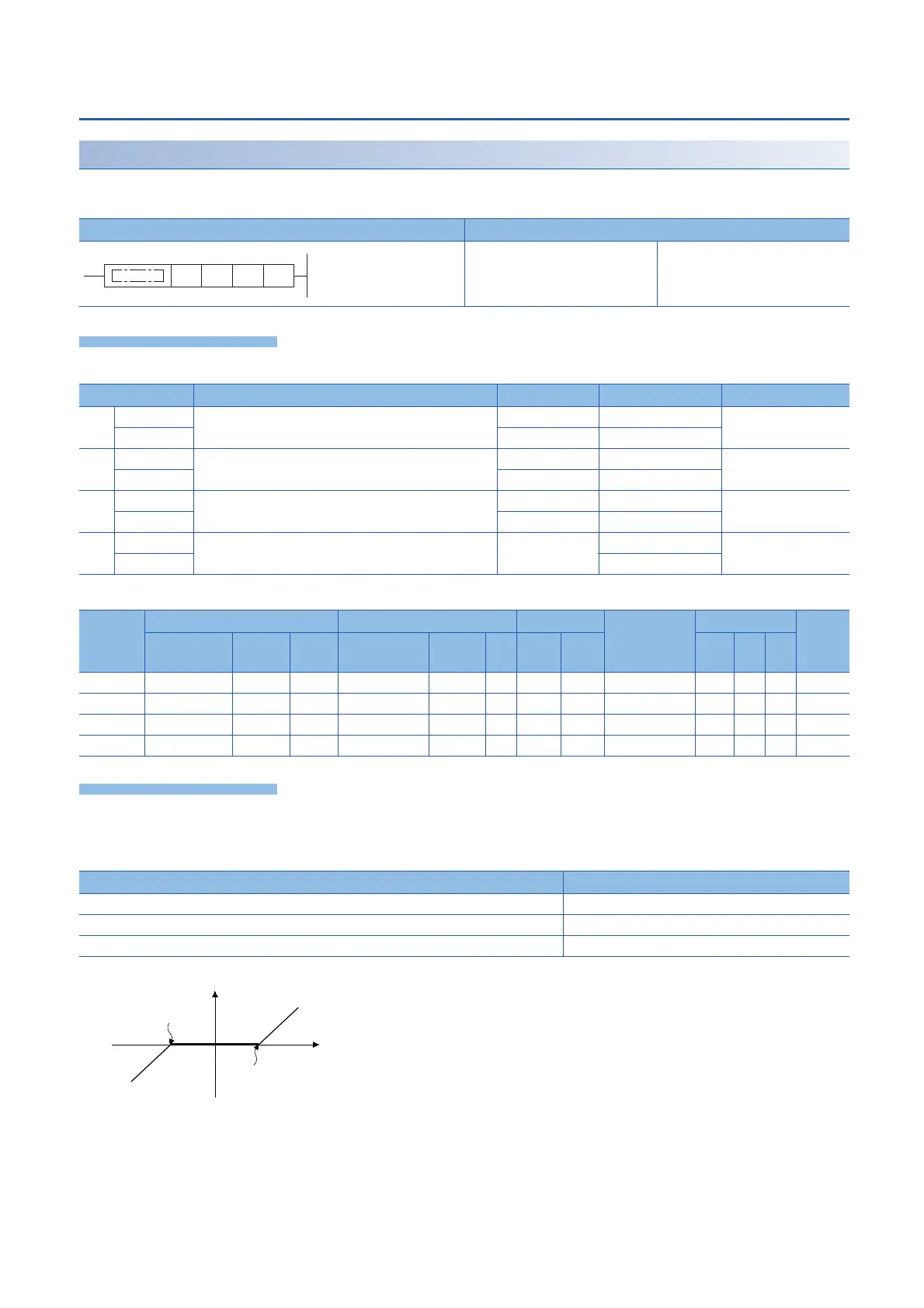

Mitsubishi MELSEC iQ-F FX5 series User Manual

476
7 APPLICATION INSTRUCTION
7.10 Data control instruction
Dead band control of 16-bit binary data
BAND(P)(_U)
These instructions control the output value to be stored in the device specified by (d) by checking the input value (16-bit binary
data) in the device specified by (s3) with the upper and lower limit values of the dead band specified by (s1) and (s2).
Setting data
■Descriptions, ranges, and data types
■Applicable devices
Processing details
• These instructions control the output value to be stored in the device specified by (d) by checking the input value (16-bit
binary data) in the device specified by (s3) with the upper and lower limit values of the dead band specified by (s1) and (s2).
The output value is controlled as follows.
• When the output value to be stored in the device specified by (d) is a 16-bit signed binary value and the operation result
exceeds the range of -32768 to 32767, the output value is calculated as follows.
Ladder diagram Structured text
ENO:=BAND(EN,s1,s2,s3,d);
ENO:=BANDP(EN,s1,s2,s3,d);
ENO:=BAND_U(EN,s1,s2,s3,d);
ENO:=BANDP_U(EN,s1,s2,s3,d);
Operand Description Range Data type Data type (label)
(s1) BAND(P) Lower limit value of the dead band (no-output band) -32768 to +32767 16-bit signed binary ANY16
BAND(P)_U 0 to 65535 16-bit unsigned binary
(s2) BAND(P) Upper limit value of the dead band (no-output band) -32768 to +32767 16-bit signed binary ANY16
BAND(P)_U 0 to 65535 16-bit unsigned binary
(s3) BAND(P) Input value controlled by the dead band -32768 to +32767 16-bit signed binary ANY16
BAND(P)_U 0 to 65535 16-bit unsigned binary
(d) BAND(P) Head device number for storing the output value controlled
by the dead band
 16-bit signed binary ANY16
BAND(P)_U 16-bit unsigned binary
Operand Bit Word Double word Indirect
specification
Constant Others
X, Y, M, L,
SM, F, B, SB
U\G T, ST,
C, LC
T, ST, C, D,
W, SD, SW, R
U\G Z LC LZ K, H E $
(s1)       
(s2)       
(s3)       
(d)       
Condition Output value
Lower limit value of the dead band (s1) > Input value (s3) Input value (s3) - Lower limit value of the dead band (s1)
Upper limit value of the dead band (s2) < Input value (s3) Input value (s3) - Upper limit value of the dead band (s2)
Lower limit value of the dead band (s1)  Input value (s3)  Upper limit value of the dead band (s2) 0
(s1) (s2) (s3) (d)
0
Output value (d)
Input value (s3)
Lower limit value of
the dead band (s1)
Upper limit value of
the dead band (s2)
