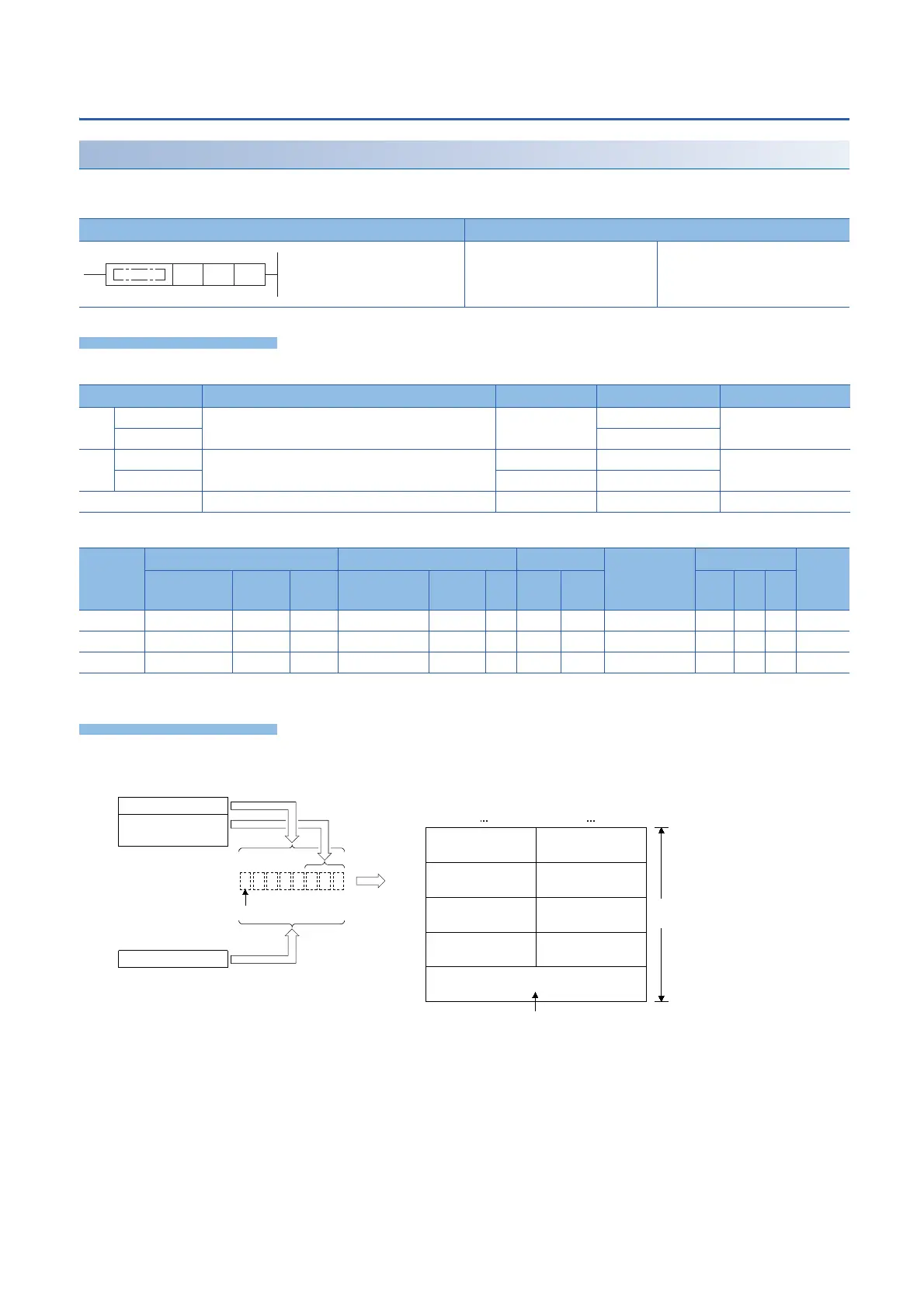

7.6 Character string operation instruction
Converting 16-bit binary data to character string
STR(P)(_U)
These instructions add a decimal point to the 16-bit binary data in the device specified by (s2) at the location specified by (s1),
convert the data to character string data, and store the converted data in the device areas specified by (d) and later.
■Descriptions, ranges, and data types
■Applicable devices
*1 T, ST, C cannot be used.
• These instructions add a decimal point to the 16-bit binary data in the device specified by (s2) at the location specified by
(s1), convert the data to character string data, and store the converted data in the device areas specified by (d) and later.
• The total number of digits that can be specified by (s1) is 2 to 8.
• The number of digits in the decimal part that can be specified by (s1)+1 is 0 to 5. Note that the number of digits in the
decimal part must be smaller than or equal to the total number of digits minus 3.
Ladder diagram Structured text
ENO:=STR(EN,s1,s2,d);
ENO:=STRP(EN,s1,s2,d);
ENO:=STR_U(EN,s1,s2,d);
ENO:=STRP_U(EN,s1,s2,d);
Operand Description Range Data type Data type (label)
(s1) STR(P) Head device number where the number of digits of the
conversion target data is stored
16-bit signed binary ANY16
STR(P)_U 16-bit unsigned binary
(s2) STR(P) Conversion target data -32768 to +32767 16-bit signed binary ANY16
STR(P)_U 0 to 65535 16-bit unsigned binary
(d) Head device number for storing the converted data Character string Character string
Operand Bit Word Double word Indirect
specification
Constant Others
X, Y, M, L,
SM, F, B, SB
U\G T, ST,
C, LC
T, ST, C, D,
W, SD, SW, R
U\G Z LC LZ K, H E $
(s1)
(s2)
(d)
*1
(s1)+1
b15 b8 b7 b0
0000H
.
(d)+4
(d)+3
(d)+2
(d)+1
(d)
(s2)
(s1)
Total number of digits
"0000H" is automatically stored at the end of the character string.
ASCII code for sign
For specifying number of all digits
16-bit binary data
Sign
Number of digits of
decimal part
ASCII code in "(Value
specifying number of
all digits - 1)"th digit
ASCII code in "(Value
specifying number of
all digits - 3)"th digit
ASCII code in "(Value
specifying number of
all digits - 2)"th digit
ASCII code in "(Value
specifying number of
all digits - 5)"th digit
ASCII code in "(Value
specifying number of
all digits - 4)"th digit
ASCII code in "(Value
specifying number of
all digits - 7)"th digit
ASCII code in "(Value
specifying number of
all digits - 6)"th digit
