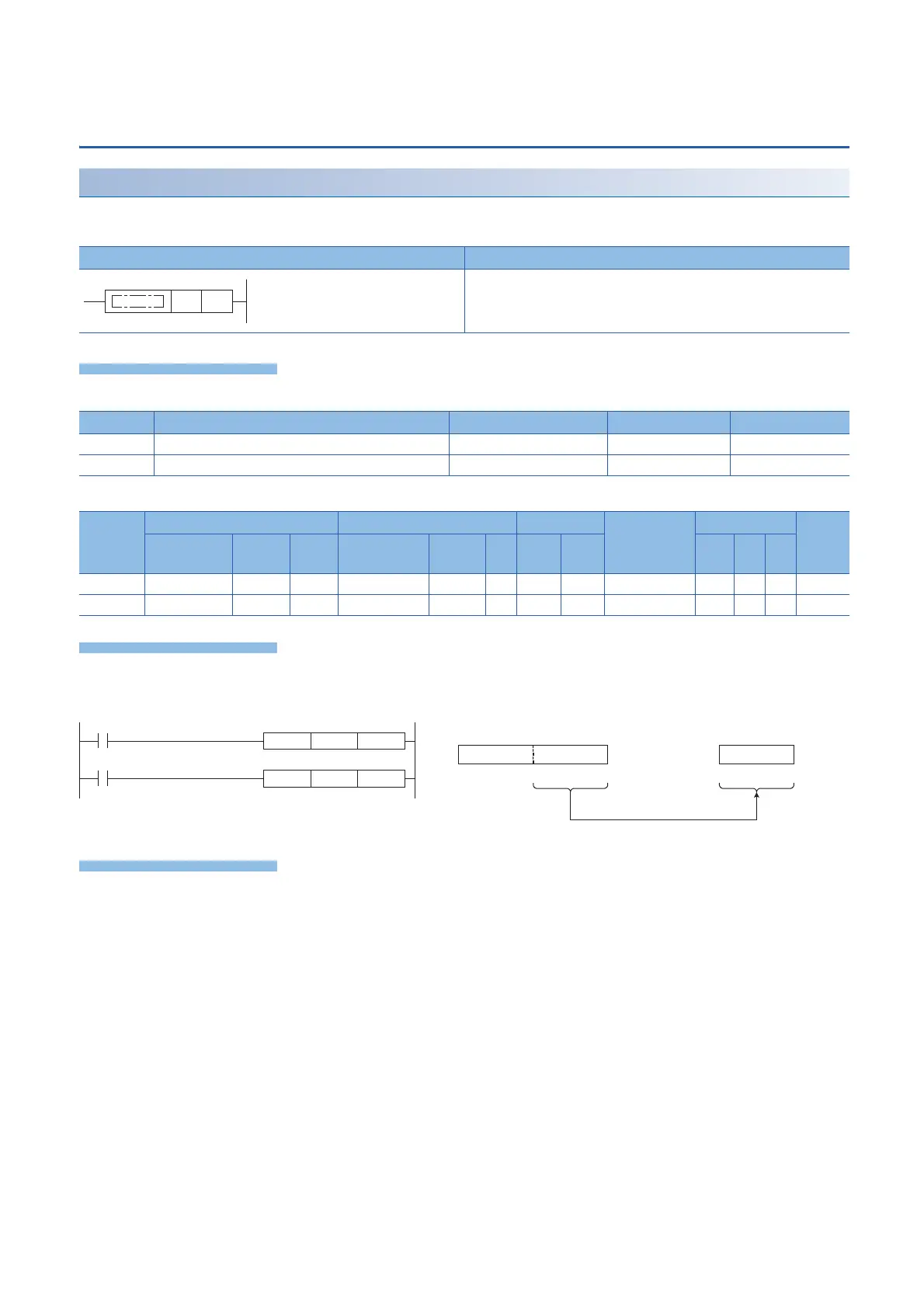

6 BASIC INSTRUCTIONS
6.5 Data Conversion Instructions
Converting 32-bit unsigned binary data to 16-bit unsigned binary
data
UDINT2UINT(P)
These instructions convert the 32-bit unsigned binary data in the device specified by (s) to 16-bit unsigned binary data, and
store the converted data in the device specified by (d).
Setting data
■Descriptions, ranges, and data types
■Applicable devices
Processing details
• These instructions convert the 32-bit unsigned binary data in the device specified by (s) to 16-bit unsigned binary data, and
store the converted data in the device specified by (d).
Operation error
There is no operation error.
Ladder diagram Structured text
Not supported
Operand Description Range Data type Data type (label)
(s) Data before conversion  32-bit unsigned binary ANY32_U
(d) Data after conversion  16-bit unsigned binary ANY16_U
Operand Bit Word Double word Indirect
specification
Constant Others
X, Y, M, L,
SM, F, B, SB
U\G T, ST,
C, LC
T, ST, C, D,
W, SD, SW, R
U\G Z LC LZ K, H E $
(s)       
(d)       
(s) (d)
SM402
M0
b31 b16
(1164413355)
89ABH4567HD1, D0
(d)
b15 b0
(35243)
89ABHD100
(s)
b15 b0
∙∙∙ ∙∙∙ ∙∙∙
(s) (d)
DMOVP
H456789AB D0
UDINT2UINT D0 D100
Before conversion After conversion
Stores in lower 16 bits
