Mitsubishi MELSEC iQ-F FX5 series User Manual

6 BASIC INSTRUCTIONS
6.5 Data Conversion Instructions
257
6

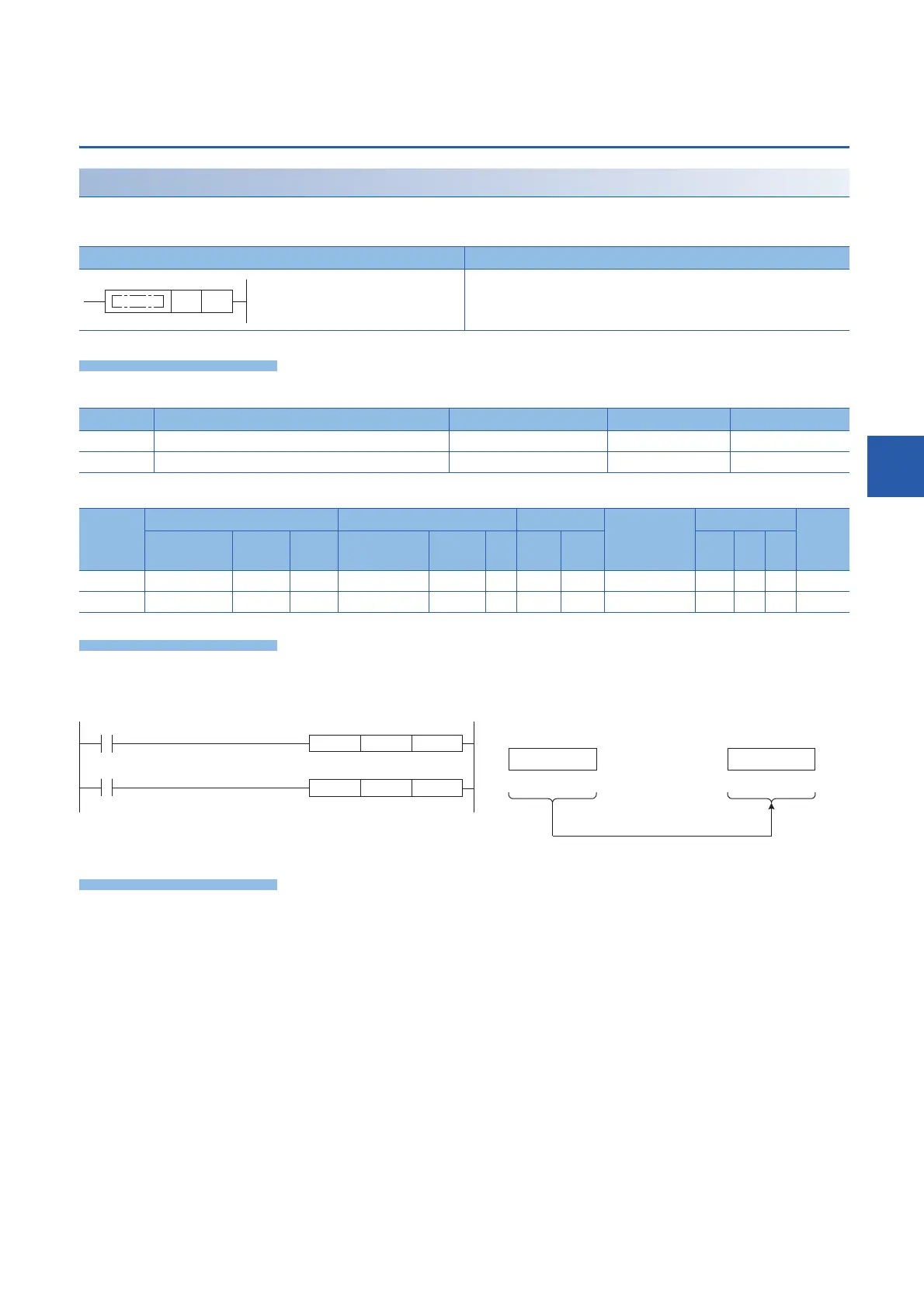

Converting 16-bit unsigned binary data to 16-bit signed binary
data
UINT2INT(P)
These instructions convert the 16-bit unsigned binary data in the device specified by (s) to 16-bit signed binary data, and store
the converted data in the device specified by (d).
Setting data
■Descriptions, ranges, and data types
■Applicable devices
Processing details
• These instructions convert the 16-bit unsigned binary data in the device specified by (s) to 16-bit signed binary data, and
store the converted data in the device specified by (d).
Operation error
There is no operation error.
Ladder diagram Structured text
Not supported
Operand Description Range Data type Data type (label)
(s) Data before conversion  16-bit unsigned binary ANY16_U
(d) Data after conversion  16-bit signed binary ANY16_S
Operand Bit Word Double word Indirect
specification
Constant Others
X, Y, M, L,
SM, F, B, SB
U\G T, ST,
C, LC
T, ST, C, D,
W, SD, SW, R
U\G Z LC LZ K, H E $
(s)       
(d)       
(s) (d)
SM402
M0
(d)
(-8192)
E000HD100
(s)
b15 b0
(57344)
E000HD0
b15 b0∙∙∙ ∙∙∙
(s) (d)
MOVP H0E000 D0
UINT2INT D0 D100
After conversion
Stores as is
Before conversion
