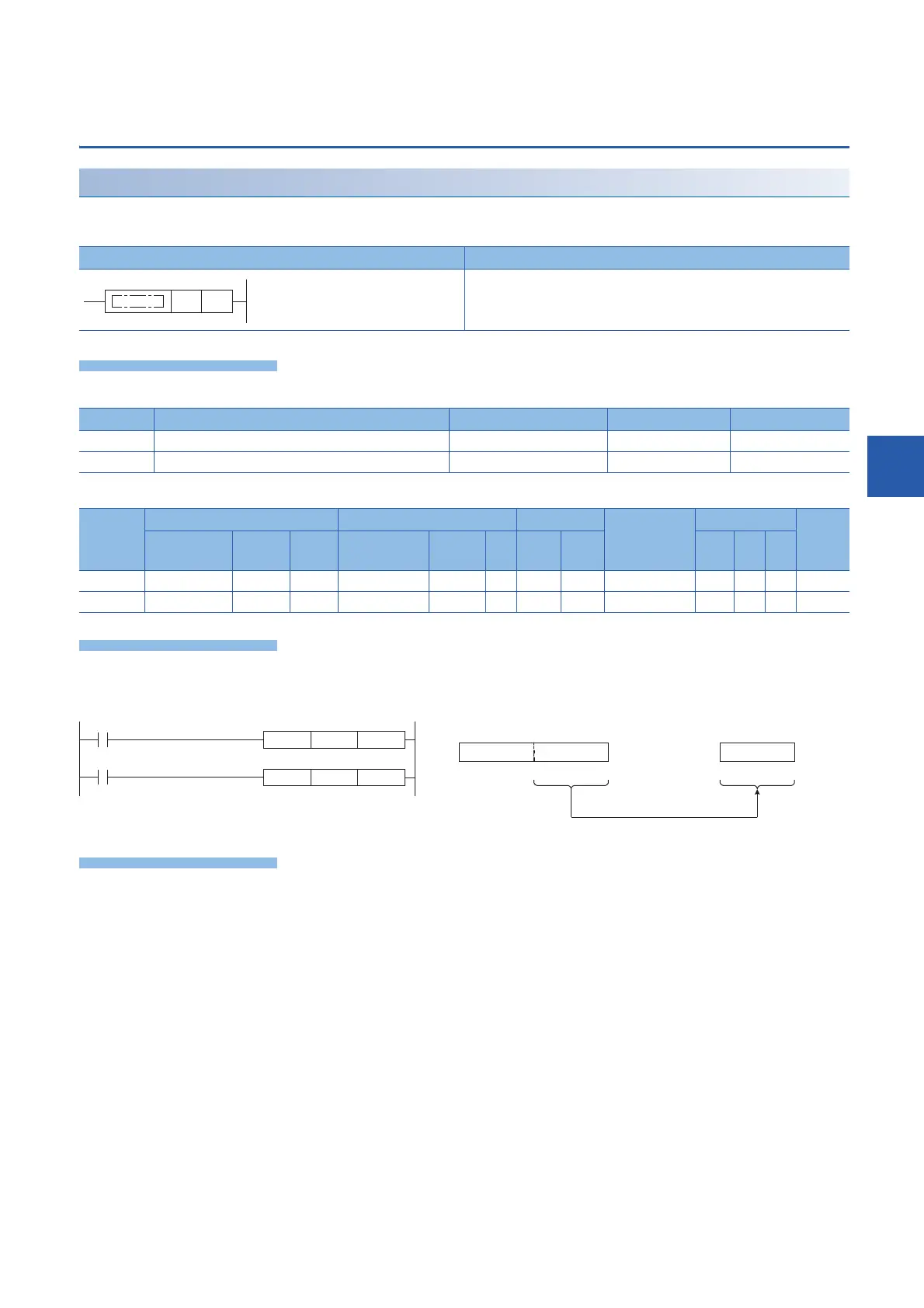

6 BASIC INSTRUCTIONS
6.5 Data Conversion Instructions
261
6
Converting 32-bit signed binary data to 16-bit unsigned binary
data
DINT2UINT(P)
These instructions convert the 32-bit signed binary data in the device specified by (s) to 16-bit unsigned binary data, and store
the converted data in the device specified by (d).
Setting data
Descriptions, ranges, and data types
Applicable devices
Processing details
These instructions convert the 32-bit signed binary data in the device specified by (s) to 16-bit unsigned binary data, and
store the converted data in the device specified by (d).
Operation error
There is no operation error.
Ladder diagram Structured text
Not supported
Operand Description Range Data type Data type (label)
(s) Data before conversion 32-bit signed binary ANY32_S
(d) Data after conversion 16-bit unsigned binary ANY16_U
Operand Bit Word Double word Indirect
specification
Constant Others
X, Y, M, L,
SM, F, B, SB
U\G T, ST,
C, LC
T, ST, C, D,
W, SD, SW, R
U\G Z LC LZ K, H E $
(s) 
(d) 
(s) (d)
SM402
M0
b31 b16
(-2023406815)
4321H8765HD1, D0
(d)
b15 b0
(17185)
4321HD100
(s)
b15 b0∙∙∙ ∙∙∙ ∙∙∙
(s) (d)
DMOVP
H87654321
D0
DINT2UINT
D0 D100
Before conversion After conversion
Stores in lower 16 bits
