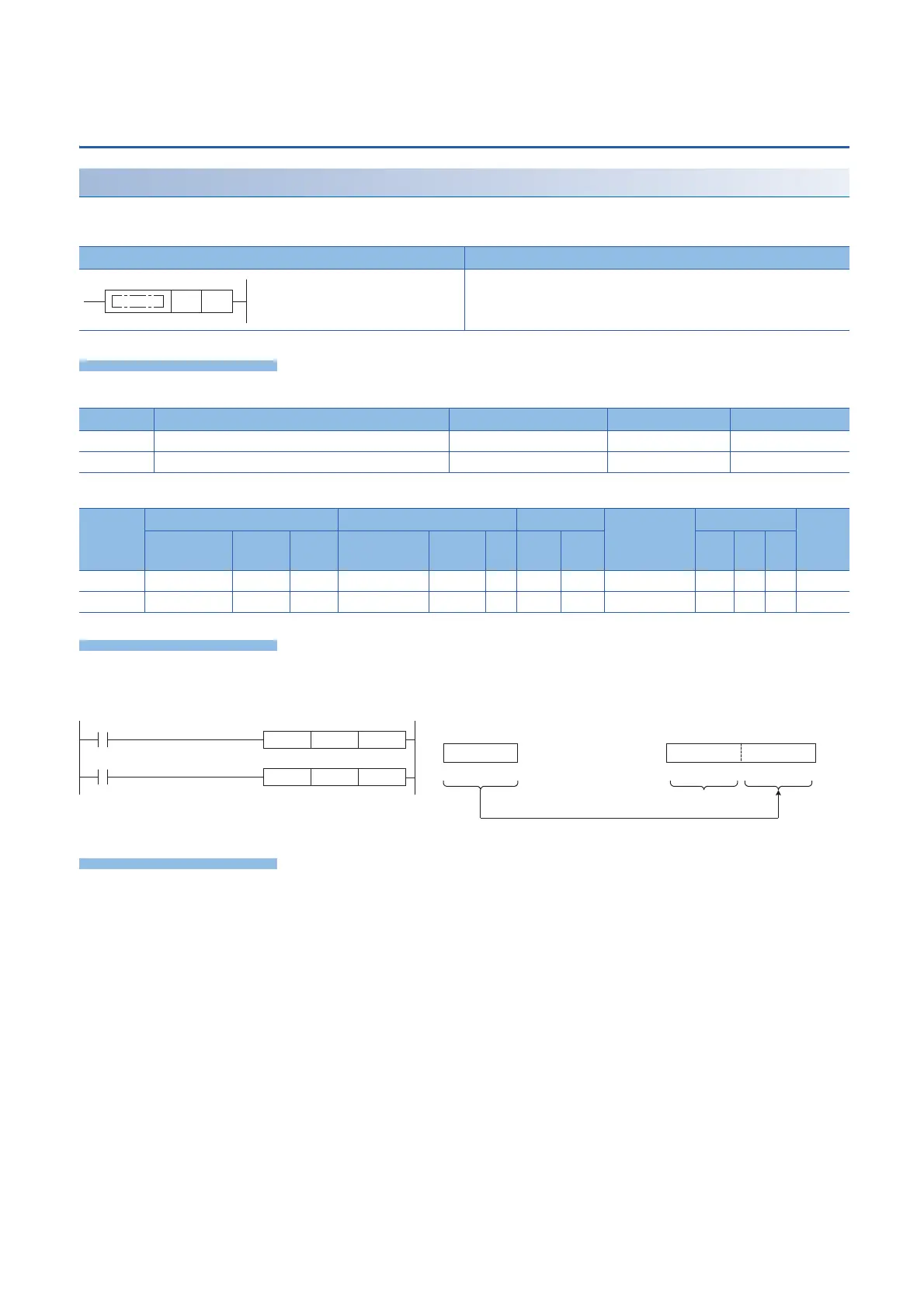

6 BASIC INSTRUCTIONS
6.5 Data Conversion Instructions
Converting 16-bit signed binary data to 32-bit unsigned binary
data
INT2UDINT(P)
These instructions convert the 16-bit signed binary data in the device specified by (s) to 32-bit unsigned binary data, and store
the converted data in the device specified by (d).
Setting data
■Descriptions, ranges, and data types
■Applicable devices
Processing details
• These instructions convert the 16-bit signed binary data in the device specified by (s) to 32-bit unsigned binary data, and
store the converted data in the device specified by (d).
Operation error
There is no operation error.
Ladder diagram Structured text
Not supported
Operand Description Range Data type Data type (label)
(s) Data before conversion  16-bit signed binary ANY16_S
(d) Data after conversion  32-bit unsigned binary ANY32_U
Operand Bit Word Double word Indirect
specification
Constant Others
X, Y, M, L,
SM, F, B, SB
U\G T, ST,
C, LC
T, ST, C, D,
W, SD, SW, R
U\G Z LC LZ K, H E $
(s)       
(d)       
(s) (d)
SM402
M0
(-24576)
b31 b16
(40960)
A000H A000H0000HD0
(s)
D101, D100
(d)
b15 b0b15 b0
∙∙∙ ∙∙∙ ∙∙∙
(s) (d)
MOVP H0A000 D0
INT2UDINT D0 D100
"0" is stored.
Before conversion After conversion
Stores in lower 16 bits
