Mitsubishi MELSEC iQ-F FX5 series User Manual

6 BASIC INSTRUCTIONS
6.3 Logical Operation Instructions
227
6

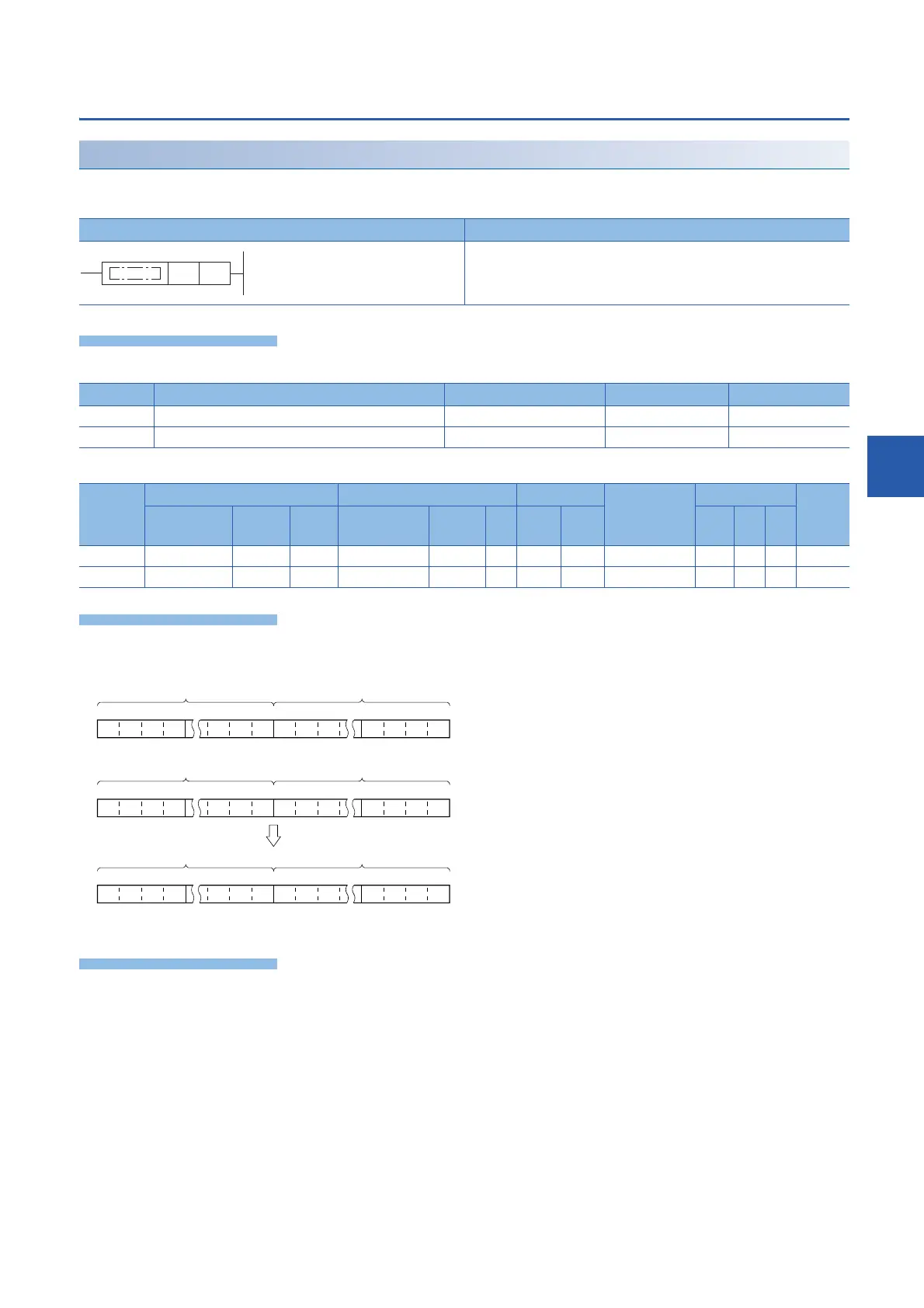

Performing an XOR operation on 32-bit data
DXOR(P) [using two operands]
These instructions exclusive OR each bit of 32-bit binary data from the device specified by (d) and each bit of 32-bit binary
data from device specified by (s), and store the results in the device specified by (d).
Setting data
■Descriptions, ranges, and data types
■Applicable devices
Processing details
• These instructions exclusive OR each bit of 32-bit binary data from the device specified by (d) and each bit of 32-bit binary
data from device specified by (s), and store the results in the device specified by (d).
• Bit devices subsequent to number of points by nibble specification are calculated as 0.
Operation error
There is no operation error.
Ladder diagram Structured text
Not supported
Operand Description Range Data type Data type (label)
(s) Data for exclusive OR or head device where data is stored -2147483648 to +2147483647 32-bit signed binary ANY32
(d) Head device for storing exclusive OR results -2147483648 to +2147483647 32-bit signed binary ANY32
Operand Bit Word Double word Indirect
specification
Constant Others
X, Y, M, L,
SM, F, B, SB
U\G T, ST,
C, LC
T, ST, C, D,
W, SD, SW, R
U\G Z LC LZ K, H E $
(s)       
(d)       
(s) (d)
···
···
···
···
···
···
b31
b31
b31
b16
b16
b16
b15
b15
b15 b0
b0
b0
XOR
0101 0101 10 0101
0110 0110 01 0110
0011 0 011 11 0 011
(d)+1 (d)
(s)+1 (s)
(d)+1 (d)
(d)
(d)
(s)
