5 SEQUENCE INSTRUCTIONS

5.5 Master Control Instruction

139

Master control instructions can be used in a nested fashion. Each master control section is distinguished by

nesting (N). Nesting is available within the range N0 to N14.

A nested structure allows you to create a ladder for successively restricting program execution conditions.

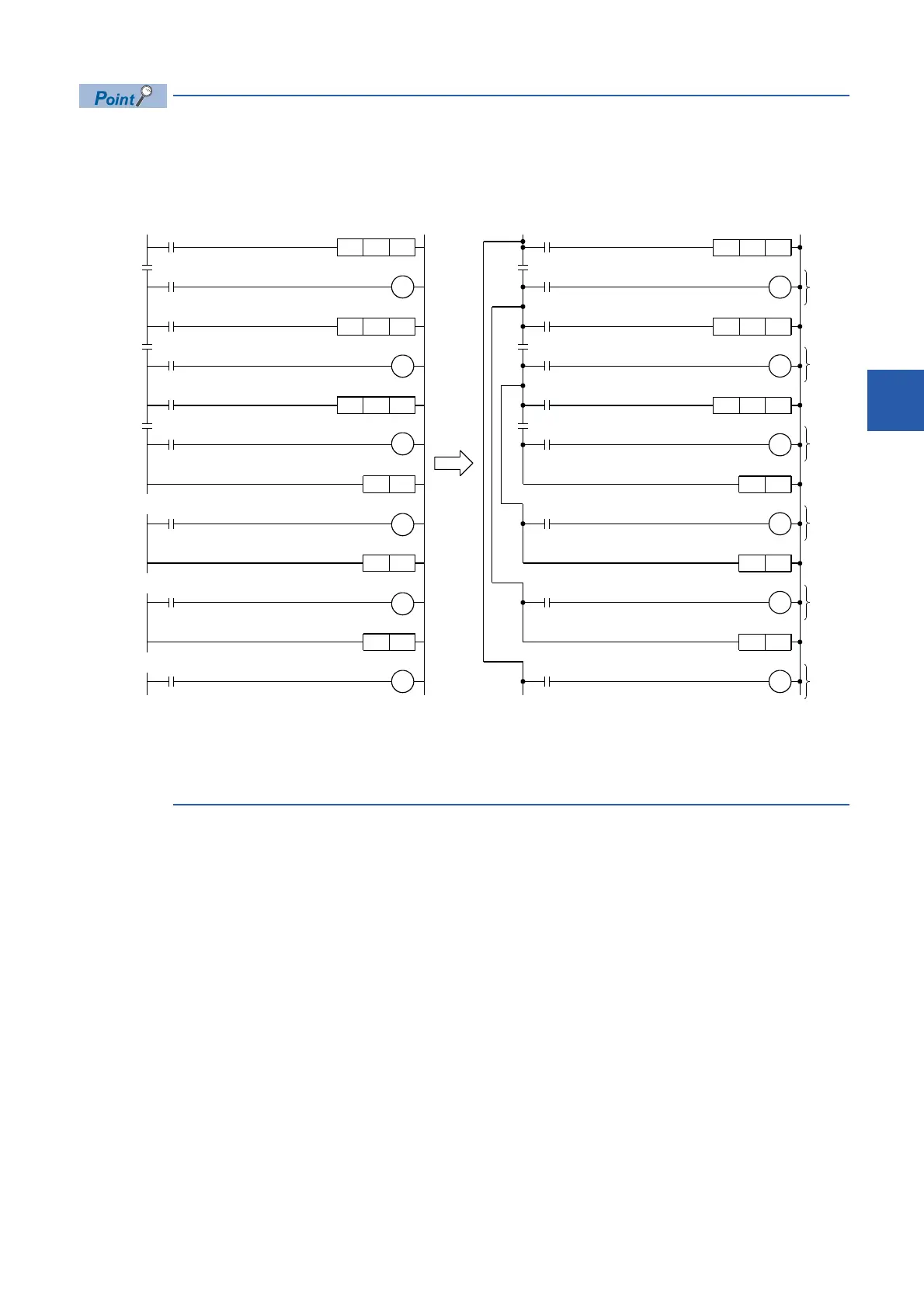

A nested structure ladder is illustrated as follows:

(1) Executed when A is ON

(2) Executed when A and B are ON

(3) Executed when A, B, and C are ON

(4) Regardless of A, B, and C

MC N0 M15

M16

N2 M17

MCR N2

MCR N1

MCR N0

M15

N1 M16

N2 M17

MC N0 M15

M16

MC N2 M17

MCR N2

MCR N1

MCR N0

M15

N1 M16

N2 M17

(1)

(2)

(3)

(2)

(1)

(4)

Display of engineering tool Actual operation circuit
