6 BASIC INSTRUCTIONS
6.3 Logical Operation Instructions
233
6

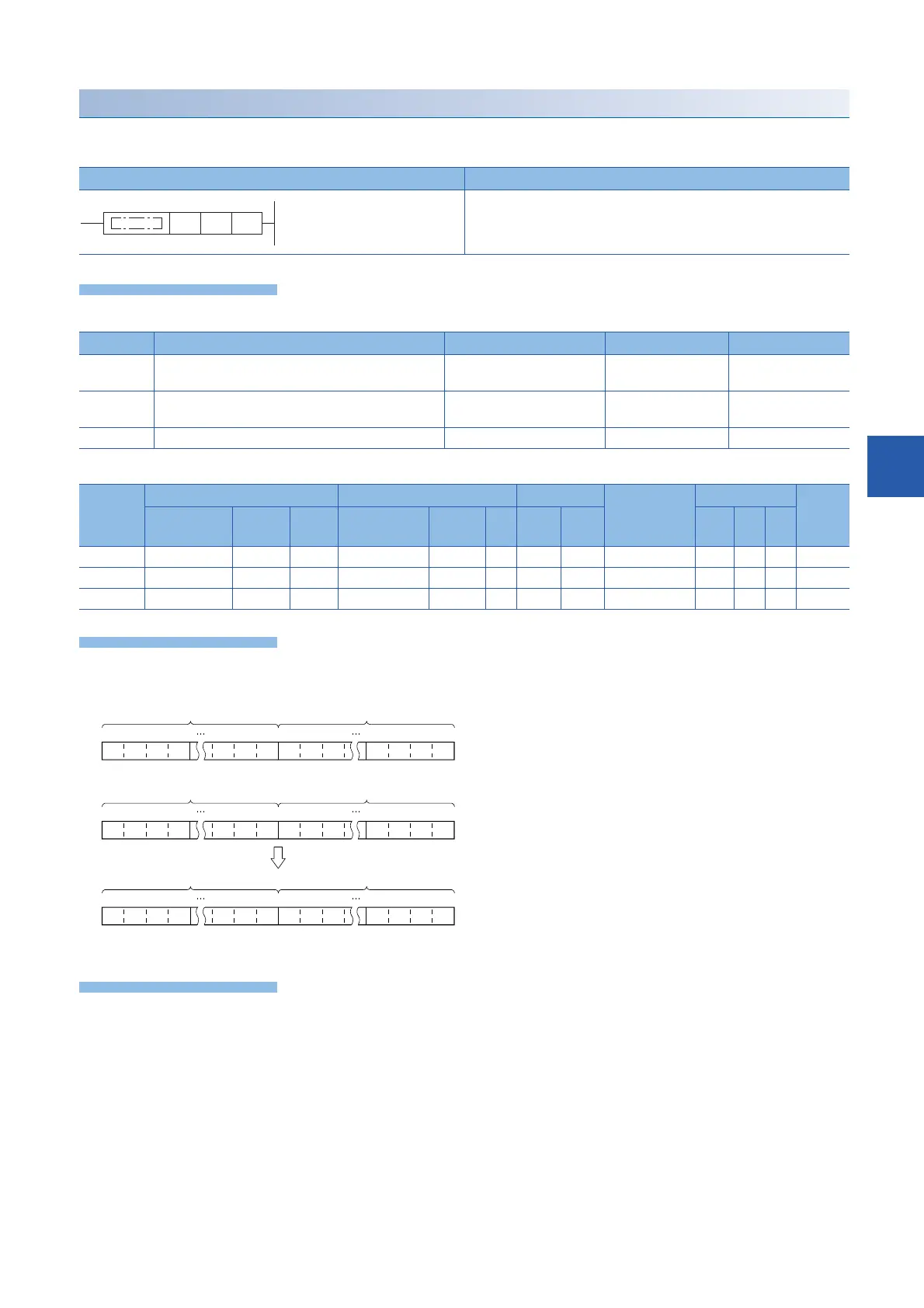

DXNR(P) [using three operands]
These instructions exclusive NOR each bit of 32-bit binary data from the device specified by (s1) and each bit of 32-bit binary
data from device specified by (s2), and store the results in the device specified by (d).
■Descriptions, ranges, and data types
■Applicable devices
• These instructions exclusive NOR each bit of 32-bit binary data from the device specified by (s1) and each bit of 32-bit
binary data from device specified by (s2), and store the results in the device specified by (d).
• Bit devices subsequent to number of points by nibble specification are calculated as 0.
There is no operation error.
Ladder diagram Structured text
ENO:=DXNR(EN,s1,s2,d);
ENO:=DXNRP(EN,s1,s2,d);
Operand Description Range Data type Data type (label)
(s1) Data for exclusive NOR or head device where data is
stored
-2147483648 to +2147483647 32-bit signed binary ANY32
(s2) Data for exclusive NOR or head device where data is
stored
-2147483648 to +2147483647 32-bit signed binary ANY32
(d) Head device for storing exclusive NOR results 32-bit signed binary ANY32
Operand Bit Word Double word Indirect
specification
Constant Others
X, Y, M, L,
SM, F, B, SB
U\G T, ST,
C, LC
T, ST, C, D,
W, SD, SW, R
U\G Z LC LZ K, H E $
(s1)
(s2)
(d)
b31
b31
b31
b16
b16
b16
b15
b15
b15 b0
b0
b0
XNOR
0011 0011 110011
0101 0101 100101
1001 1 001 10 1 001
(d)+1 (d)
(s2)+1 (s2)
(s1)+1 (s1)
(s1)
(d)
(s2)
