7 APPLICATION INSTRUCTION

7.7 Real Number Instruction

405

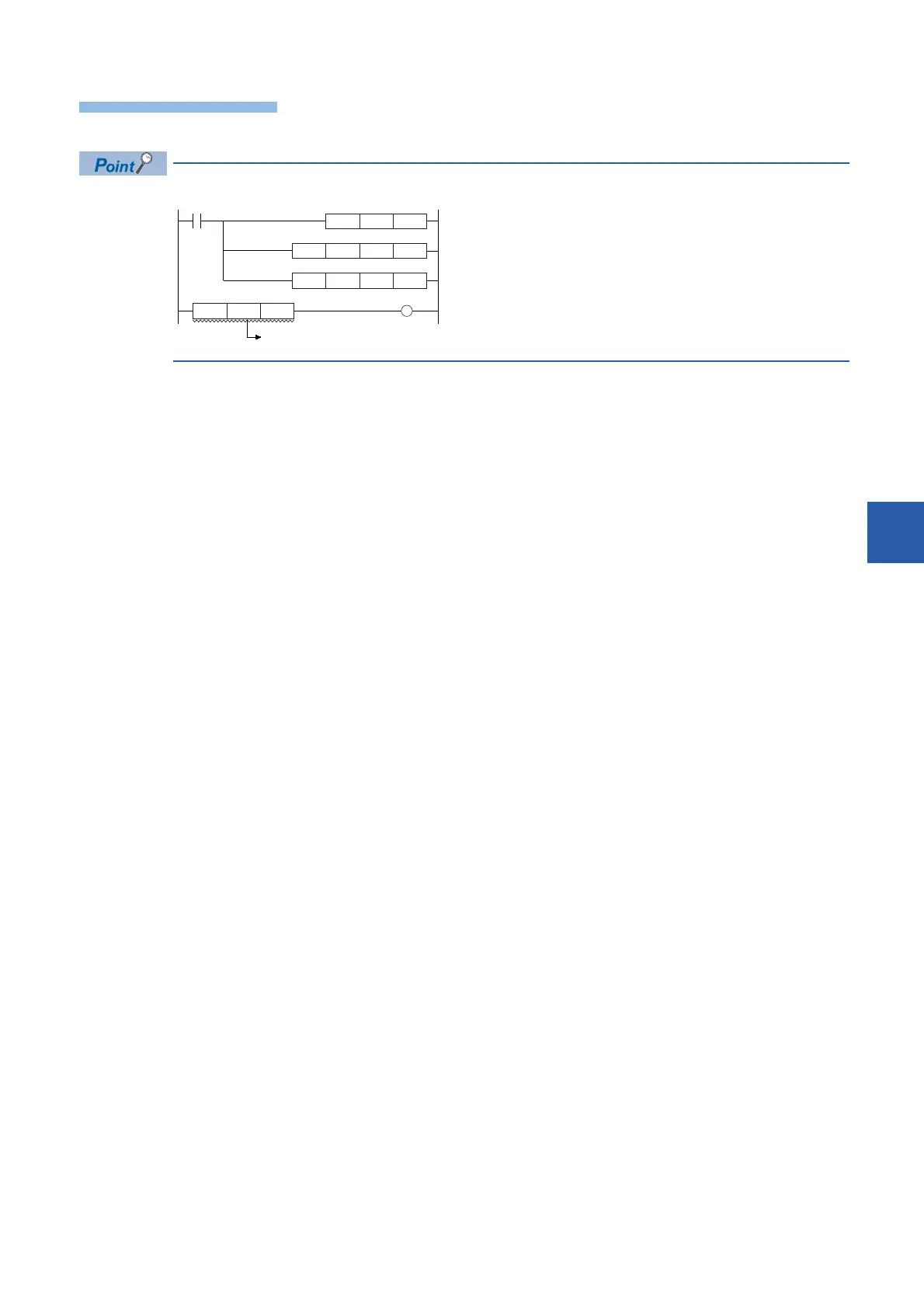

Operation error

There is no operation error.

When the E= instruction is used, note that values in the devices may not be equal.

EMOV

E1.23 D0

E* D0 E4.56 D2

E/ D2 E4.56 D2

E= D0 D2

Values in the devices may not be equal.
