Mitsubishi MELSEC iQ-F FX5 series

7 APPLICATION INSTRUCTION
7.10 Data control instruction
473
7

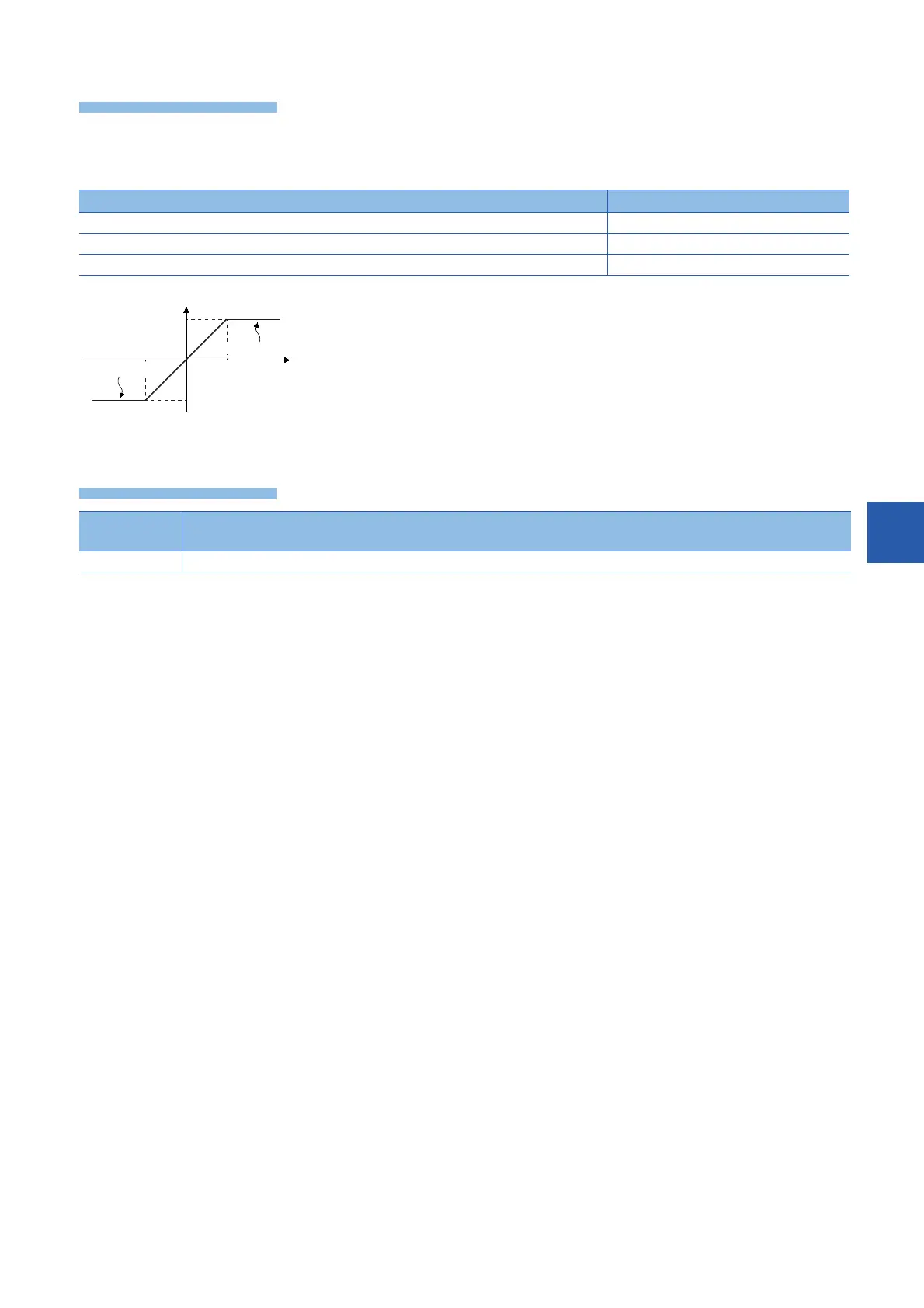

Processing details
• These instructions control the output value to be stored in the device specified by (d) by checking the input value (16-bit
binary data) in the device specified by (s3) with the upper and lower limit values specified by (s1) and (s2). The output value
is controlled as follows.
• To control the input value only with the upper limit, set the minimum value within the setting range in (s1).
• To control the input value only with the lower limit, set the maximum value within the setting range in (s2).
Operation error
Condition Output value
Lower limit value (s1) > Input value (s3) Lower limit value (s1)
Upper limit value (s2) < Input value (s3) Upper limit value (s2)
Lower limit value (s1)  Input value (s3)  Upper limit value (s2) Input value (s3)
Error code
(SD0/SD8067)
Description
3405 The lower limit value specified by (s1) is greater than the upper limit value specified by (s2).
0
Output value (d)
Input value (s3)
Lower limit value (s1)
Upper limit value (s2)
