27 TIMER FUNCTION BLOCKS
27.1 Timer Function Blocks
855
27

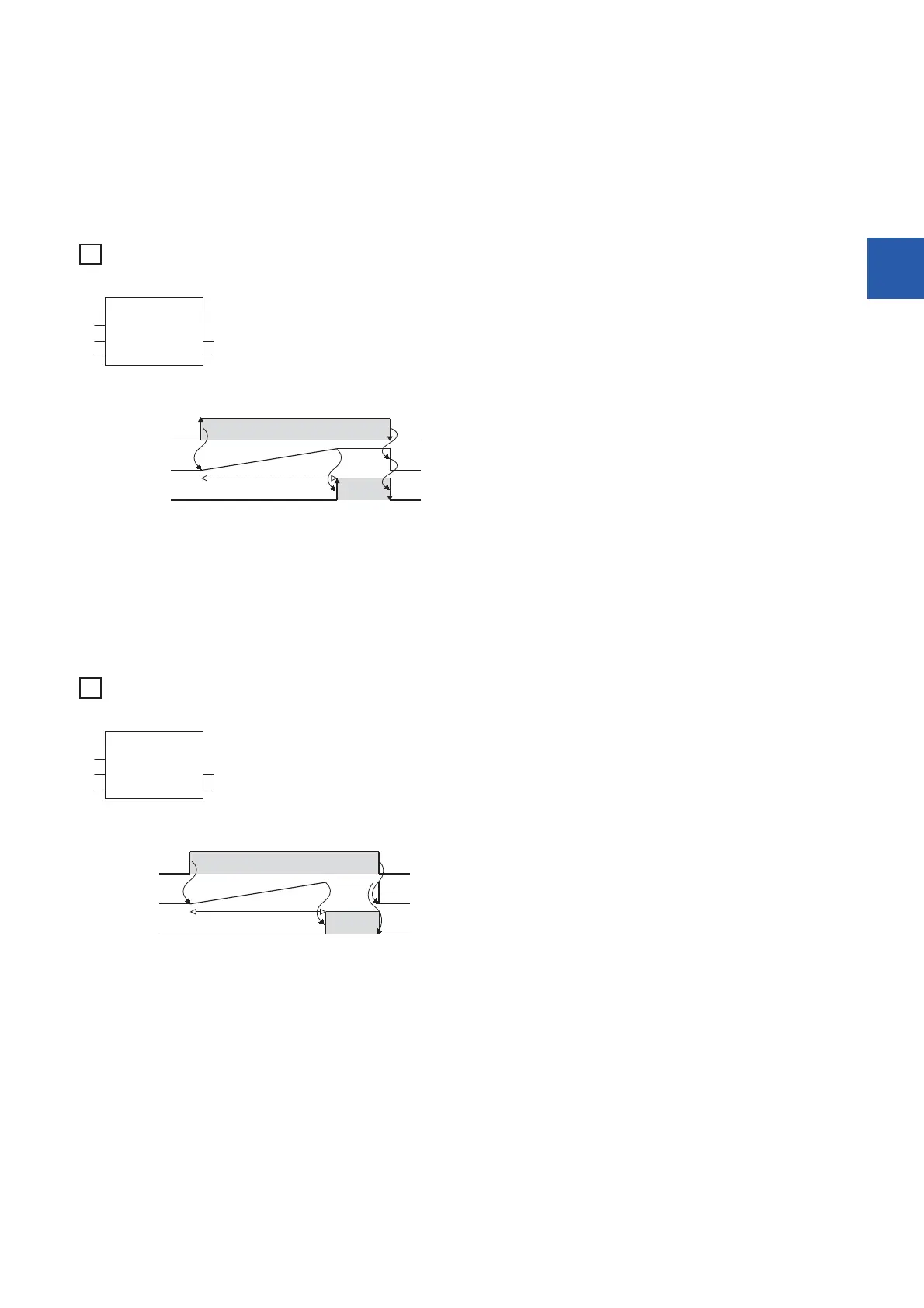

■TIMER_10_FB_M
• When the execution condition of (s1) turns on, counting the current value starts. The timer starts counting from "(s3)  10
ms". When it counts up to "(s2)  10 ms", (d2) turns on. The current measurement value is output into (d1).
• When the execution condition of (s1) turns off, the current value is reset to (s3) and (d2) turns off.
• A value in the range of 0 to 32767 can be specified for (s2).
• A value in the range of -32768 to 32767 can be specified for (s3). However, when a negative value is specified, the initial
value is set to 0.
Ex.
[Ladder example]
[Timing chart]
■TIMER_100_FB_M
• When the execution condition of (s1) turns on, counting the current value starts. The timer starts counting from "(s3)  100
ms". When it counts up to "(s2)  100 ms", (d2) turns on. The current measurement value is output into (d1).
• When the execution condition of (s1) turns off, the current value is reset to (s3) and (d2) turns off.
• A value in the range of 0 to 32767 can be specified for (s2).
• A value in the range of -32768 to 32767 can be specified for (s3). However, when a negative value is specified, the initial
value is set to 0.
Ex.
[Ladder example]
[Timing chart]
Preset ValueOut
StatusValueIn
TIMER_10_FB_M
Coll
1
10
M0
M10
D10
OFF
OFF
M0
Value of D10
M10
10
90 ms
ON
1
Preset ValueOut
StatusValueIn
TIMER_100_FB_M
Coll
1
10
M0
M10
D10
OFF
OFF
M0
Value of D10
M10
10
90 ms
ON
1
