Training Guide Course No. 196514
Level 2 Maintenance, X-1000 Series Dispensing Systems 3-25 P/N 196515 (Revision A)
Diagram Sheet 3-5-1

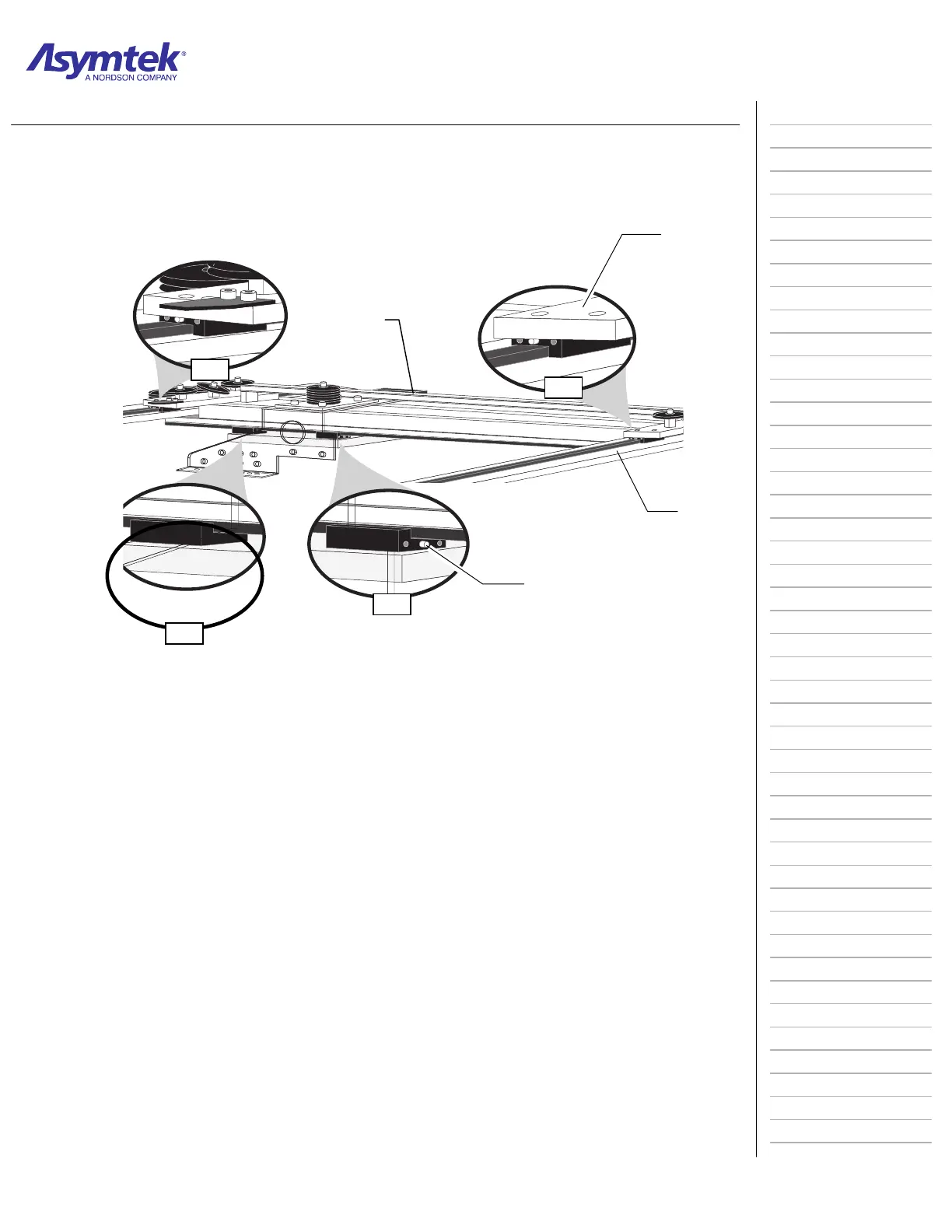

Lubricating the X-Beam and Y-Rail Linear Bearings
Linear Bearing
Car (1 of 8)
Y-Rail
Grease Fitting
(one at end of
each car)
X 2
X 2
X 2
X 2
X-Beam
