Nordson Asymtek X-1000 Series User Manual

Training Guide Course No. 196514
Level 2 Maintenance, X-1000 Series Dispensing Systems 1-23 P/N 196515 (Revision A)

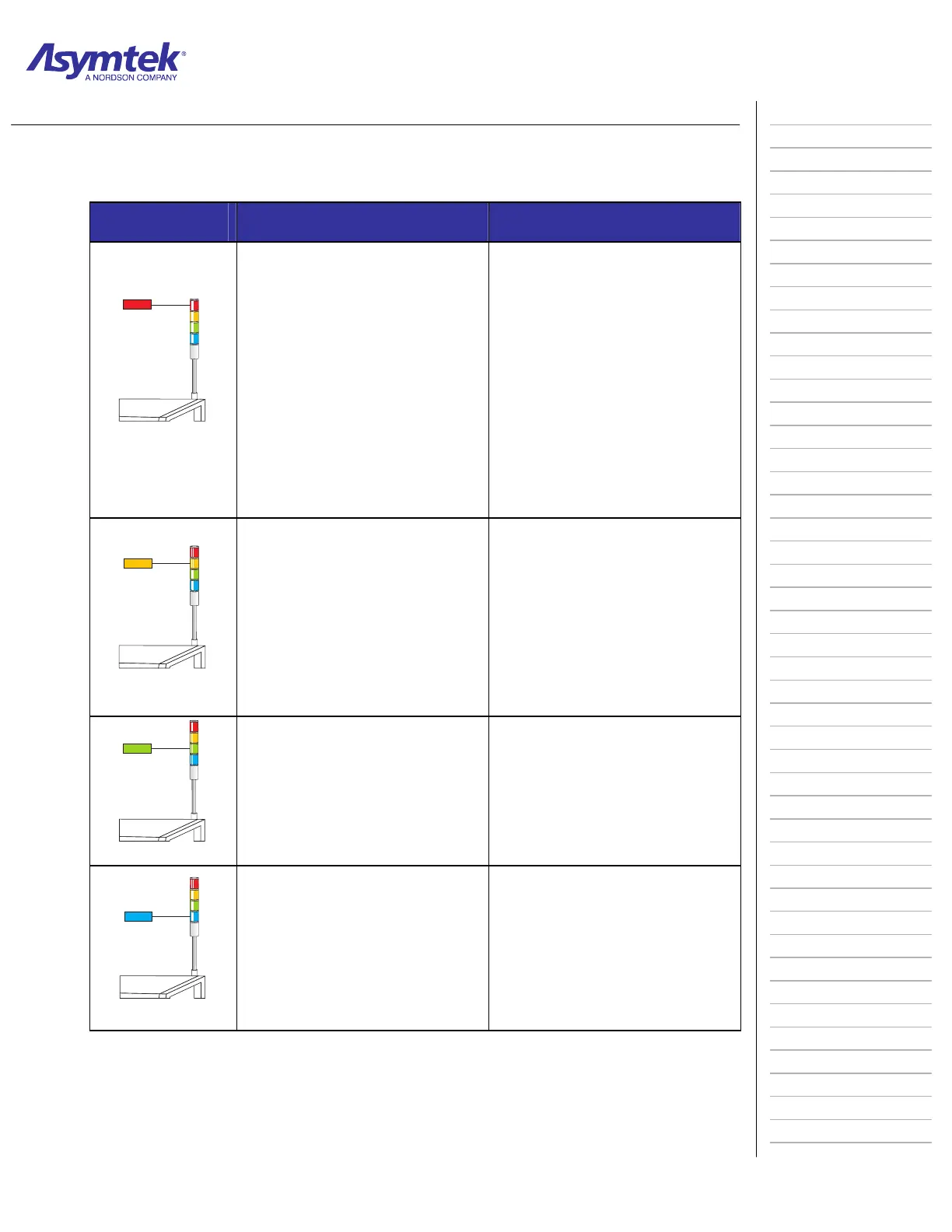

Table 1-5-1
Light Beacon Color Indications
Beacon Color Dispensing Status Recovery Procedures
ALERT
All motion, outputs, fluid pump, and
motion controls are disabled.
One of the following conditions exists:
A. Solid - System in an Emergency
Stop condition.
A. Restart machine.
Remedy anomaly causing the
E-stop.
Reset EMO button.
Perform an operator startup
B. Flashing - Software driven error
message displayed on computer
monitor.
B. Respond to error message.
Refer to FmNT Installation and
User Guide.
RED
(Audible Alarm)
C. Custom-programmed condition
has triggered red light.
C. Refer to programmer’s recovery
procedures.
CAUTION
System in a low power state or lacks
sufficient air pressure. One of the
following conditions exists:
A. Solid - Hatch is open. A. Close Hatch. Production run will
start where it left off.
B. Flashing - Low-Pressure sensor
has been activated.
B. Check facility air supply.
YELLOW
C. Custom-programmed condition
has triggered yellow light.
C. Refer to programmer’s recovery
procedures.
GREEN
OPERATION
The system is fully operational with
the Hatch closed.
Normal condition—no correction
needed.
USER DEFINED
(Examples Below)
A. Low fluid in syringe. A. System needs attention.
Replace with new syringe.
BLUE
B. Custom-programmed condition
has triggered blue light.
B. Refer to programmer’s recovery
procedures.
