Nordson Asymtek X-1000 Series User Manual

Training Guide Course No. 196514
Level 2 Maintenance, X-1000 Series Dispensing Systems 4-79 PN 1965155 (Revision A)
Are the Cables
damaged?
Visually inspect the following
cables for damage.
X-axis Linear Encoder Cable
(P/N 194985, top) and Y-axis
Linear Encoder Cable (P/N
194986, bottom) connected to
the XY Servo Interface PWA at
connection J23.
Manually verify that the X and Y-
axis Linear Encoder Cables are
securely connected to the XY
Servo Interface PWA at J23.
Are Linear Encoder
Cables securely
connected?
Visually inspect for damage the
Rubber Seal that runs the length
of the guide of Linear Encoders.
Are the Rubber Seals
of the Linear Encoders
damaged?
Using Linear Encoder Alignment
Tool (P/N 194983), check correct
gap between Linear Encoder
Guide and Reader.
Using Linear Encoder Alignment
Tool (P/N 194983), check correct
alignment between Linear
Encoder Guide and X-axis Beam.
Cable(s) (P/N 194985,
194986) have failed
No
Yes
Yes
Secure the cables before
proceeding.
No
No
Are the Linear
Encoders in need of
adjustment or
alignment?
Go to X-Axis Linear
Encoder Verification
Go to “Adjusting Linear
Encoder Gap” in Module 2.
Yes No
Y Linear Encoder (P/N
194986) and/or X Linear
Encoder (P/N 194985) has
failed.
Yes
Are the Cables
damaged?
Are the Cables
damaged?
Visually inspect the following
cables for damage.
X-axis Linear Encoder Cable
(P/N 194985, top) and Y-axis
Linear Encoder Cable (P/N
194986, bottom) connected to
the XY Servo Interface PWA at
connection J23.
Manually verify that the X and Y-
axis Linear Encoder Cables are
securely connected to the XY
Servo Interface PWA at J23.
Are Linear Encoder
Cables securely
connected?
Are Linear Encoder
Cables securely
connected?
Visually inspect for damage the
Rubber Seal that runs the length
of the guide of Linear Encoders.
Are the Rubber Seals
of the Linear Encoders
damaged?
Are the Rubber Seals
of the Linear Encoders
damaged?
Using Linear Encoder Alignment
Tool (P/N 194983), check correct
gap between Linear Encoder
Guide and Reader.
Using Linear Encoder Alignment
Tool (P/N 194983), check correct
alignment between Linear
Encoder Guide and X-axis Beam.
Cable(s) (P/N 194985,
194986) have failed
No
Yes
Yes
Secure the cables before
proceeding.
No
No
Are the Linear
Encoders in need of
adjustment or
alignment?
Are the Linear
Encoders in need of
adjustment or
alignment?
Go to X-Axis Linear
Encoder Verification
Go to “Adjusting Linear
Encoder Gap” in Module 2.
Yes No
Y Linear Encoder (P/N
194986) and/or X Linear
Encoder (P/N 194985) has
failed.
Yes

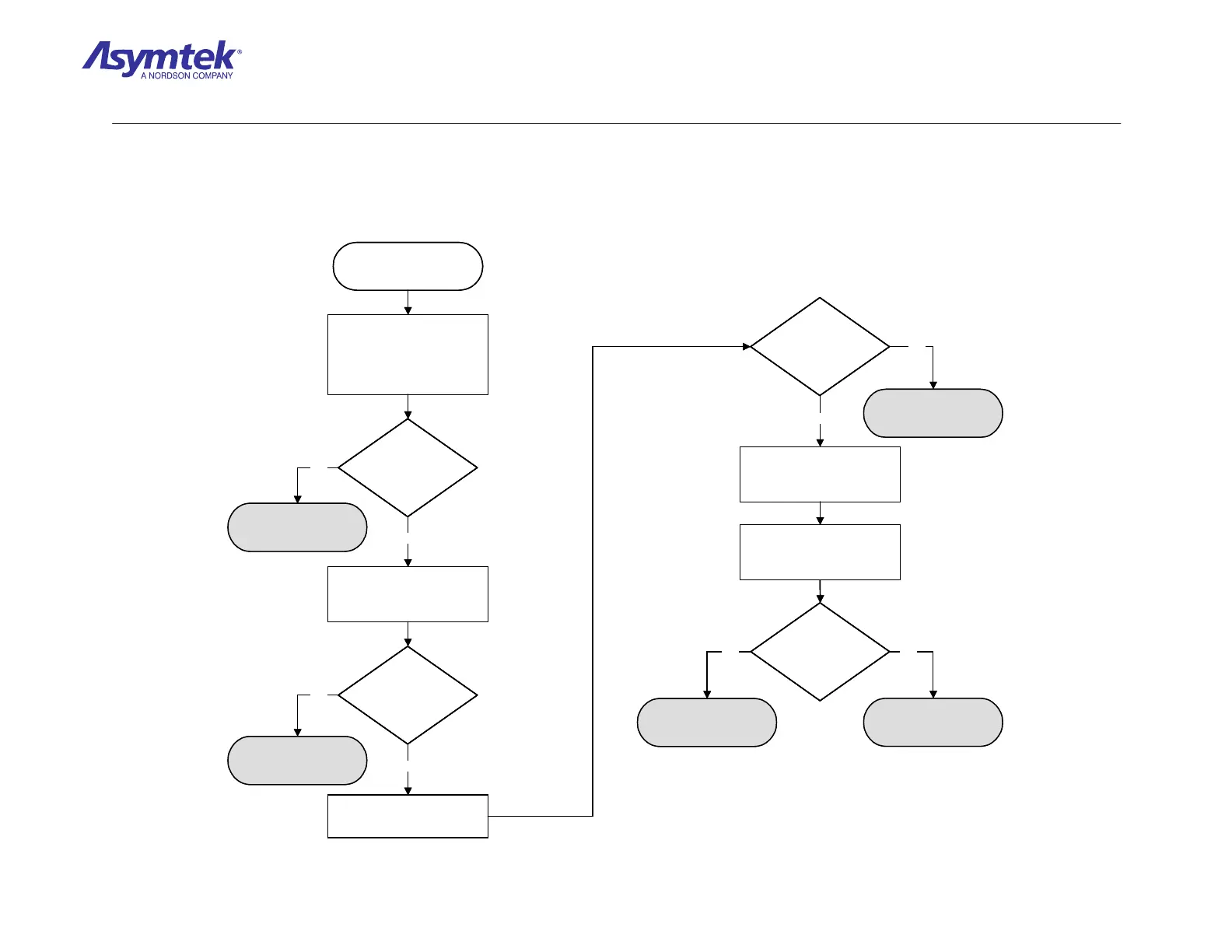

Diagram Sheet 4-6-10
PMAC Linear Encoders Fault Isolation Procedure – Linear Encoder Mechanical Verification
