Nordson Asymtek X-1000 Series User Manual

Training Guide Course No. 196514
Level 2 Maintenance, X-1000 Series Dispensing Systems 4-102 P/N 196515 (Revision A)
Fiber-optic Cable (P/N 56-
0124) has failed.
Exit FmNT, shut down
Windows NT and press the
black OFF (0) button on the
Operator’s Console
Does Board
Sensor status LED
illuminate when a
workpiece is passed
by it?
Switch Main Circuit Breaker
to OFF (0) position, and
disconnect Power Cable from
the facility outlet
Manually move the
Dispensing Head to the rear
of the dispensing area and
then remove the Dispensing
Area Front Cover.
Connect the Power Cable to
the facility outlet, switch Main
Circuit Breaker to ON (I)
position, press the green ON
(I) button on the Operator’s
Console, and enter FmNT.
Check the Board Sensor for
proper position and beam
direction.
Is Sensor
beam hitting upper
portion of Conveyor
Rails or going through
Carrier holes?
Adjust the Board Sensor
position.
Adjust the Board Sensor
sensitivity
Does Board
Sensor status LED
illuminate when a
workpiece is passed
by it?
Inspect the Fiber-optic
Cables for any damage that
will interfere with light
transmission.
Is the Fiber-optic
Cable damaged?
Attach the Fiber-optic Cable
from the failed Board Sensor
to one of the other Board
Sensors.
Did the error follow
the exchanged Fiber-
optic Cable?
Did the error stay
with the Board Sensor
Amplifier?
A
A
A
Fiber-optic Cable (P/N 56-
0124) has failed.
Stop! The Fiber-optic
Cable is not
root cause of
the fault.
Yes
No
Yes
Yes
No
Yes
No
Yes
No
No
Yes
No
Fiber-optic Cable (P/N 56-
0124) has failed.
Exit FmNT, shut down
Windows NT and press the
black OFF (0) button on the
Operator’s Console
Does Board
Sensor status LED
illuminate when a
workpiece is passed
by it?
Does Board
Sensor status LED
illuminate when a
workpiece is passed
by it?
Switch Main Circuit Breaker
to OFF (0) position, and
disconnect Power Cable from
the facility outlet
Manually move the
Dispensing Head to the rear
of the dispensing area and
then remove the Dispensing
Area Front Cover.
Connect the Power Cable to
the facility outlet, switch Main
Circuit Breaker to ON (I)
position, press the green ON
(I) button on the Operator’s
Console, and enter FmNT.
Check the Board Sensor for
proper position and beam
direction.
Is Sensor
beam hitting upper
portion of Conveyor
Rails or going through
Carrier holes?
Is Sensor
beam hitting upper
portion of Conveyor
Rails or going through
Carrier holes?
Adjust the Board Sensor
position.
Adjust the Board Sensor
sensitivity
Does Board
Sensor status LED
illuminate when a
workpiece is passed
by it?
Does Board
Sensor status LED
illuminate when a
workpiece is passed
by it?
Inspect the Fiber-optic
Cables for any damage that
will interfere with light
transmission.
Is the Fiber-optic
Cable damaged?
Is the Fiber-optic
Cable damaged?
Attach the Fiber-optic Cable
from the failed Board Sensor
to one of the other Board
Sensors.
Did the error follow
the exchanged Fiber-
optic Cable?
Did the error follow
the exchanged Fiber-
optic Cable?
Did the error stay
with the Board Sensor
Amplifier?
Did the error stay
with the Board Sensor
Amplifier?
A
A
A
Fiber-optic Cable (P/N 56-
0124) has failed.
Stop! The Fiber-optic
Cable is not
root cause of
the fault.
Yes
No
Yes
Yes
No
Yes
No
Yes
No
No
Yes
No

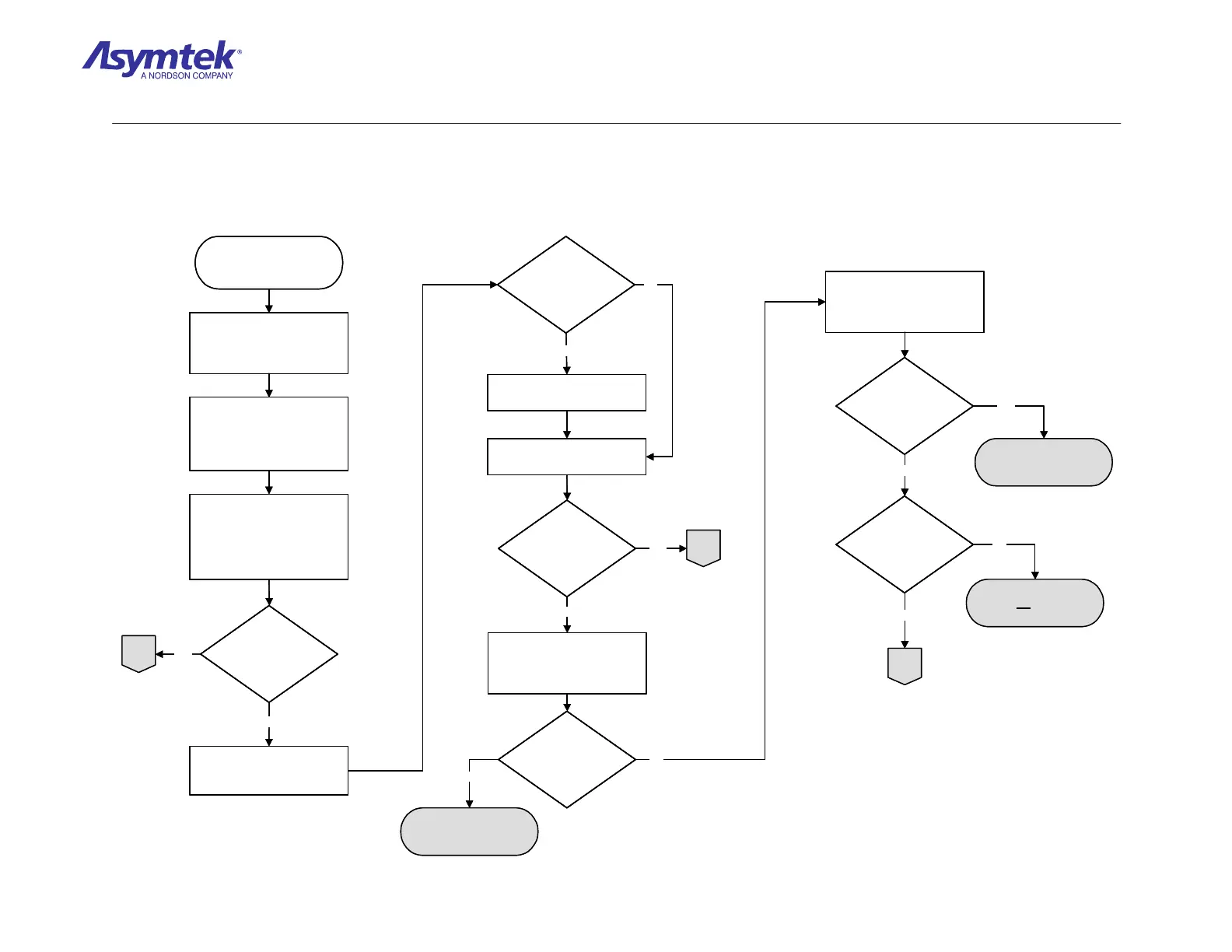

Diagram Sheet 4-8-3
Board Sensor Fault Isolation Procedure - Board Sensor Verification
