Nordson Asymtek X-1000 Series User Manual

Training Guide Course No. 196514
Level 2 Maintenance, X-1000 Series Dispensing Systems 2-30 P/N 196515 (Revision A)

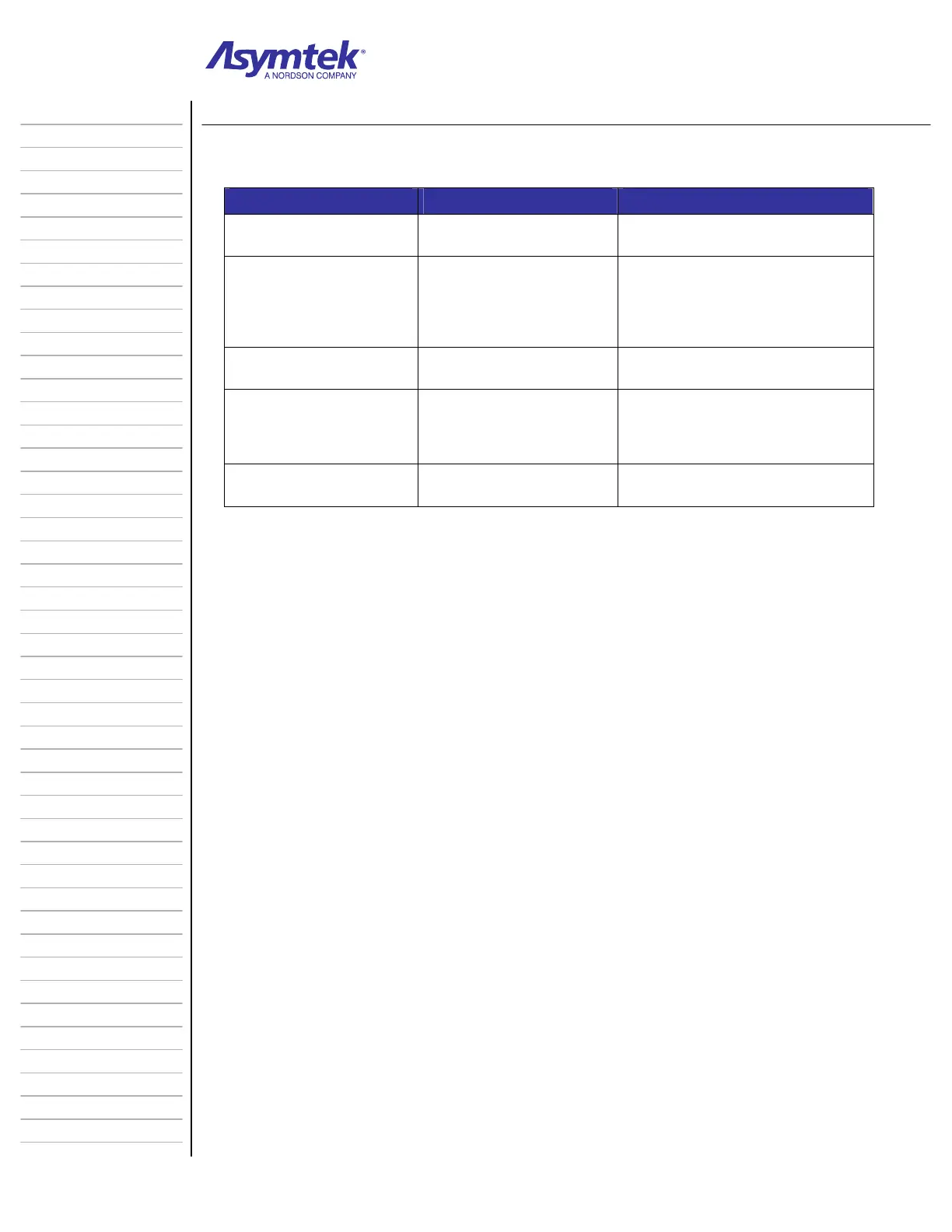

Table 2-4-1
Recommended Air Pressure Settings and Flowrates
Device Pressure/Flowrate Comments
Main Air Pressure Regulator 551 kPa (80 psi) Facility pressure is 586 to 620 kPa
(85 to 90 psi)
Fluid Air Pressure Regulator 206 to 275 kPa (30 to 40 psi) Depends on fluid being dispensed and
Dispensing Valve being used. Refer to
the Installation and Operations manual
applicable to the Valve on your
dispensing system.
Tooling Air Pressure
Regulator
275 kPa (40 psi)
Valve Air Pressure Regulator 482 kPa (70 psi),
approximate.
Depends on Dispensing Valve used.
Refer to the Installation and Operations
Manual applicable to the Dispensing
Valve on your dispensing system.
Impingement Flowmeters 113 L/min. (4.0 SCFM)
maximum
Depends on the design of the
Impingement Heater.
