Maintenance

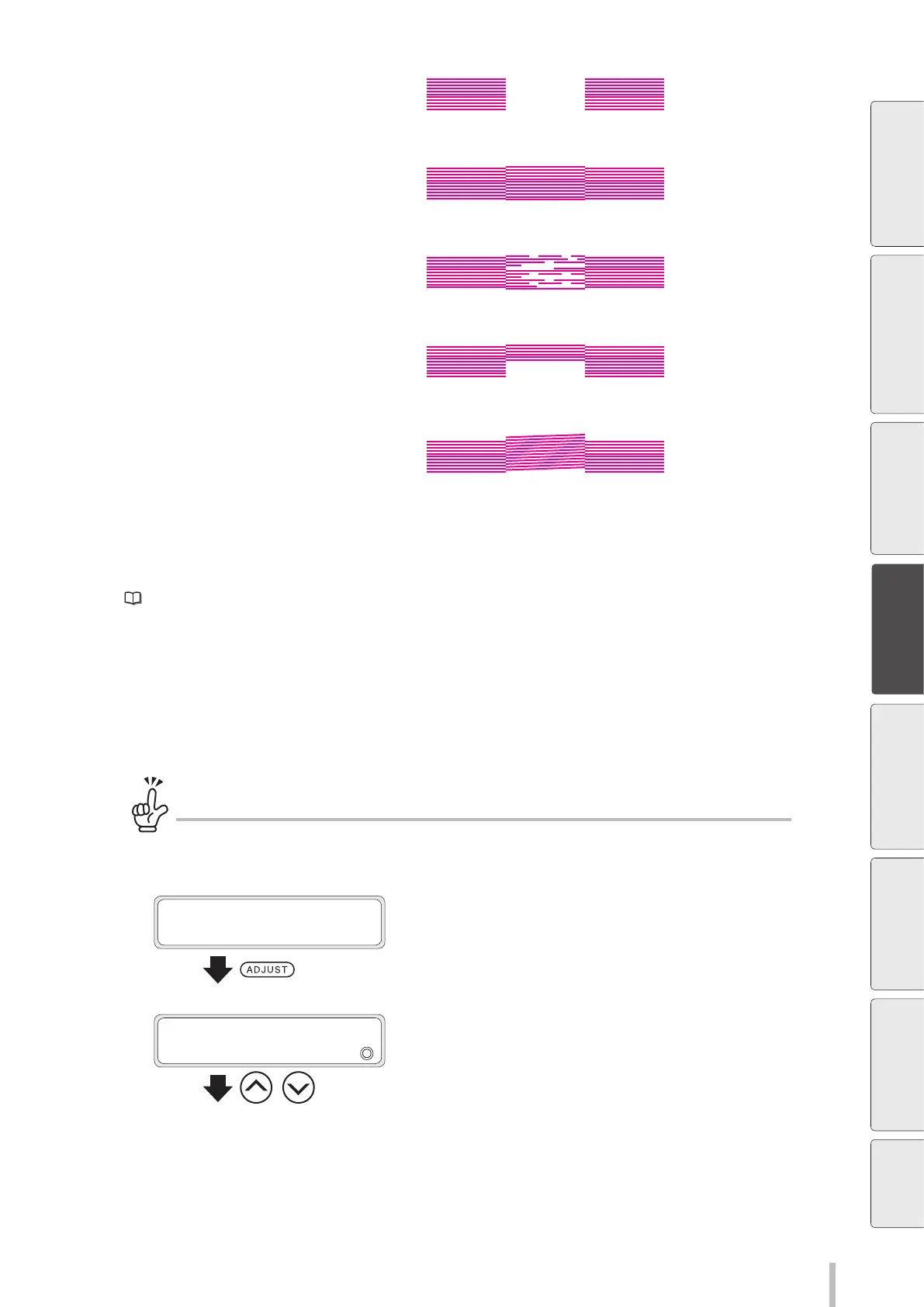

Completely clogged nozzle
Will be substituted.
105 106 107
Normal nozzle
Will not be substituted.
105 106 107
Partially clogged nozzle
Will be substituted or not depending on its condition.
105 106 107
g
Go to STEP 2
105 106 107
g
Go to STEP 2
Nozzle that does not eject ink straight
Will not be substituted.
105 106 107
g
Go to STEP 2
<STEP 2>
If there are defective nozzles that have not been set, add them manually as shown in manual conguration on
page 107.
In case there are nozzles that are always defective, you can set overwrite protection when selecting the nozzles
to always substitute them with other nozzles regardless of the detection results of automatic conguration.
Overwrite protection setting
VAR: Not overwrite protected
FIX: Overwrite protected

The numbers of defective nozzles are easier to nd while looking at the print result of automatic nozzle map
when setting the nozzles.
1
PRINTER READY
01: PAPER / 1626mm
Press the ADJUST button.
You can set up to 10 nozzle map parameters for each print
head.
2
ADJUST
2
MEDIA ADVANCE
,
Press the Up and Down buttons to select SET
NOZZLE MAP.
