Advanced operations
3
Plate

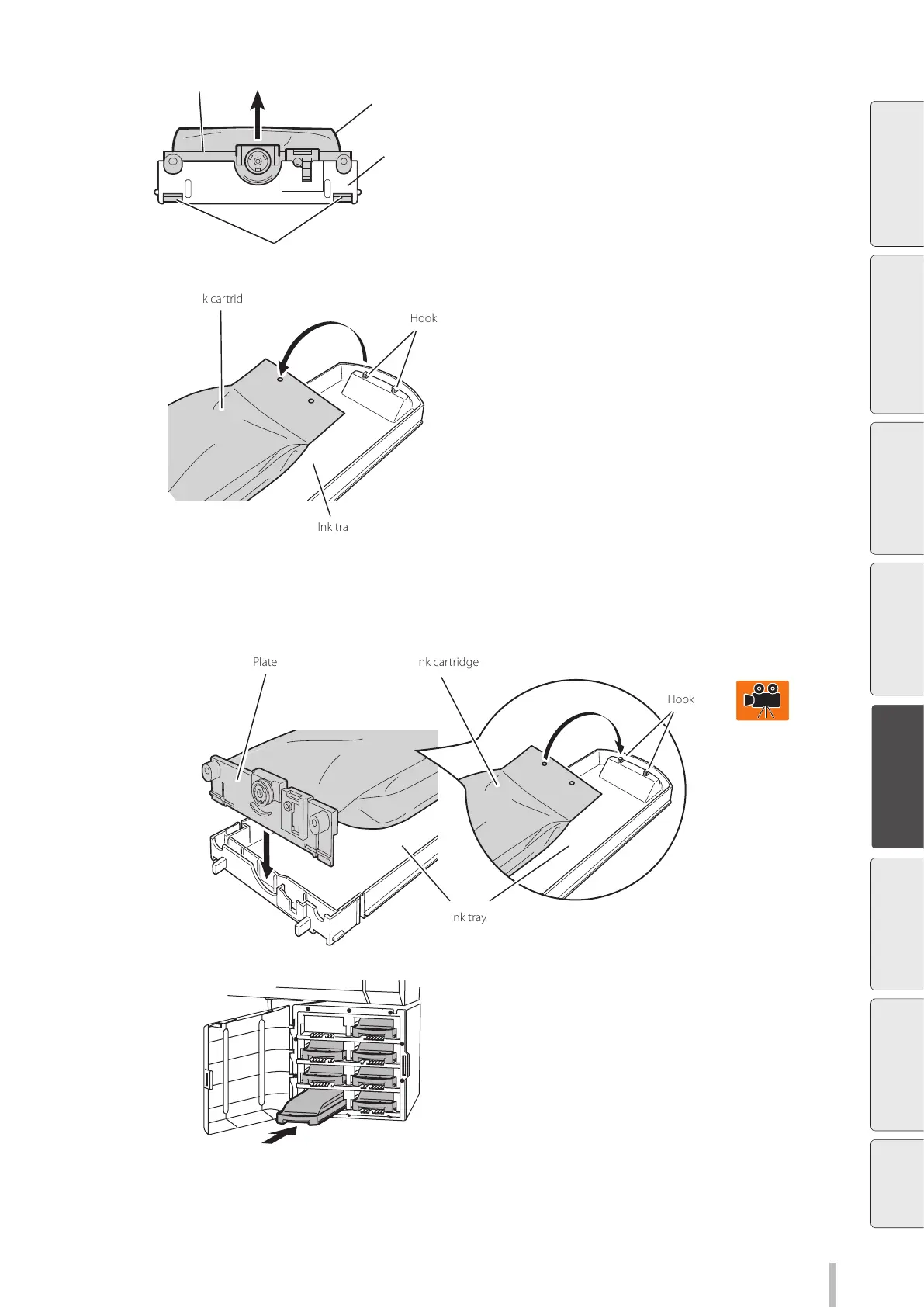

Push the two claws
Ink tray
Ink cartridge
(1)
If no ink cartridge is installed on the ink tray, go to the step
4
.
Remove the empty ink cartridge from the ink
tray.
(1) Push the two claws at the lower part of the the ink
cartridge's plate, and pull up the plate.
(2)
Ink cartridge
Hook
Ink tray
(2) Remove the ink cartridge from the hook of the ink tray.
4
Take a new ink cartridge out of the package and set it on the ink tray.
Hook the two holes (1) at the ink cartridge end on the ink tray’s two protrusions. Then insert the ink cartridge plate into the
ink tray until you hear a click (2).
New ink cartridgePlate
Ink tray
Hook
(1)
(2)
5
Insert the ink tray into the slot in the printer.
Insert the ink tray as far as it goes.
