XtraDrive User Manual Chapter 7: Using the Panel Operator
7-9

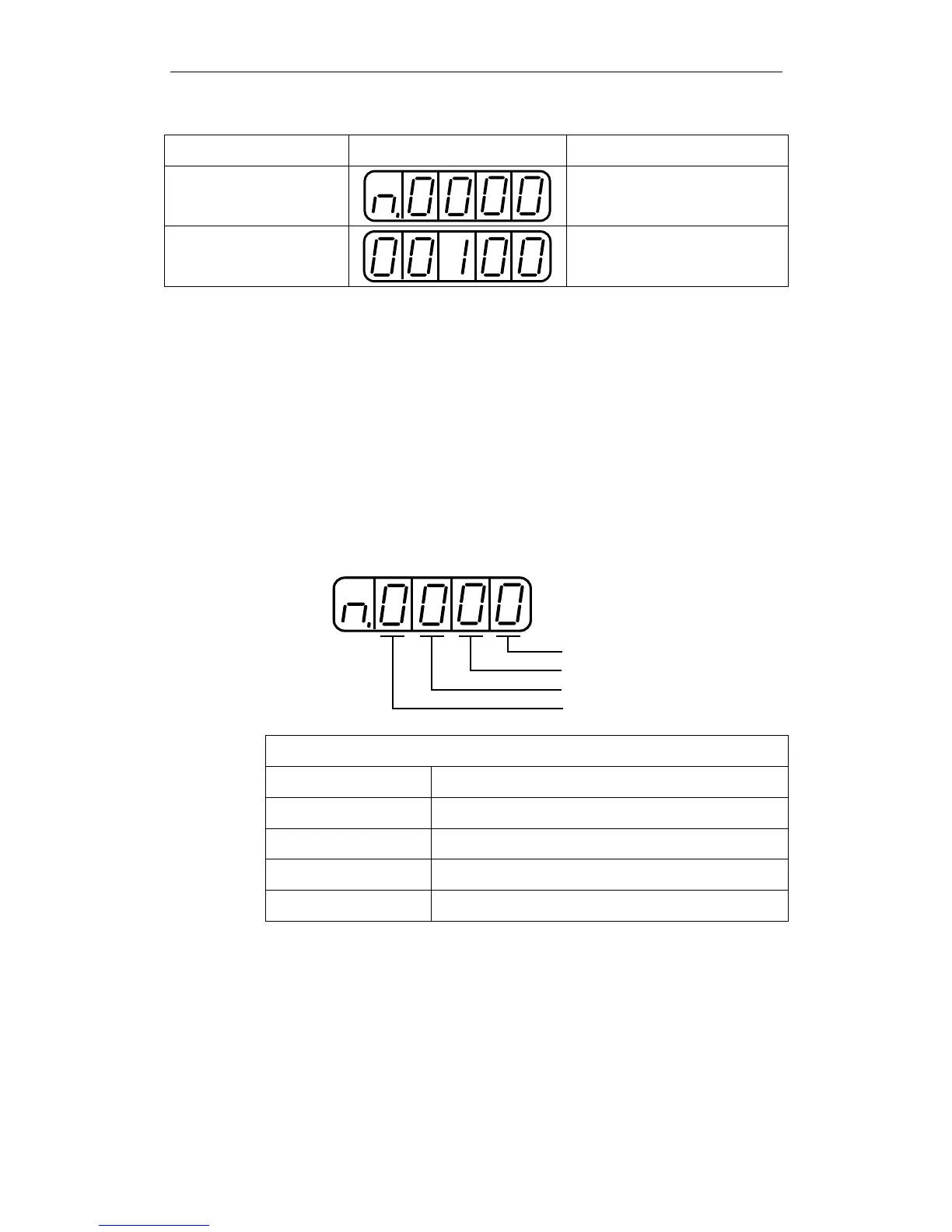

Parameter settings are displayed in two patterns as shown below.
Display Application Display Format
Function selection
Hexadecimal display for each digit
Parameter setting
Decimal display in five digits
Since each digit in the function selection parameters has its own
meaning, the value can only be changed for each individual digit. Each
digit can only display a value within its own permitted range.
Display Definition for Function Selection Parameters
Each digit of the function selection parameters has a unique meaning.
For example, the rightmost digit of parameter Pn000 is expressed as
“Pn000.0”.
• Each digit of the function selection parameters is defined as shown
below. The parameter displayed below shows how the digits in the
display are assigned.
0 digit
1st digit
2nd digit
3rd digit
Distribution of Parameter Digits
Designation Meaning
Pn000.0
Indicates the value entered at the 0 digit of parameter
Pn000.
Pn000.1
Indicates the value entered at the 1 digit of parameter
Pn000.
Pn000.2
Indicates the value entered at the 2 digit of parameter
Pn000.
Pn000.3
Indicates the value entered at the 3 digit of parameter
Pn000.
