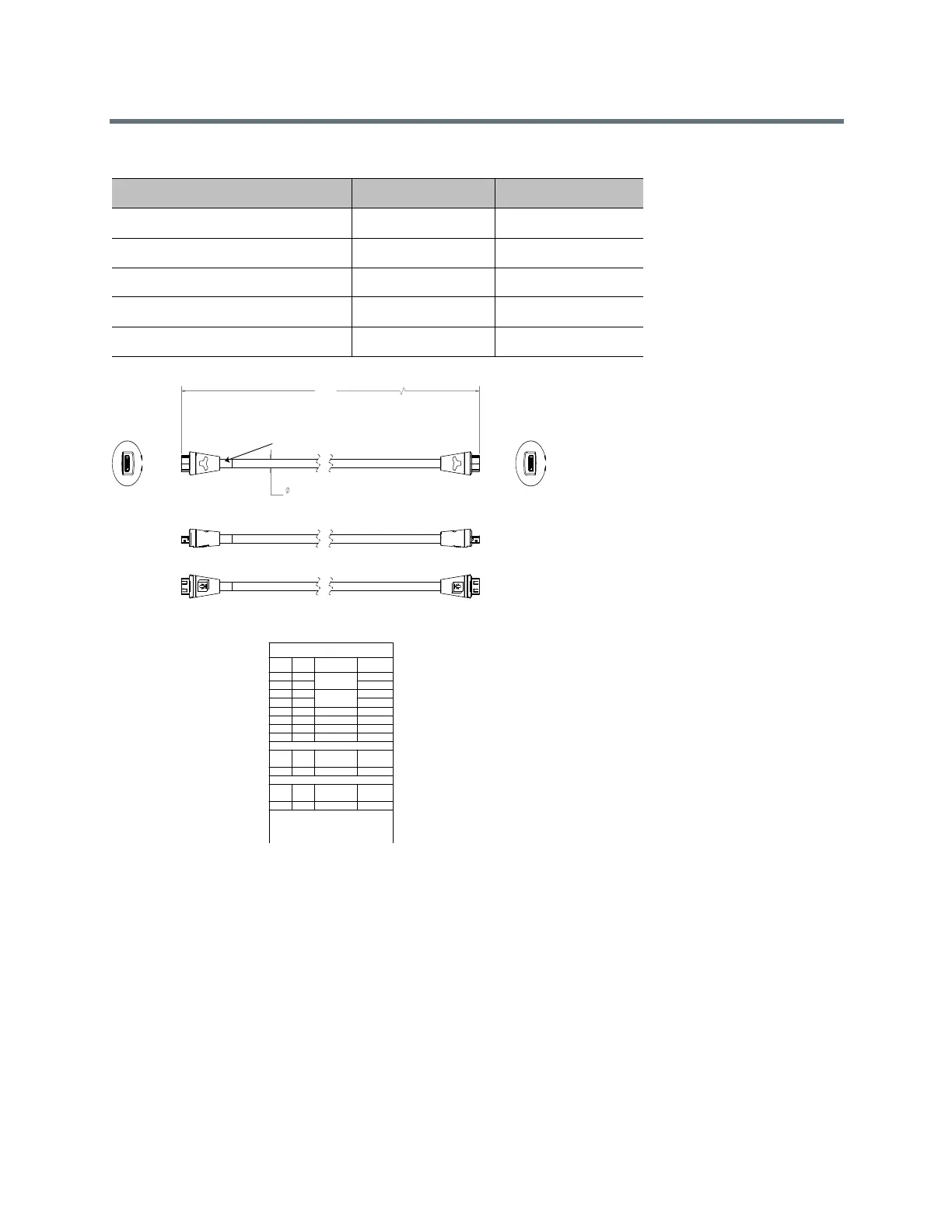

Polycom realpresence group series

Cables
Polycom, Inc. 90
Length Part Number RoHS Compliant
15 ft (4.6 m) 2457-23215-001 Yes
25 ft (7.6 m) 2457-23216-001 Yes
25 ft (7.6 m) 2457-23216-002 Yes
10 ft (3 m) 2457-28978-001 Yes
50 ft (15.24 m) 2457-29051-001 Yes
7600 ±50
5.5
SEE NOTE 6
A
P1
B
P2
WIRING LIST
P1 P2
CABLE
UNIT
CONDUCTOR
10 2
TWISTED
PAIR #1
1
14 6 2
210
TWISTED
PAIR #2
1
614 2
13 13
CONDUCTOR #1 -
99 CONDUCTOR #2 -
33 DRAIN -
SHIELD SHIELD SHIELD -
P1 P1
CABLE
UNIT
-
413 JUMPER #1 -
P2 P2
CABLE
UNIT
-
413 JUMPER #2 -
PINS 1, 5, 7, 8, 11 AND 12 OF
P1 & P2 ARE NOT USED AND SHALL BE
LEFT OPEN.
BROWN HEAT-SHRINK TUBINGBROWN HEAT-SHRINK TUBING
