Instrument Function
R&S
®
SMB100A
99Operating Manual 1407.0806.32 ─ 21
Tip: Click on a sensor to get quick information about the firmware version and whether
this sensor measures the peak of the signal.
Remote command:
SENSe<ch>[:POWer]:TYPE? on page 324
SENSe<ch>[:POWer]:SVERsion? on page 323
SENSe<ch>[:POWer]:SNUMber? on page 322
Update
Section "Update" provides access to the file system in order to select a file for an R&S
NRP sensor update (Button "Select NRP File"), the selected file is indicated to the left
of the button. On the left side, the sensor to be updated is selected.
Button "Run Update" starts the update.
Note: If the update is interrupted for example by accidental removal of the sensor dur-
ing the process, the button "Rescue" appears. Thus, you can restart the update proc-
ess.
Prerequisite is that no other sensor is connected to the instrument.
Refer to "How to update an R&S NRP sensor" on page 98 and "How to restart an inter-
rupted update of an R&S NRP sensor" on page 98 for detailed instructions.
Remote command:
n.a.

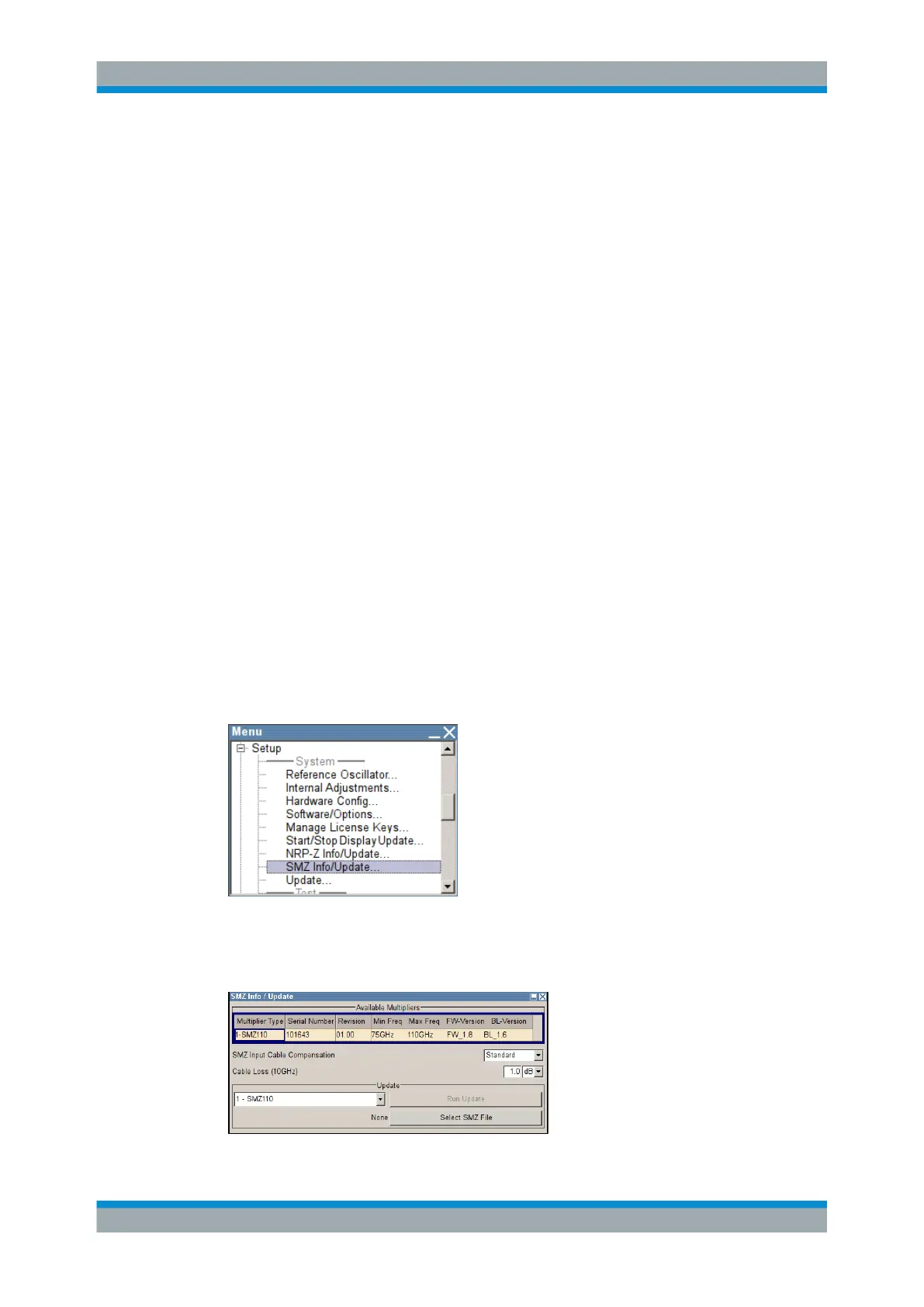

5.2.3.6 SMZ Info Update
The "SMZ Info/Update" dialog covers information on a connected frequency multiplier,
like type, serial number revision state, frequency range and firmware version. You can
directly perform an update of the multiplier firmware.
To access the "SMZ Info/Update" dialog, perform one of the following
●
On the front panel, press the SETUP key and select "SMZ > SMZ Info Update".
●
In the block diagram, select "RF Block > Configure > SMZ Info Update"
General Instrument Settings
