Instrument Function
R&S
®
SMB100A
187Operating Manual 1407.0806.32 ─ 21
Remote command:
[:SOURce<hw>]:SWEep:POWer:RETRace on page 427
Step - Level Sweep
Sets the step width for the individual sweep steps. This entry is effective for all sweep
modes.
With the level sweep, the logarithmic step width is a constant fraction of the current
level. This fraction is added to the current level. The logarithmic step width is entered in
dB.
Remote command:
[:SOURce<hw>]:SWEep:POWer:STEP[:LOGarithmic] on page 428
Dwell Time - Level Sweep
Enters the dwell time and determines the duration of the individual sweep steps.

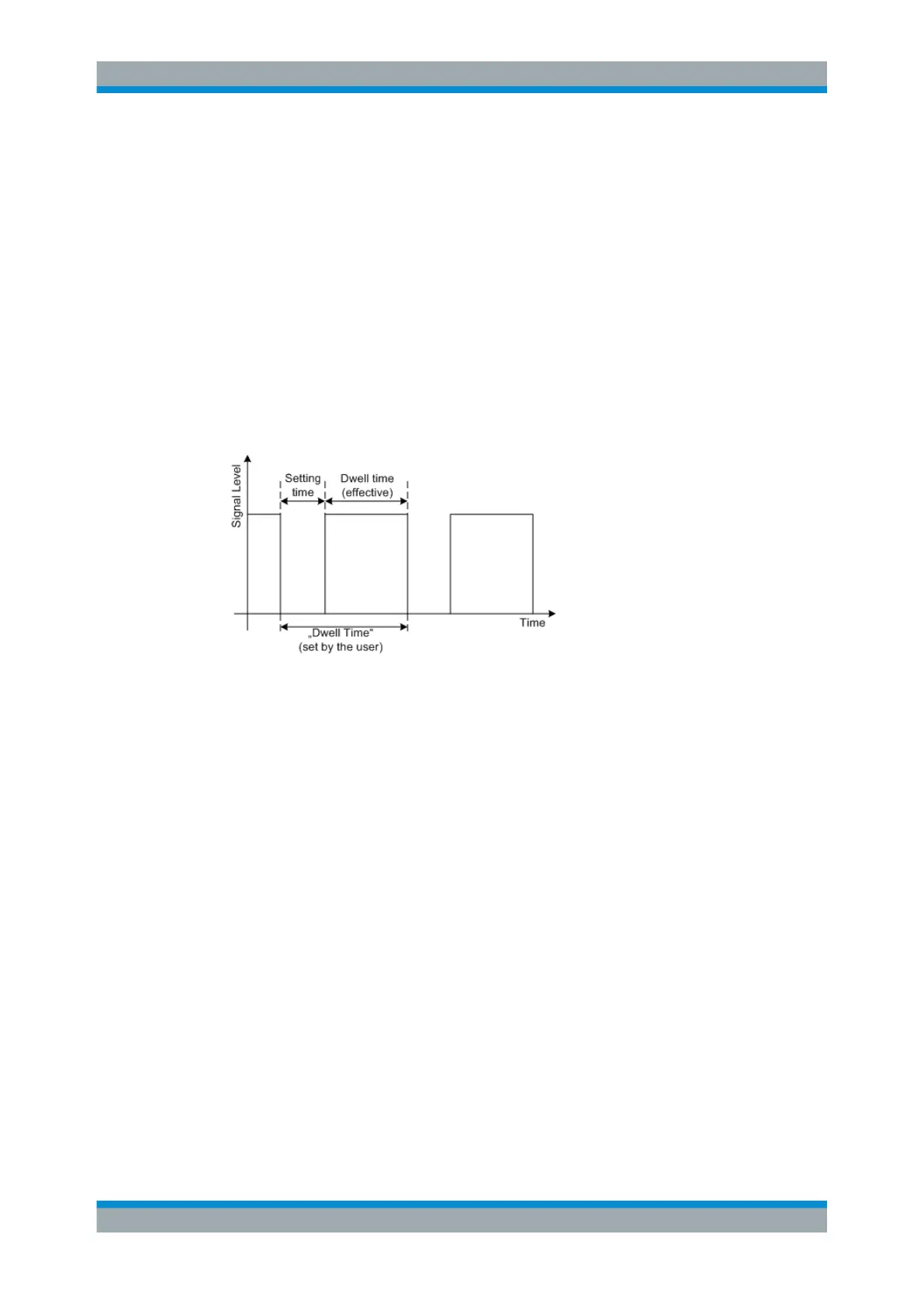

The "Dwell Time" set by the user is used as the step time of the sweep. The effective
net dwell time is shorter, reduced by the setting time. This setting time may be greater
than the time specified in the data sheet.
Note:
It is recommended to switch off the display update for optimum sweep performance
especially with short dwell times (see Chapter 5.2.3.7, "Display Update", on page 100).
Remote command:
[:SOURce<hw>]:SWEep:POWer:DWELl on page 425
Ext. Trigger Input Slope
Sets the polarity of the active slope of an externally applied instrument trigger.
This setting affects the INST TRIG input (BNC connector at the rear of the instrument).
"Positive"
activates the rising edge of the trigger signal.
"Negative"
activates the falling edge of the trigger signal.
Remote command:
[:SOURce]:INPut:TRIGger:SLOPe on page 348
5.3.7.4 List Mode
Similar to a sweep, a series of previously defined frequency and level points is pro-
cessed in List mode. In contrast to a sweep, however, a list with freely selectable value
