Instrument Function

R&S

SMB100A

123Operating Manual 1407.0806.32 ─ 21

Automatic Naming

Activates automatic generation of the file name. Automatic naming is configured in the

"Options…" sub dialog , see "File Options" on page 123.

Remote command:

:HCOPy:FILE[:NAME]:AUTO:STATe on page 301

File Info

Indicates the file name. The file name can be entered either manually via the file man-

ager (button "File…") or generated automatically (Automatic naming checkbox). Auto-

matic naming is configured in the "Options…" submenu.

Remote command:

:HCOPy:FILE[:NAME] on page 296

:HCOPy:FILE[:NAME]:AUTO:FILE? on page 297

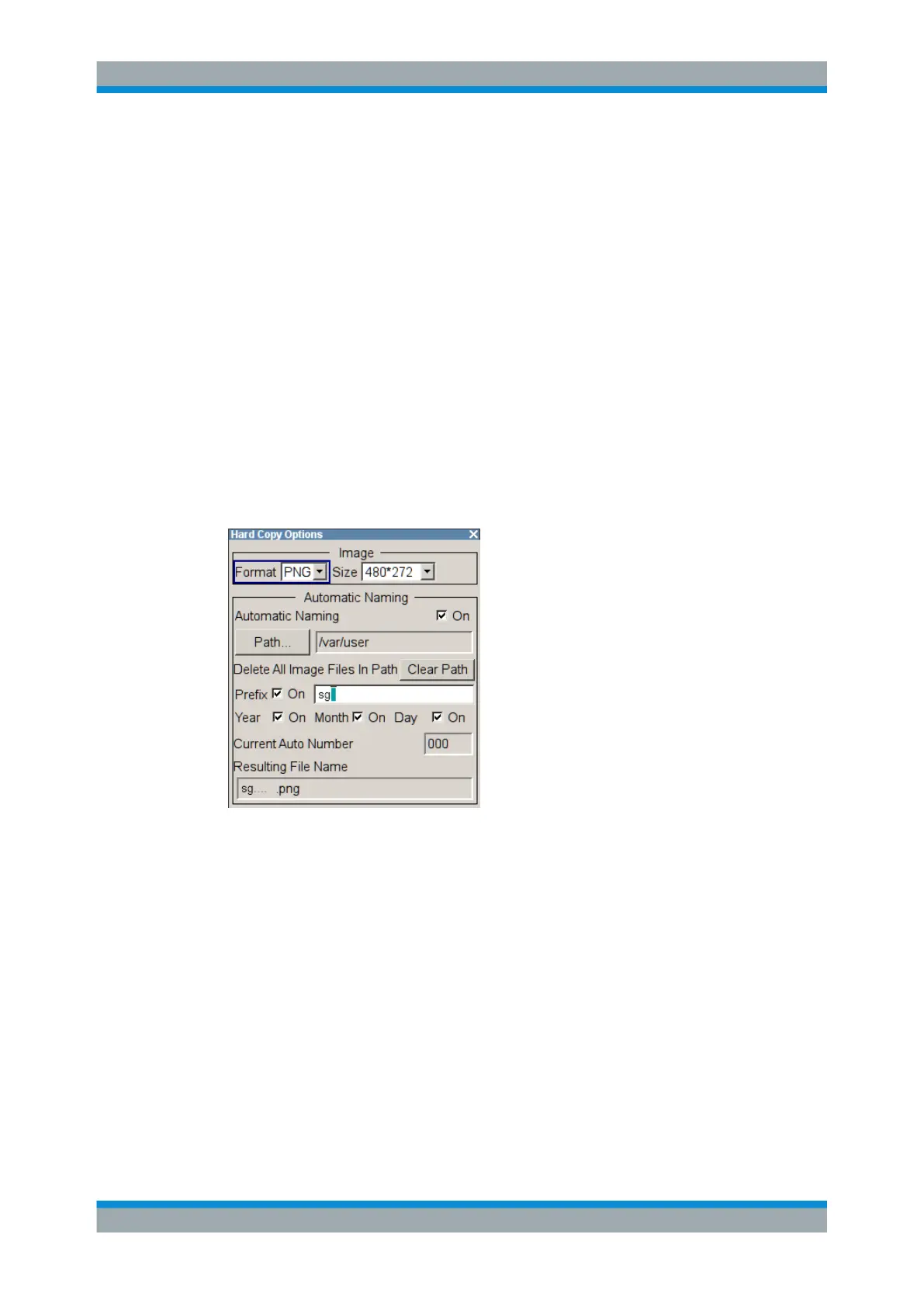

5.2.5.2 Hardcopy Options

This section describes the "Hardcopy Options" dialog.

File Options

Dialog for setting the file parameters.

"Format"

Selects the output file format, for example *.bmp,

*.jpg*.xpm*.png.

Remote command:

:HCOPy:IMAGe:FORMat on page 301

:HCOPy:DEVice:LANGuage on page 296

"Automatic

Naming"

If enabled, creates the output filenames automatically according to

rules following the activated components.

General Instrument Settings
