3.4 Example of Setup
This section provides an example on how to configure the instrument for generating of
an amplitude modulated signal.

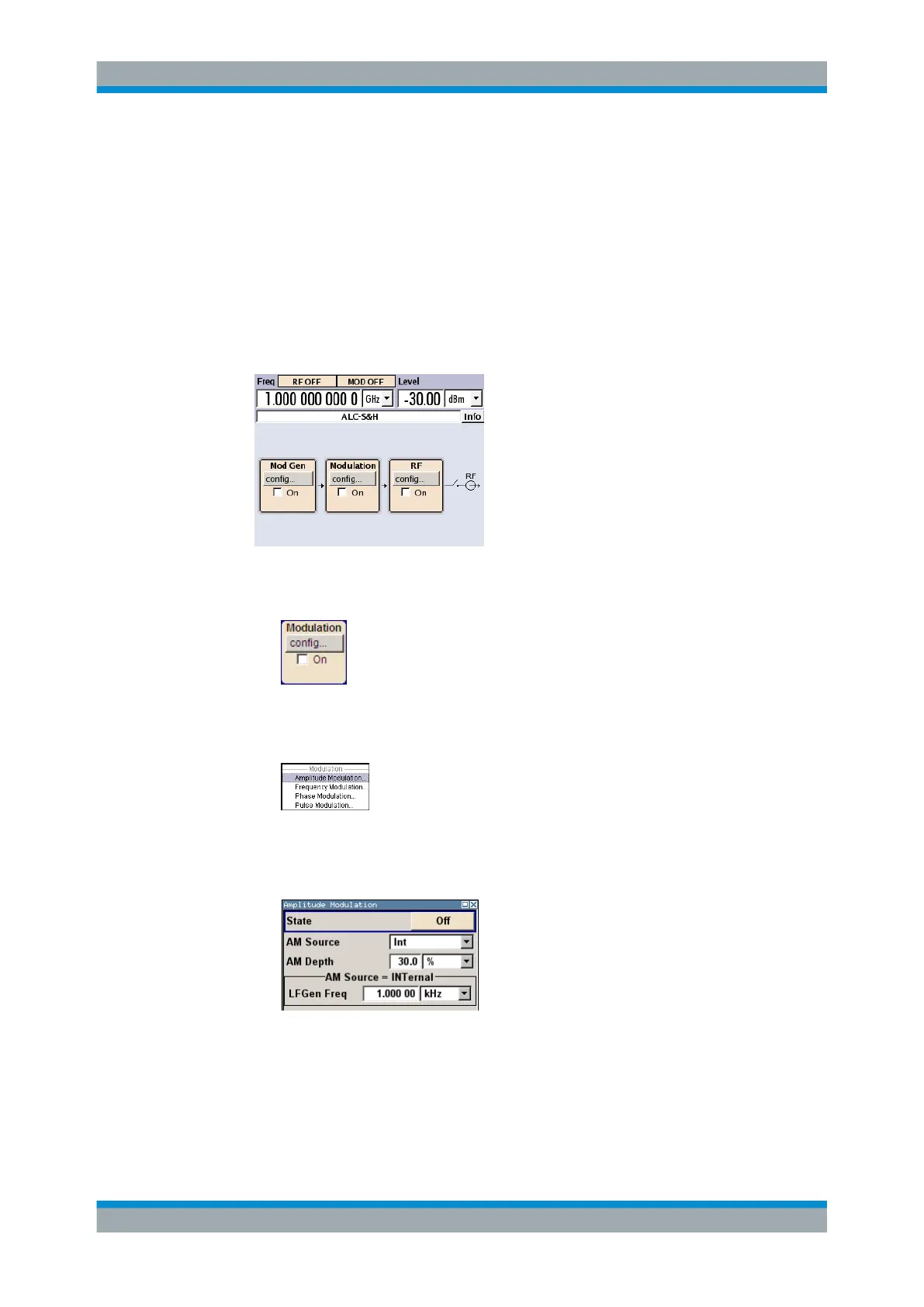

Generation of an Amplitude-Modulated Signal
To generate a simple AM-modulated signal, proceed as follow:
1. Activate default (preset) state
Press the PRESET key to set a defined instrument state.
2. Select and activate AM modulation
a) Turn the rotary knob and select the "Modulation" block.
b) Press the rotary knob to open the dialog where the modulation can be selected.
Note: Different modulation modes are available depending on the options
installed.
The "Amplitude Mod..." menu is the first menu and is highlighted per default.
c) Turn the rotary knob and highlight "Amplitude Mod...".
Press the rotary knob to open the "Amplitude Modulation" dialog.
Example of Setup
