Hardware Interfaces
R&S
®
SMB100A
490Operating Manual 1407.0806.32 ─ 21
Annex
A Hardware Interfaces
This section covers hardware related topics, like pin assignment of the GPIB bus inter-
face.
The remote control interfaces are described in detailes in Chapter 6, "Remote Control
Basics", on page 235.
All other interfaces are described in sections "Legend of Front Planel" and "Legend of
Rear Panel" in the Quick Start Guide.
For specifications refer to the data sheet.
A.1 GPIB Bus Interface
Pin assignment

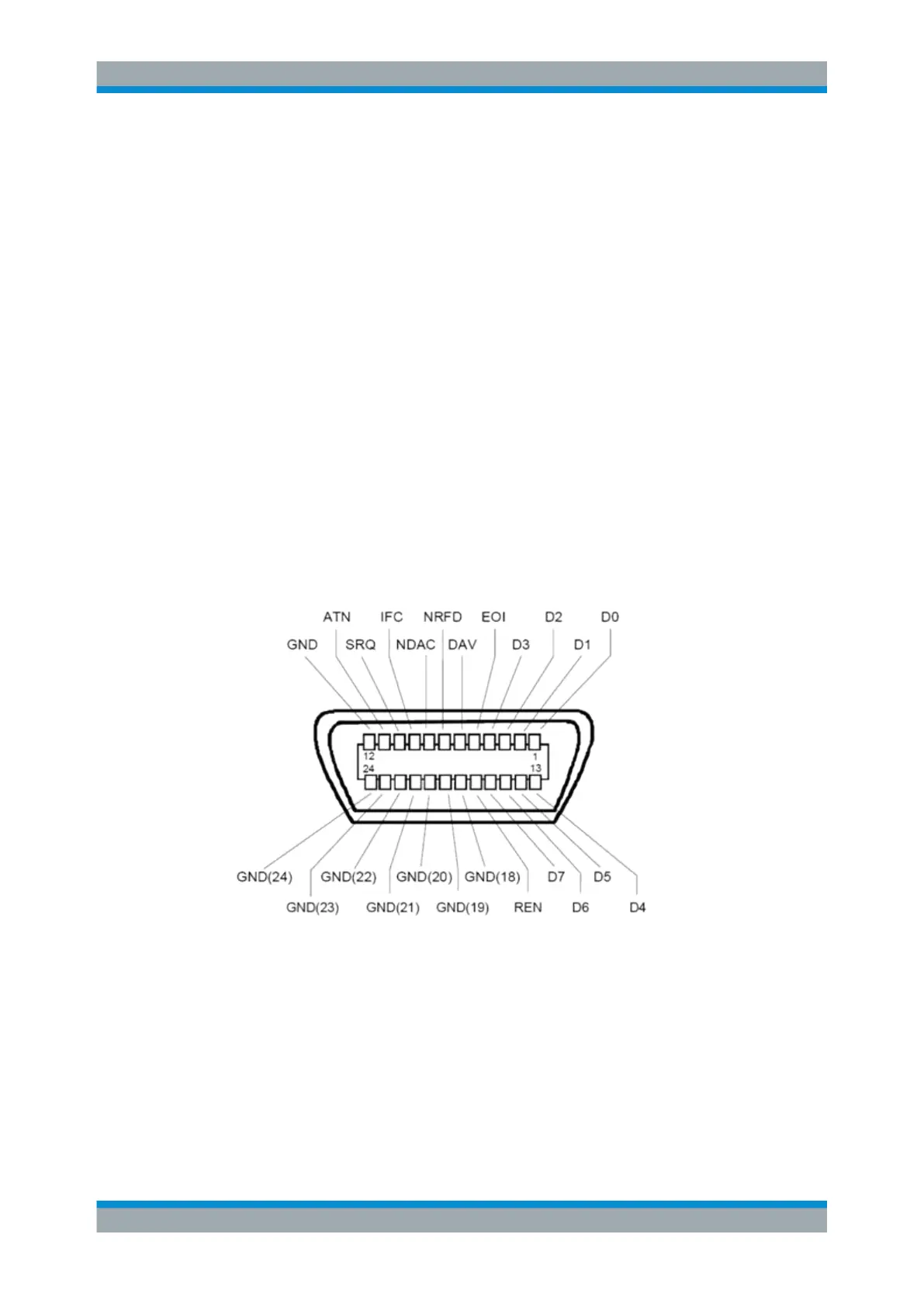

Figure A-1: Pin assignment of GPIB bus interface
Bus lines
Data bus with 8 lines D0 to D7:
The transmission is bit-parallel and byte-serial in the ASCII/ISO code. D0 is the
least significant bit, D7 the most significant bit.
Control bus with five lines:
GPIB Bus Interface
